Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) .
  2. Remove the front wheel house liner. Refer to Front Wheelhouse Liner Replacement (Non V-Series)Front Wheelhouse Liner Replacement (V-Series) .

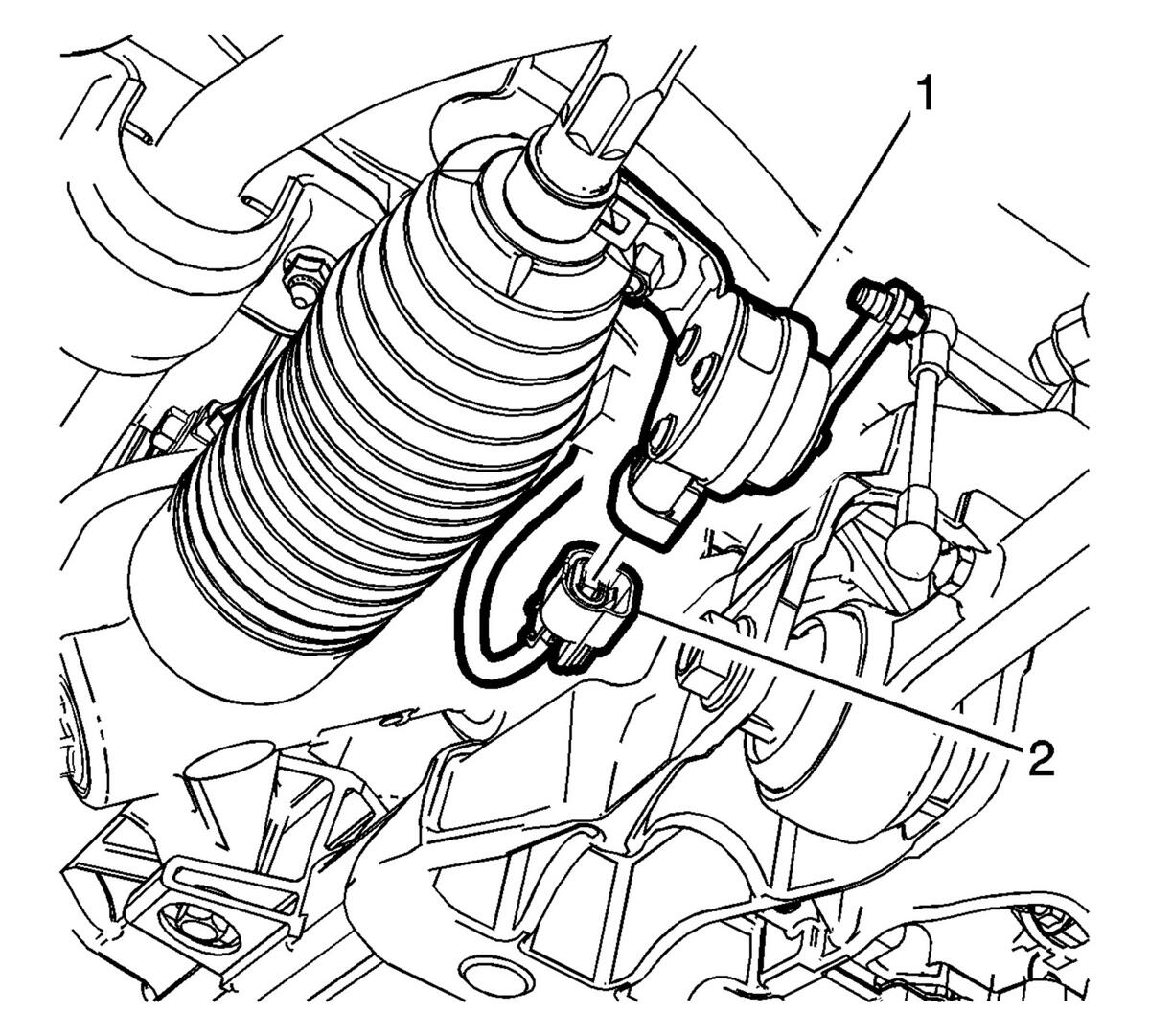

    3. Fig 1: Electronic Level Sensor & Electrical Connector
    GM2868517Courtesy of GENERAL MOTORS COMPANY
  3. Disconnect the electrical connector (2) from the electronic level sensor (1).

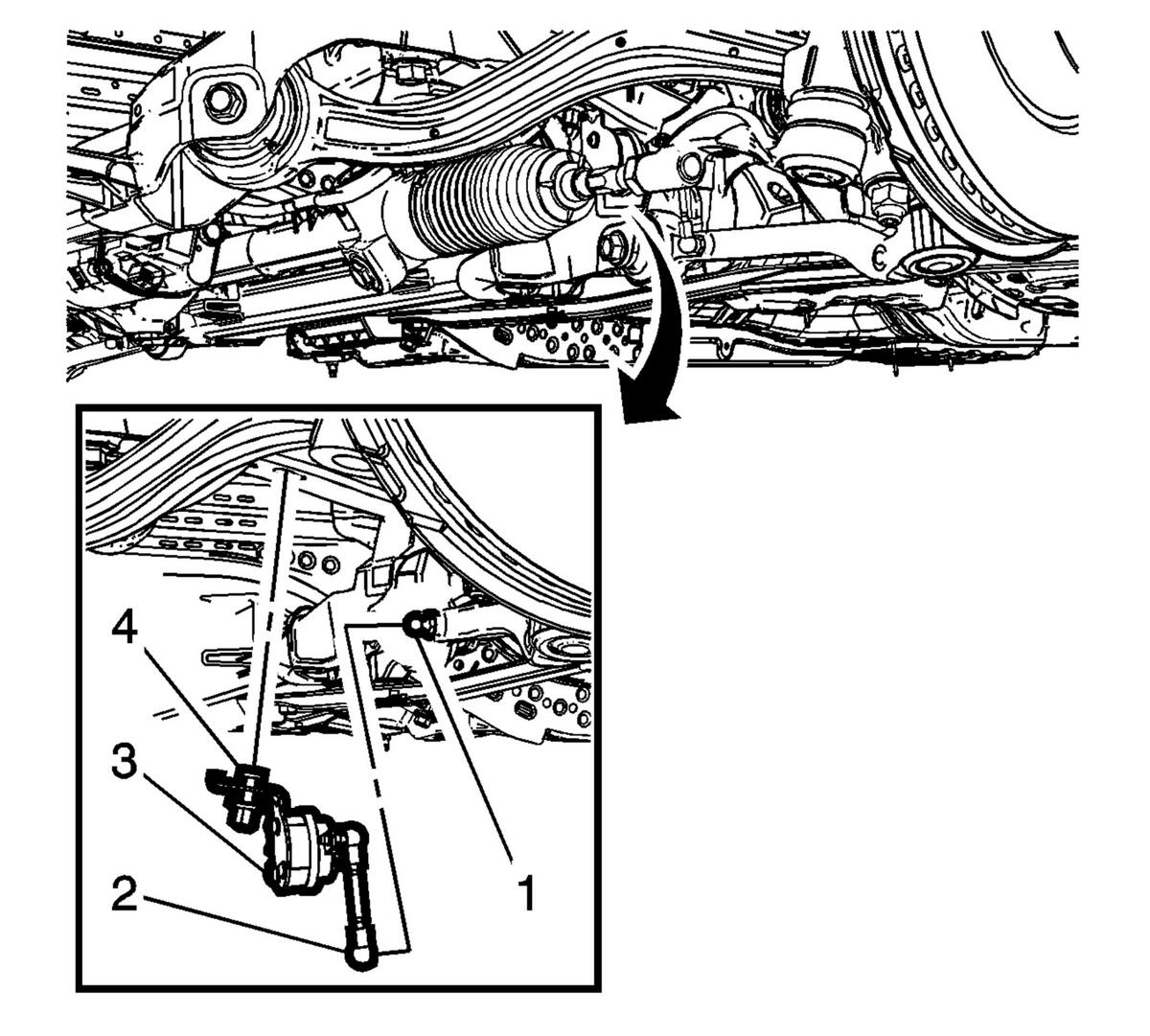

    4. Fig 2: Level Sensor & Related Components
    GM2868527Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect the level sensor link (2) from the lower control arm ball stud (1).
  5. Loosen the level sensor nut (4).
  6. Remove the level sensor (3) from the frame rail.
