F6UA, F13UA, F19UA, F20UA, F27UA, F28UA, F29UA and F33UA Fuses

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

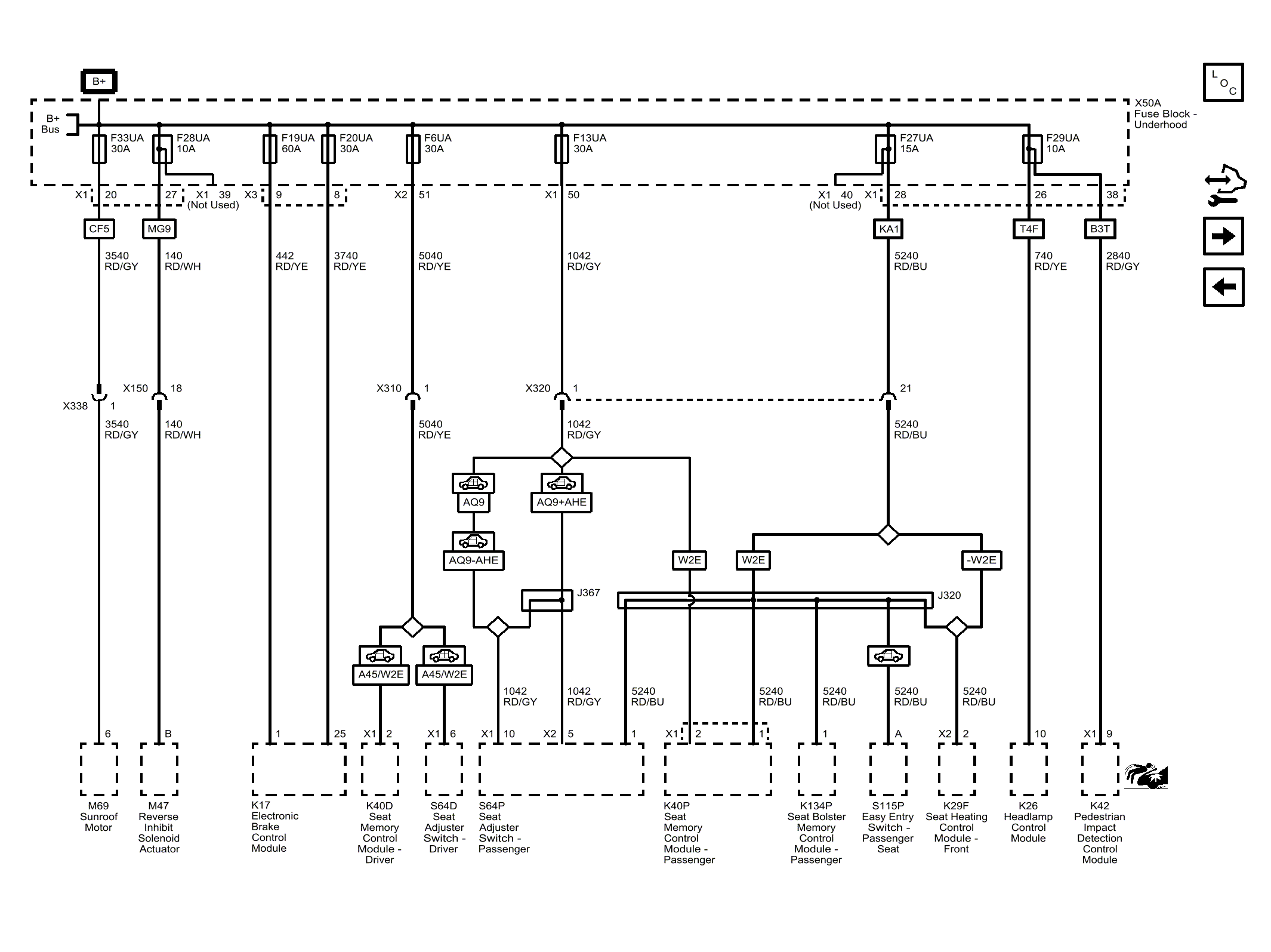

Fig 1: F6UA, F13UA, F19UA, F20UA, F27UA, F28UA, F29UA and F33UA Fuses
GM4491903Courtesy of GENERAL MOTORS COMPANY
