F49UA, F51UA, F52UA and F68UA Fuses

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

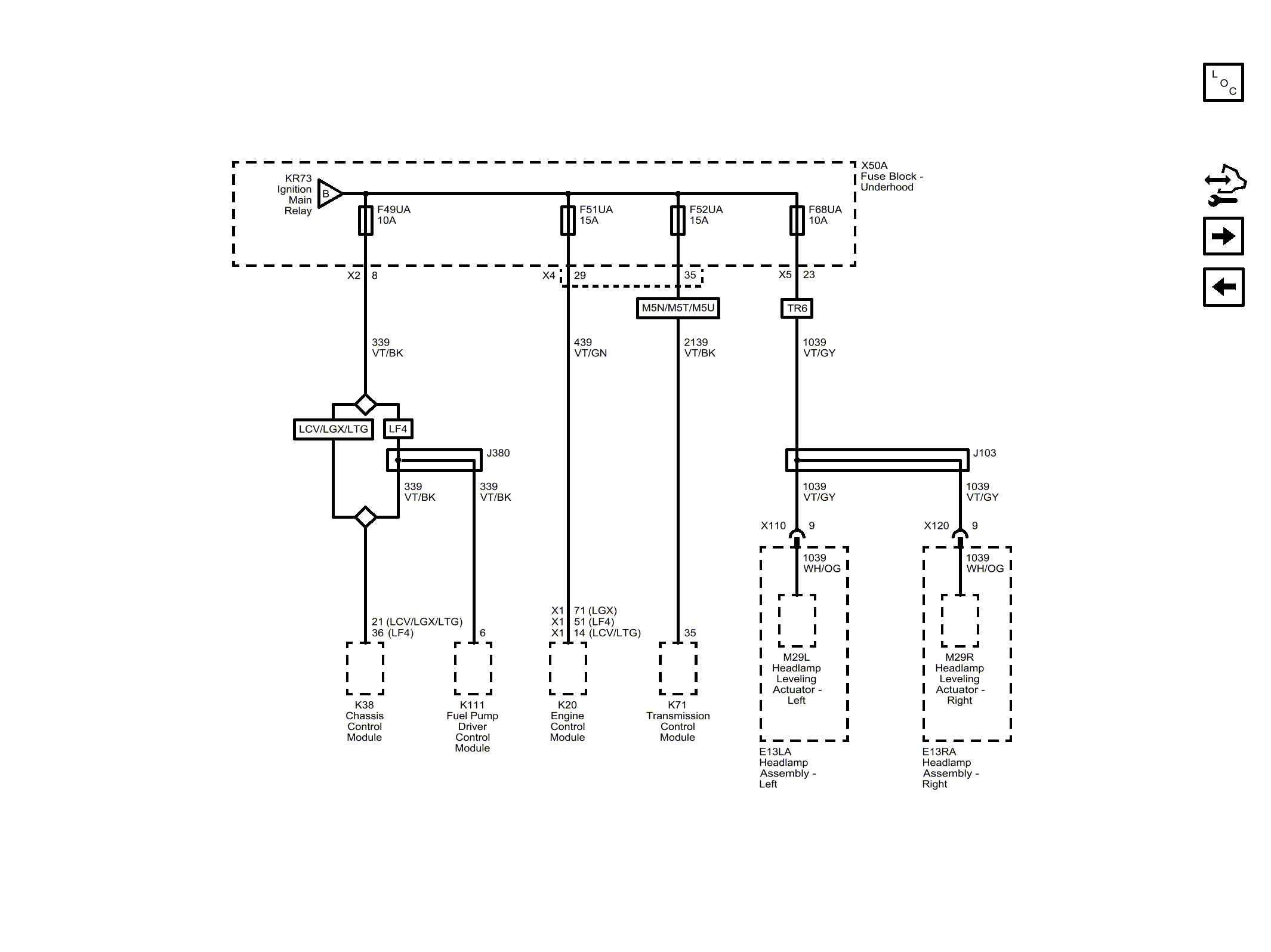

Fig 1: F49UA, F51UA, F52UA and F68UA Fuses
GM4491911Courtesy of GENERAL MOTORS COMPANY
