Section 210 (Wiring Schematics - Power Distribution Schematics)
>>
Schematic Wiring Diagrams
>>
Power Distribution Wiring Schematics
>>
F38UA, F39UA, F40UA, F41UA and F42UA Fuses (LGX)
F38UA, F39UA, F40UA, F41UA and F42UA Fuses (LGX)
WARNING:
This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

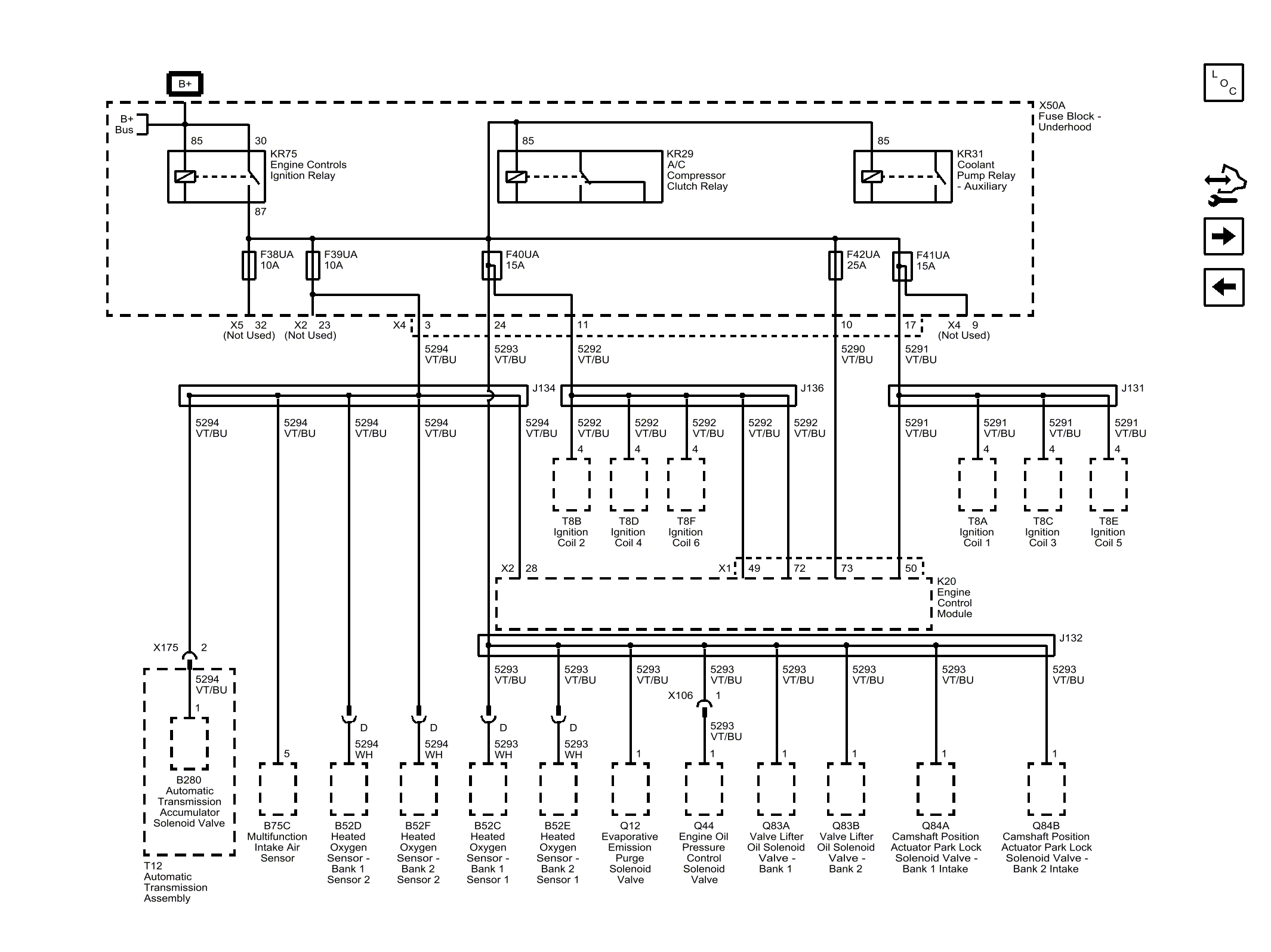

Fig 1: F38UA, F39UA, F40UA, F41UA and F42UA Fuses (LGX)
Courtesy of GENERAL MOTORS COMPANY
