F2RA, F3RA, F4RA, F5RA, F6RA, F8RA, F13RA, F14RA, F24RA, F30RA, F43RA, F45RA and F46RA Fuses

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

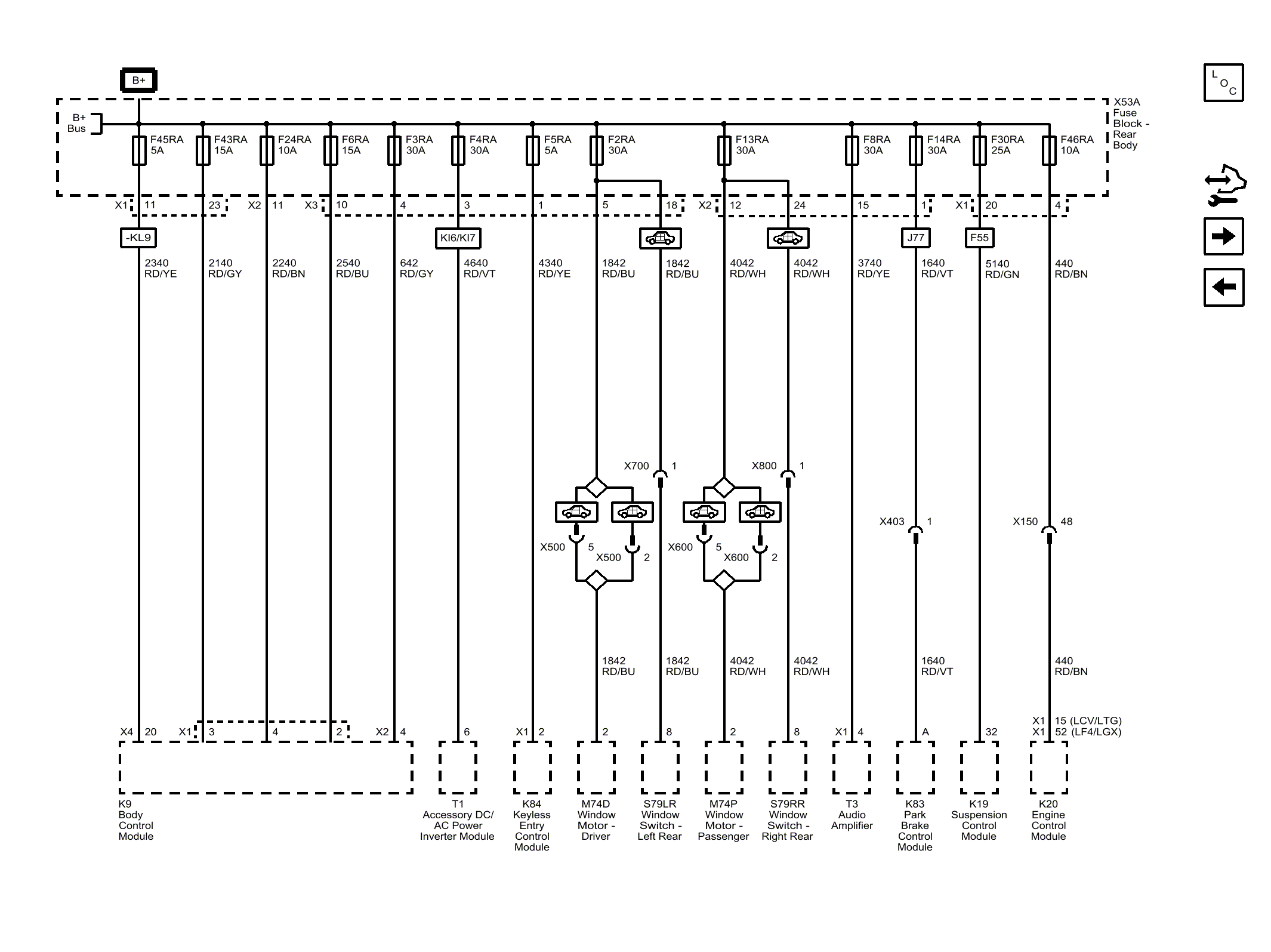

Fig 1: F2RA, F3RA, F4RA, F5RA, F6RA, F8RA, F13RA, F14RA, F24RA, F30RA, F43RA, F45RA and F46RA Fuses
GM4492192Courtesy of GENERAL MOTORS COMPANY
