F17UA, F53UA, F69UA, F73UA and F75UA Fuses

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

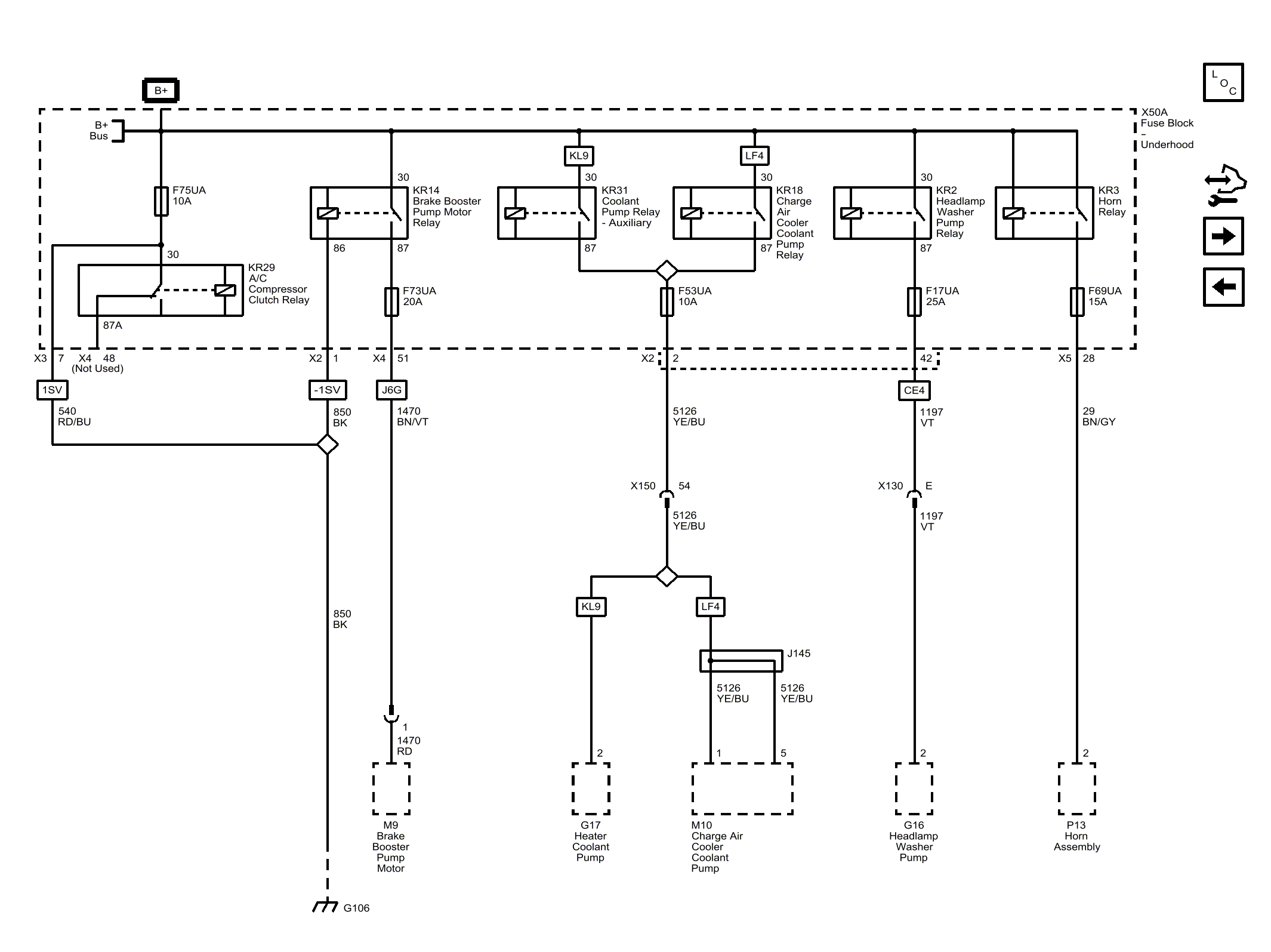

Fig 1: F17UA, F53UA, F69UA, F73UA and F75UA Fuses
GM4491907Courtesy of GENERAL MOTORS COMPANY
