F12RA, F19RA, F27RA, F31RA, F32RA and F34RA Fuses

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

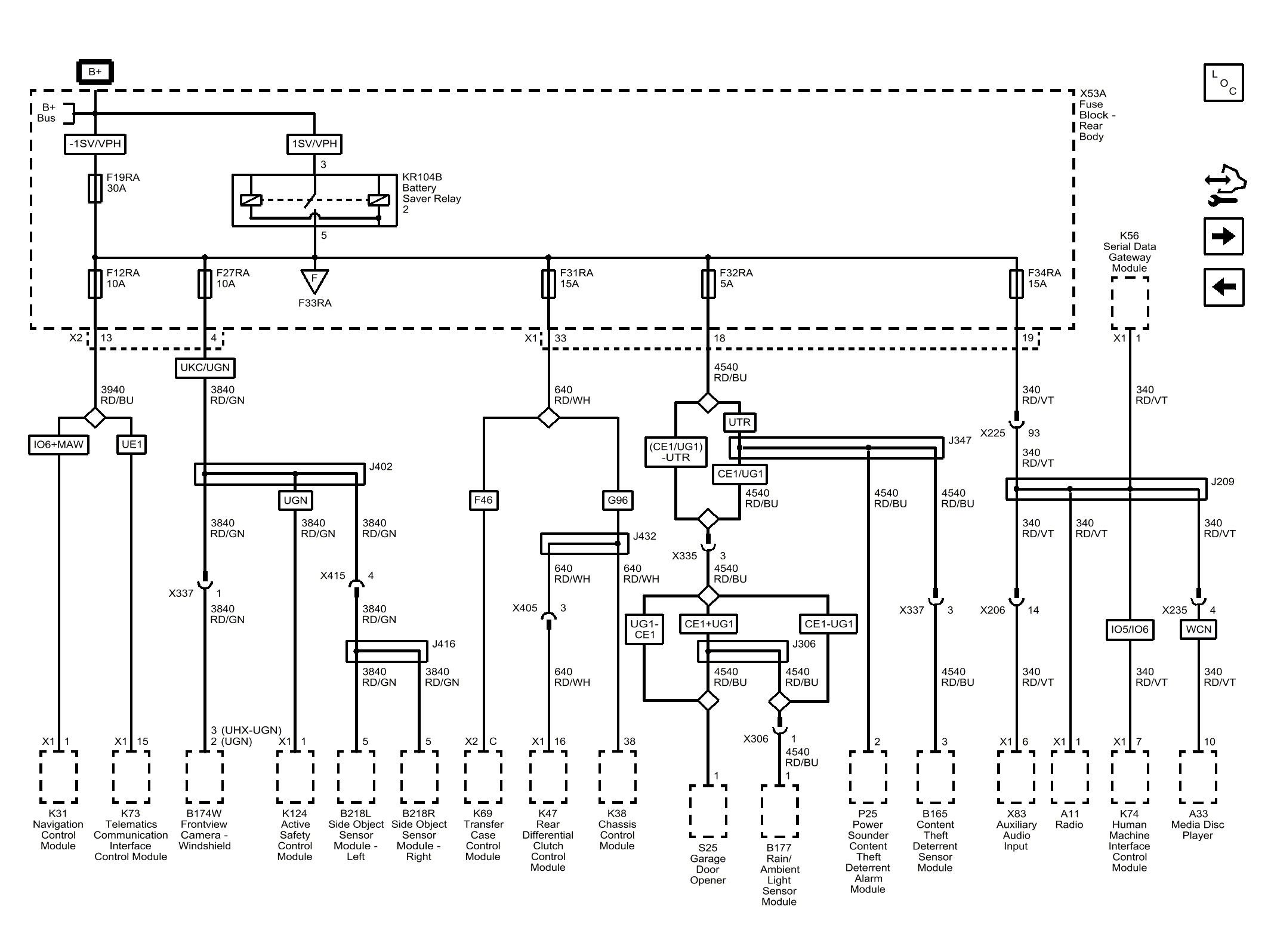

Fig 1: F12RA, F19RA, F27RA, F31RA, F32RA and F34RA Fuses
GM4492211Courtesy of GENERAL MOTORS COMPANY
