B+ Bus - X53A Fuse Block - Rear Body

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

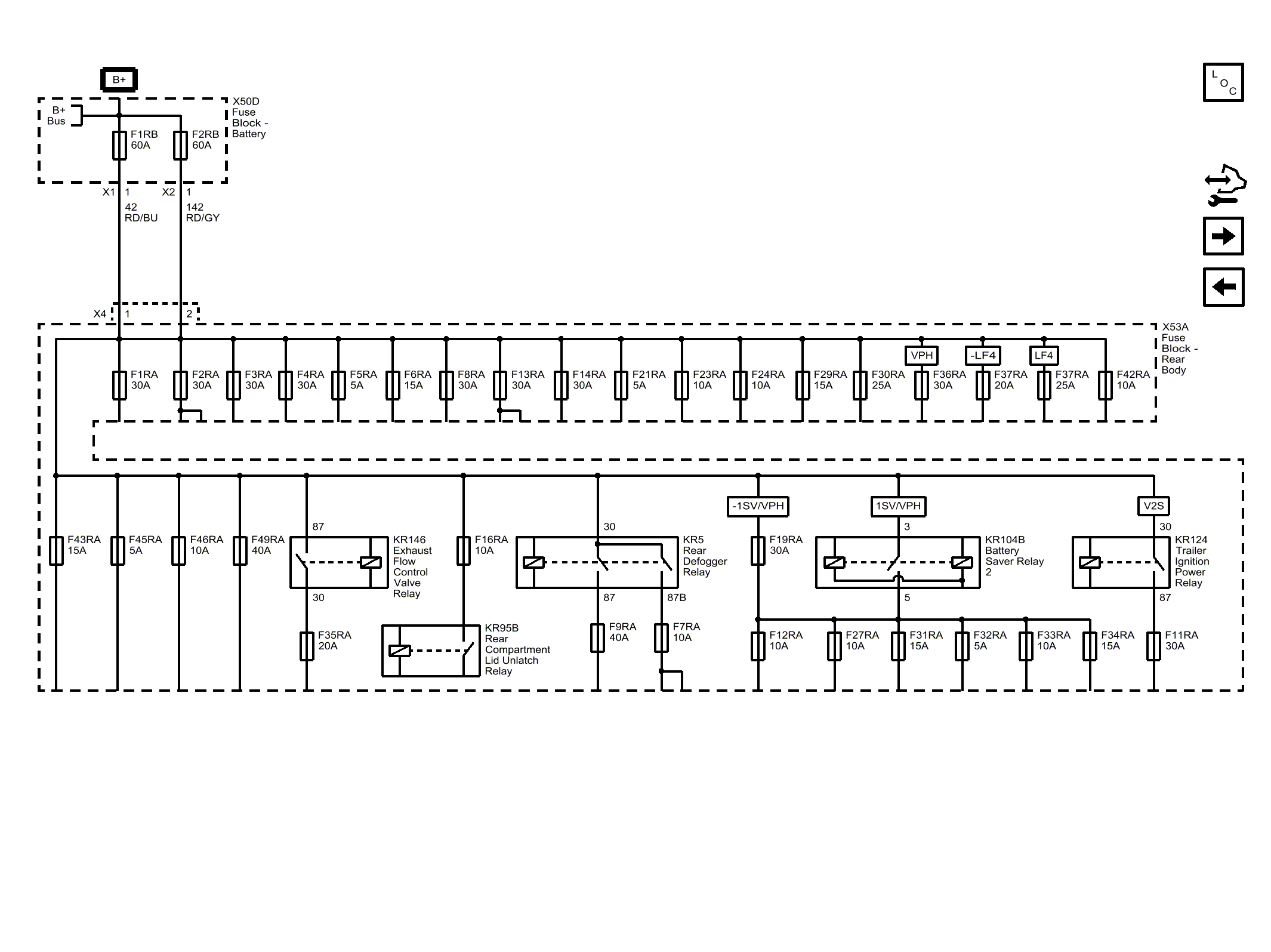

Fig 1: B+ Bus - X53A Fuse Block - Rear Body
GM4491920Courtesy of GENERAL MOTORS COMPANY
