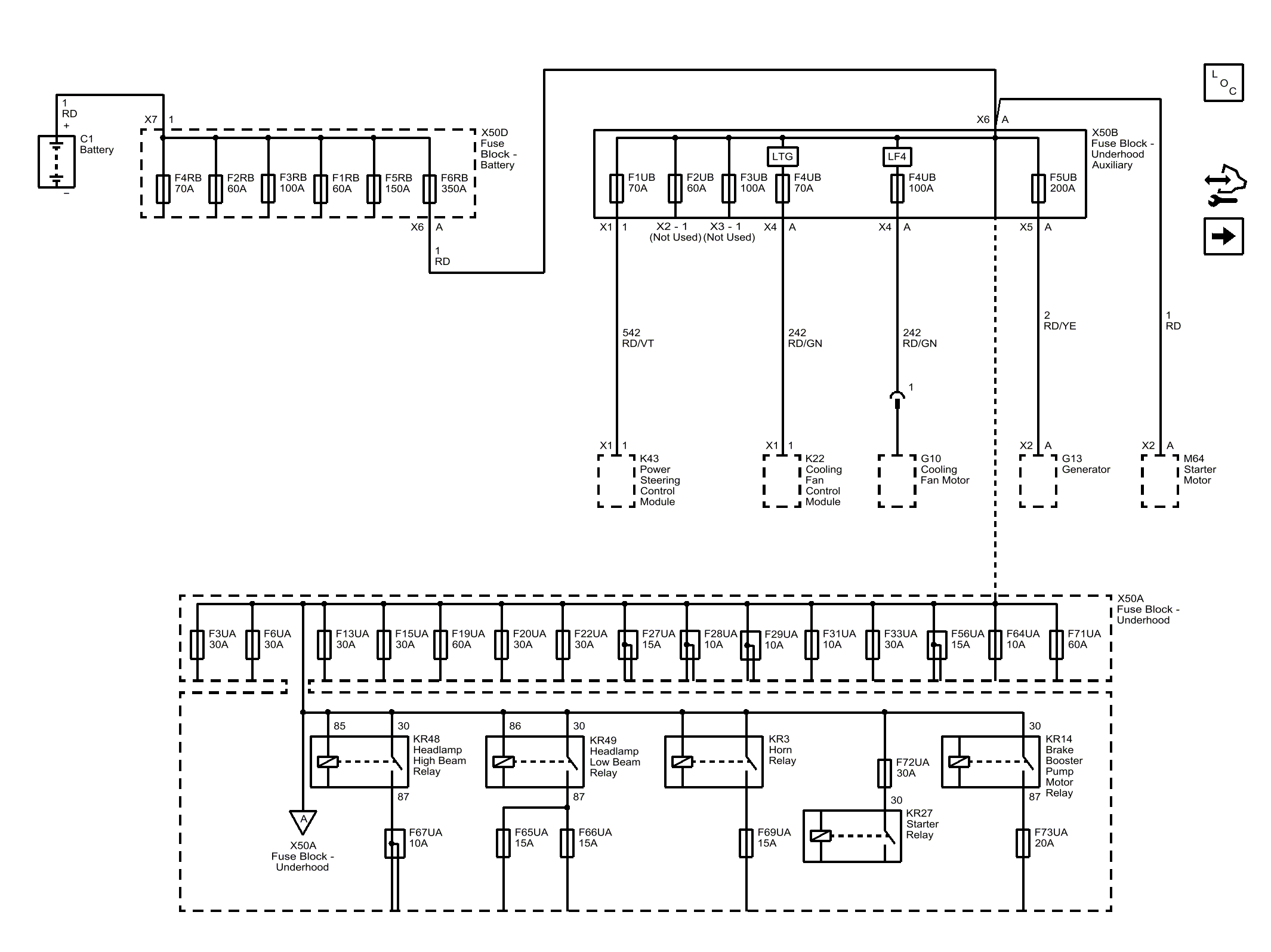

B+ Bus - Fuse Block - Underhood (-KL9) (1 of 2)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
