X50B Fuse Block - Underhood Auxiliary X6 (Battery Positive Body) X6
WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
|
|

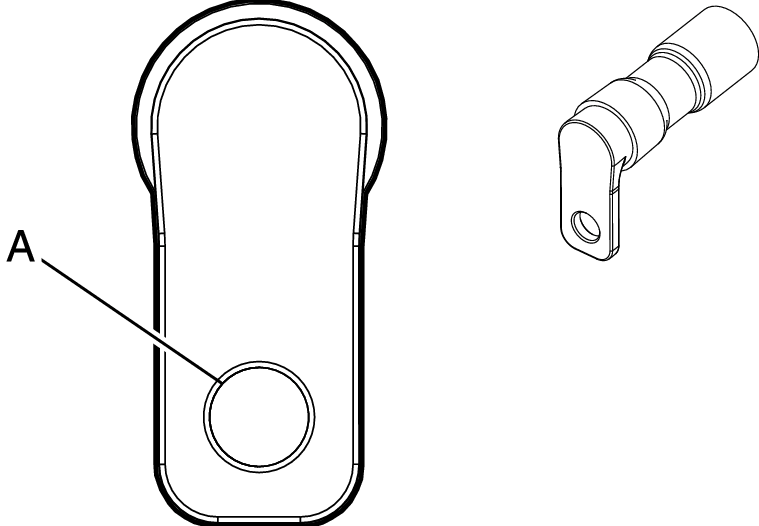

Connector Part Information
- Harness Type: Battery Positive Body
- OEM Connector: 22798
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 1-Way Ring Terminal (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
No Tool Required |
No Tool Required |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
70 |
RD |
1 |
Unfused Battery Positive Voltage |
I |
- |
