Installation Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

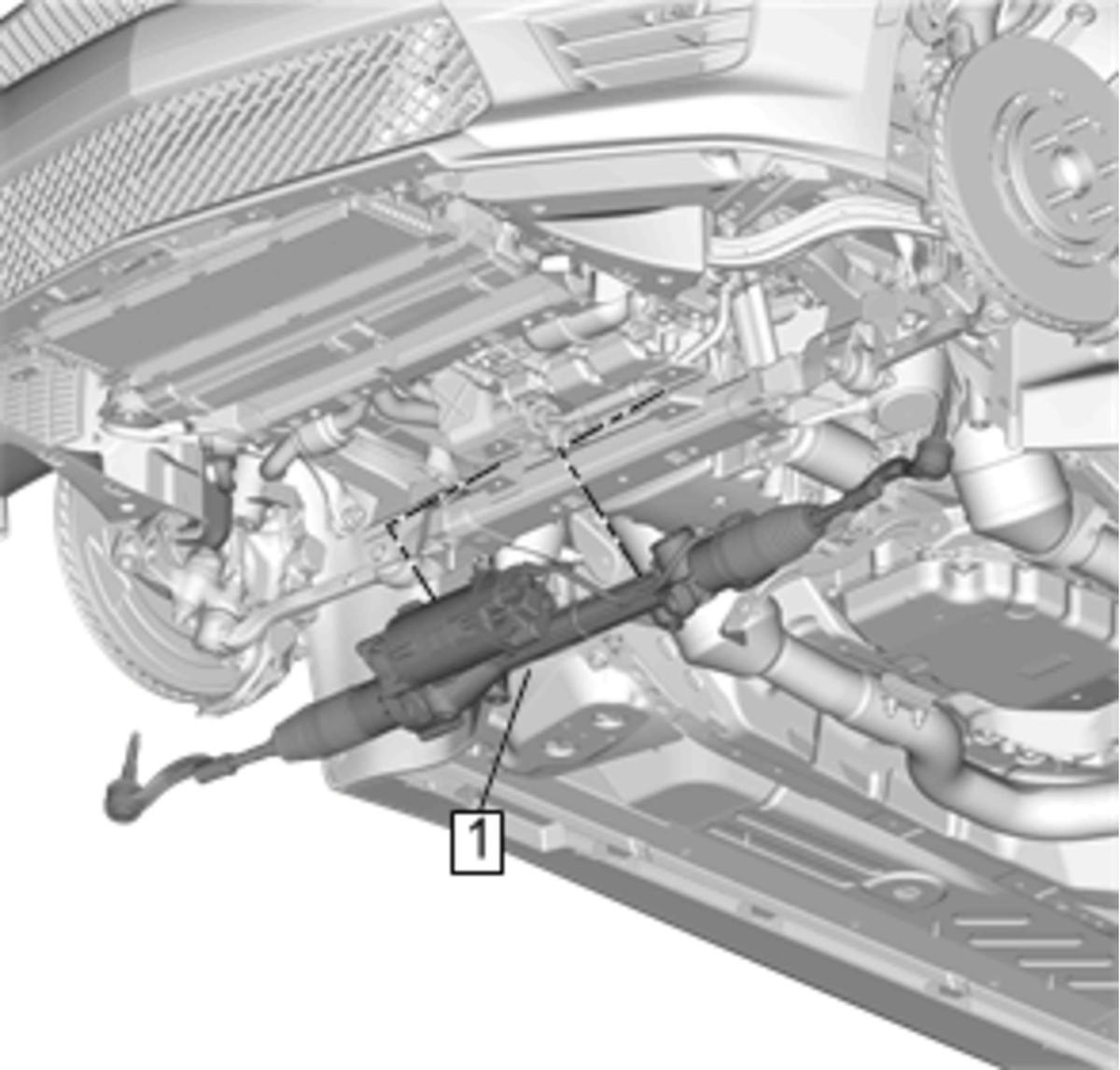

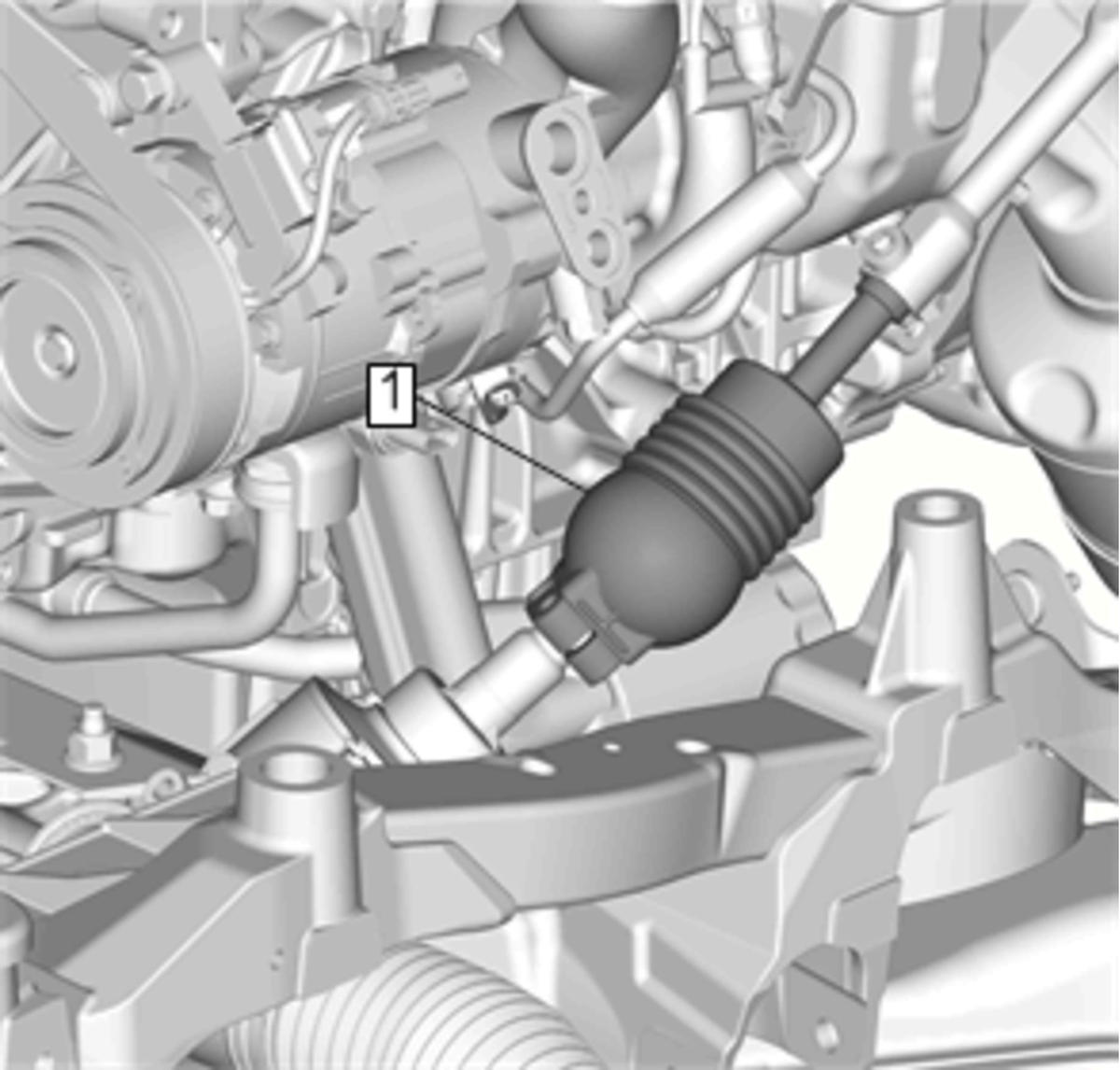

- Position the steering gear (1) on the vehicle.

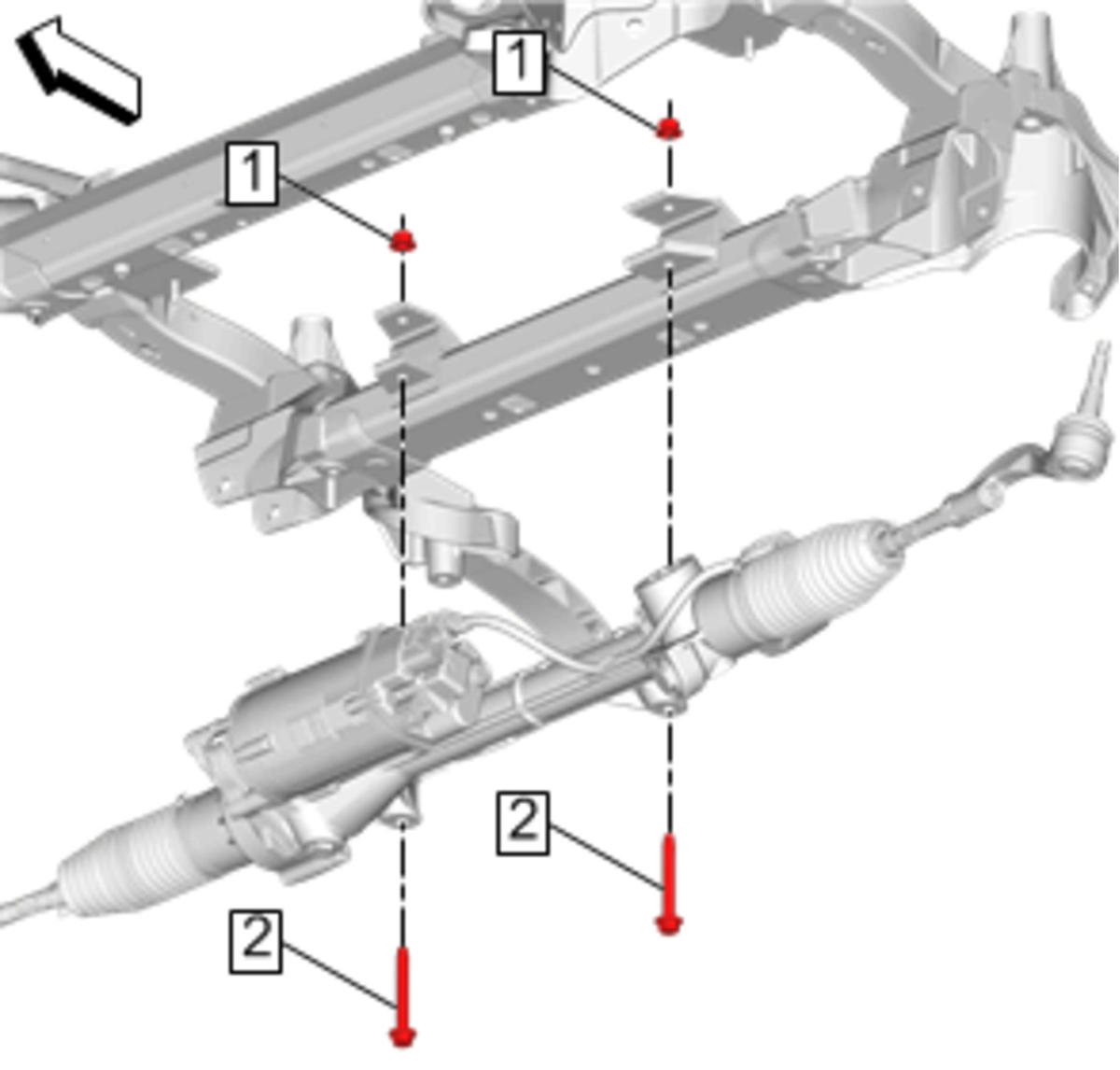

- Install Steering Gear Bolts (2) (Qty: 2)
Install NEW bolts.
- Install and tighten Steering Gear Nuts (1) (Qty: 2)
Tighten
- First Pass: 58 N.m (43 lb ft)
- Final Pass: (90-105 degrees)

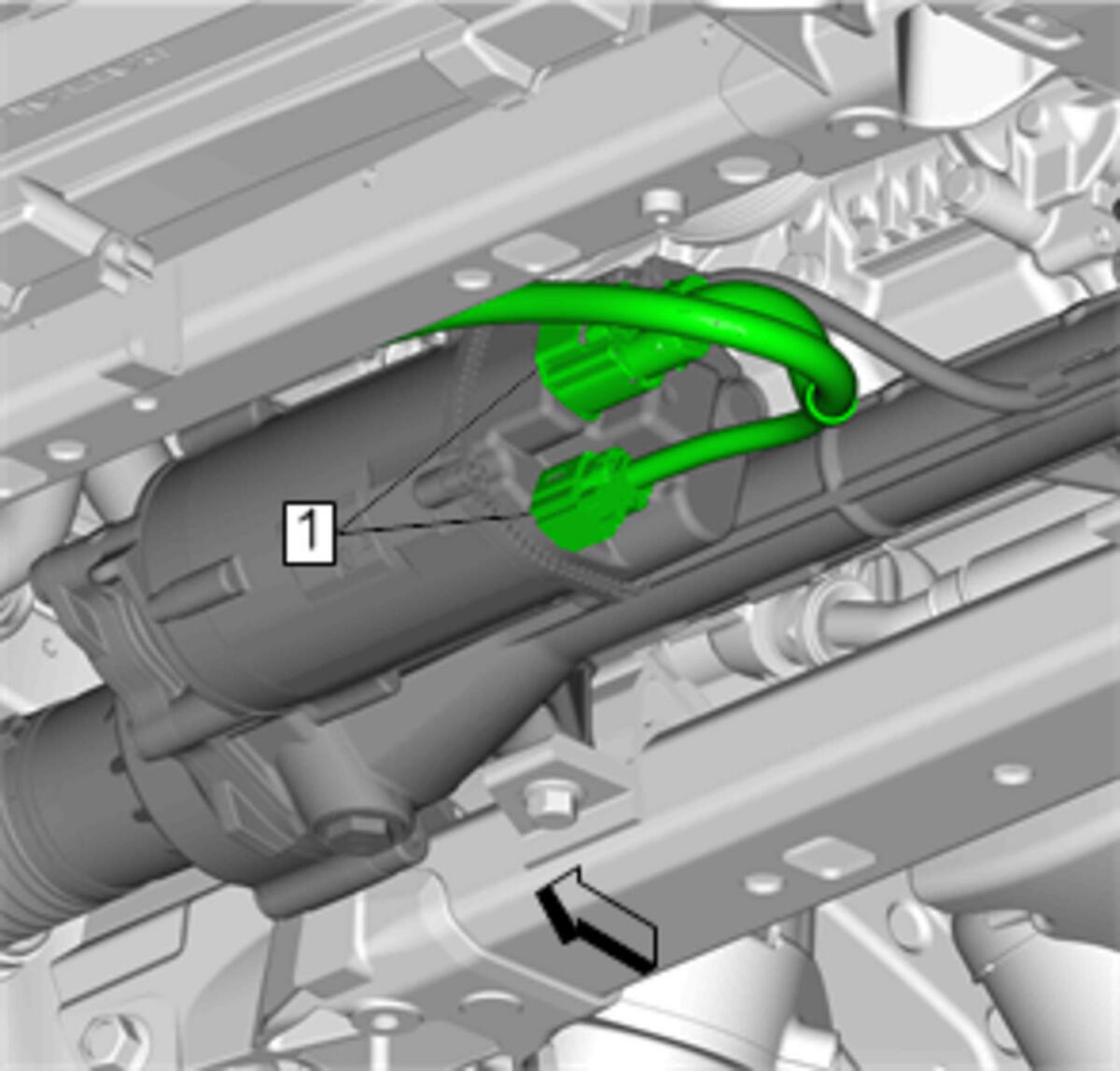

- Connect the steering gear electrical connectors (1).
- Install Intermediate Steering Shaft (1) @ Steering Gear. Refer to Intermediate Steering Shaft Replacement (RWD)
- Install Front Cradle Shear Plate (1). Refer to Front Cradle Shear Plate Replacement (V Series)
- Install Steering Linkage Outer Tie Rod (1) (Qty: 2) @ Steering Knuckle. Refer to Steering Linkage Outer Tie Rod Replacement (V-Series)
- Program the power steering control module. Refer to Control Module References
- Measure and adjust the front toe. Refer to Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
CAUTION:
Refer to Fastener Caution .
