Wheel Speed Sensors (J6G)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

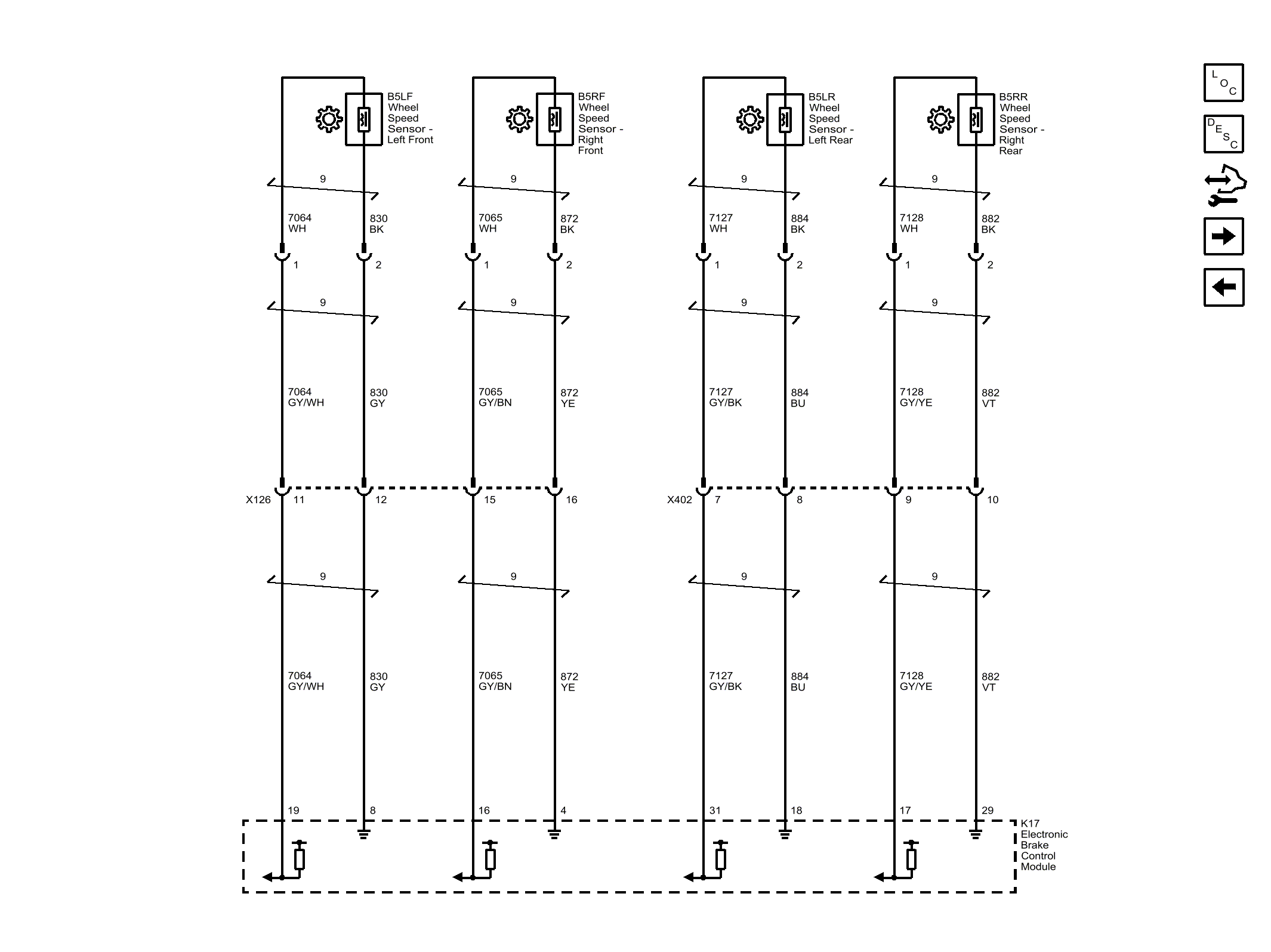

Fig 1: Wheel Speed Sensors (J6G)
GM4491197Courtesy of GENERAL MOTORS COMPANY
