Installation Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

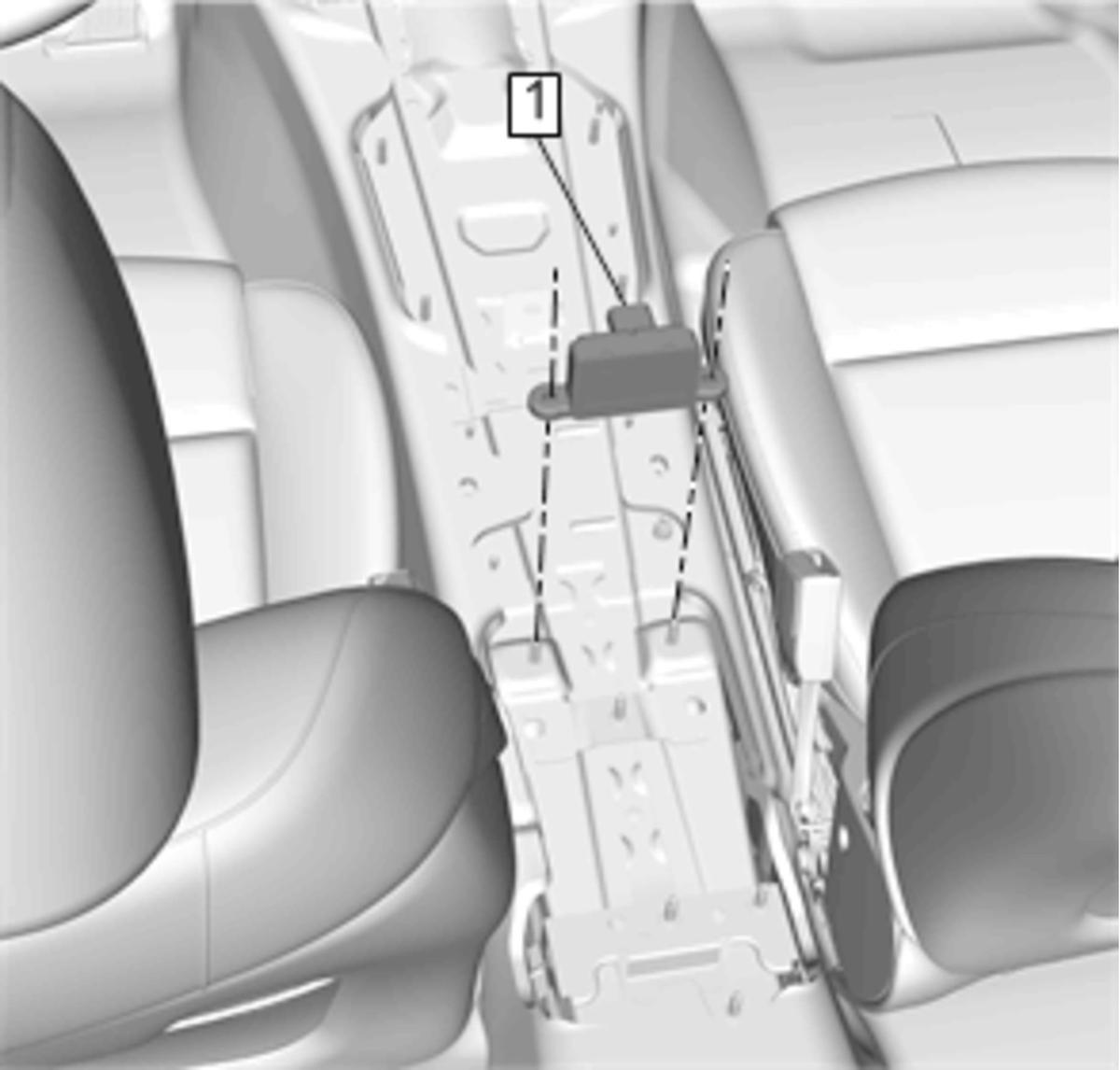

- Install the vehicle yaw sensor (1).

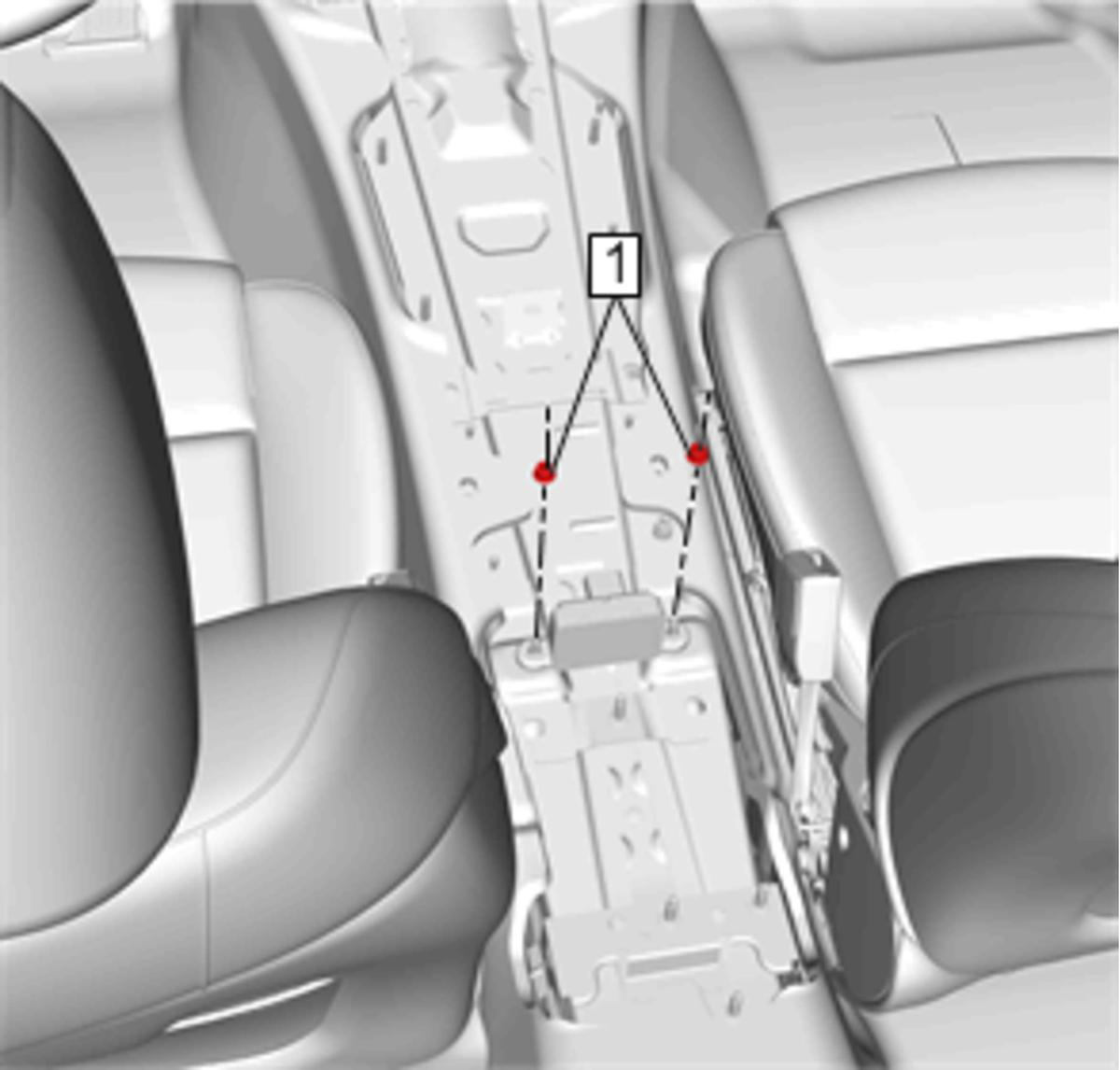

- Install the vehicle yaw sensor nuts (1) and tighten to 9 N.m (80 lb in).
- Connect the vehicle yaw sensor electrical connector.
- Install the front floor console. Refer to Front Floor Lower Console Replacement
- Calibrate the vehicle yaw sensor. Refer to Vehicle Yaw Sensor Learn
CAUTION:
Refer to Fastener Caution
