Stabilizer Shaft Insulator Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

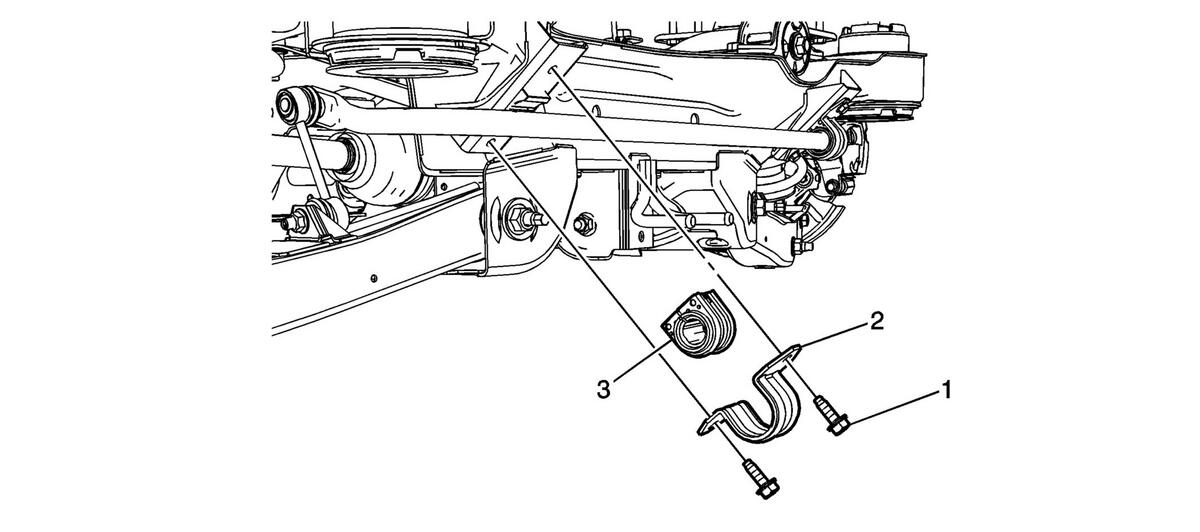

Fig 1: Stabilizer Shaft Insulator, Clamp And Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) Remove the wiring harness retainer from the upper insulator clamp bolt, if equipped.
1	Rear Stabilizer Shaft Clamp Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . NOTE: The stabilizer shaft must be at Trim Height before tightening the Rear Stabilizer Shaft Clamp Bolts. Tighten 58 N.m (43 lb ft)
2	Rear Stabilizer Shaft Clamp
3	Rear Stabilizer Shaft Insulator
