Rear Suspension Lower Control Arm Bushing Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

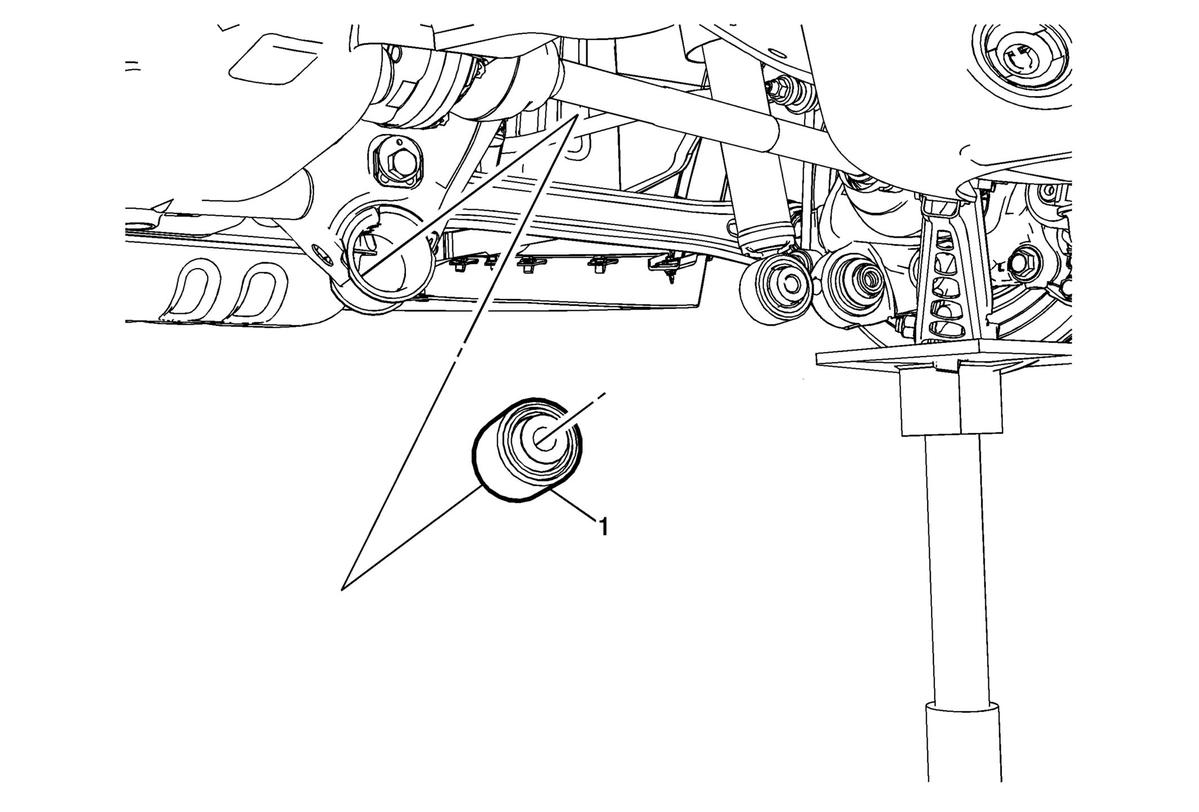

Fig 1: Rear Suspension Lower Control Arm Bushing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (Non V-Series)Tire and Wheel Removal and Installation (V-Series) . Remove the rear lower control arm. Refer to Lower Control Arm Replacement (with F55) Lower Control Arm Replacement (without F55) NOTE: Support the rear knuckle with a suitable jack stand.
1	Rear Suspension Lower Control Arm Bushing Procedure Using the DT-50806-2 , DT-50806-7 and the J-45725-2 bushing remover installer, remove and install the lower control arm bushing. Special Tools DT-50806 Bushing Remover Installer J-45725-2 Bushing Remover Installer For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) .
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (Non V-Series)Tire and Wheel Removal and Installation (V-Series) .
Remove the rear lower control arm. Refer to Lower Control Arm Replacement (with F55) Lower Control Arm Replacement (without F55)

NOTE:

Support the rear knuckle with a suitable jack stand.

Rear Suspension Lower Control Arm Bushing
Procedure
Using the DT-50806-2 , DT-50806-7 and the J-45725-2 bushing remover installer, remove and install the lower control arm bushing.

Special Tools

DT-50806 Bushing Remover Installer
J-45725-2 Bushing Remover Installer

For equivalent regional tools, refer to Special Tools .
