Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation (Non V-Series)Tire and Wheel Removal and Installation (V-Series)
    2. Fig 1: Rear Suspension Lower Control Arm Cover (without F55)
    GM3967575Courtesy of GENERAL MOTORS COMPANY
  2. Remove the rear suspension lower control arm cover push pins (1).
  3. Remove Rear Suspension Lower Control Arm Cover(2)
  4. Disconnect the electronic suspension rear position sensor linkage from the rear suspension lower control arm. Electronic Suspension Rear Position Sensor Replacement
  5. Using a suitable jack stand support the rear suspension lower control arm.
    6. Fig 2: Rear Shock Absorber Lower Bolt
    GM3967577Courtesy of GENERAL MOTORS COMPANY
  6. Remove Rear Shock Absorber Bolt (1) and DISCARD
    7. Fig 3: Stabilizer Shaft Link Bolt
    GM4341598Courtesy of GENERAL MOTORS COMPANY
  7. Remove Stabilizer Shaft Link Bolt (1)
    8. Fig 4: Rear Suspension Lower Trailing Link Outer Nut And Bolt
    GM4341606Courtesy of GENERAL MOTORS COMPANY
  8. Remove Rear Suspension Lower Trailing Link Outer Nut (1)
  9. Remove Rear Suspension Lower Trailing Link Outer Bolt (2) and DISCARD
    10. Fig 5: Rear Suspension Lower Control Arm Outer Nut And Bolt
    GM3966969Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    When removing/installing the lower control arm bolt, use care to not damage the park brake cable housing. If the housing is damaged, park brake failure may occur

  10. Remove the rear suspension lower control arm outer nut (1) and bolt (2). DISCARD the bolt.
    11. Fig 6: Rear Suspension Lower Control Arm Inner Nut And Bolt
    GM3967579Courtesy of GENERAL MOTORS COMPANY
  11. Remove the rear suspension lower control arm inner nut (1) and bolt (2). DISCARD the bolt.

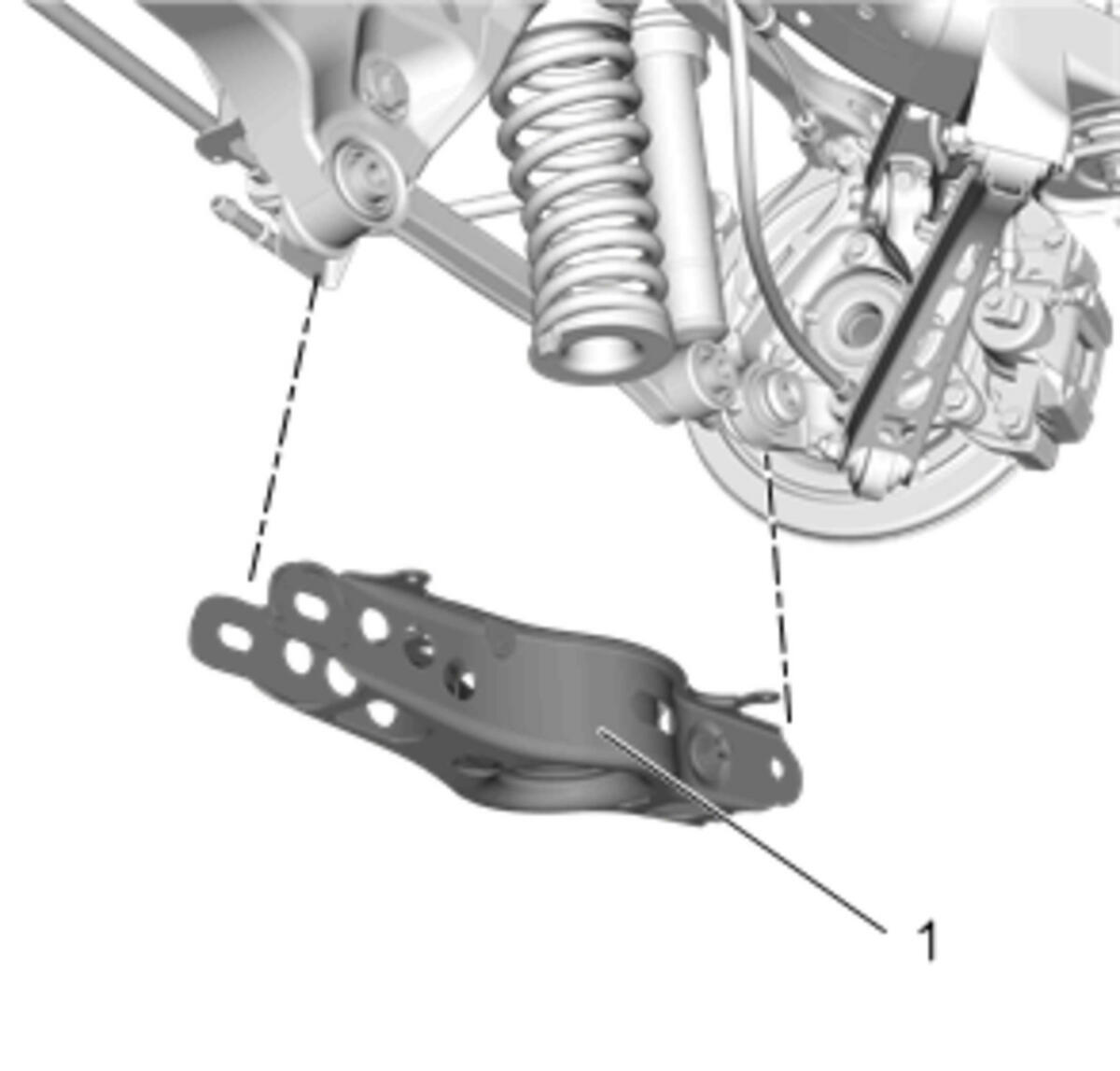

    12. Fig 7: Rear Suspension Lower Control Arm
    GM3968646Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Pry bar tools may cause damage to the ball joint seals when removing links from the knuckle. Damage to the seals may cause knuckle and control arm failure. The knuckle will need to be replaced if there is damage to the seals.

  12. Remove Rear Suspension Lower Control Arm(1)
