Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Front Brake Rotor. Refer to Front Brake Rotor Replacement (JE5)Front Brake Rotor Replacement (J55)Front Brake Rotor Replacement (J6G)

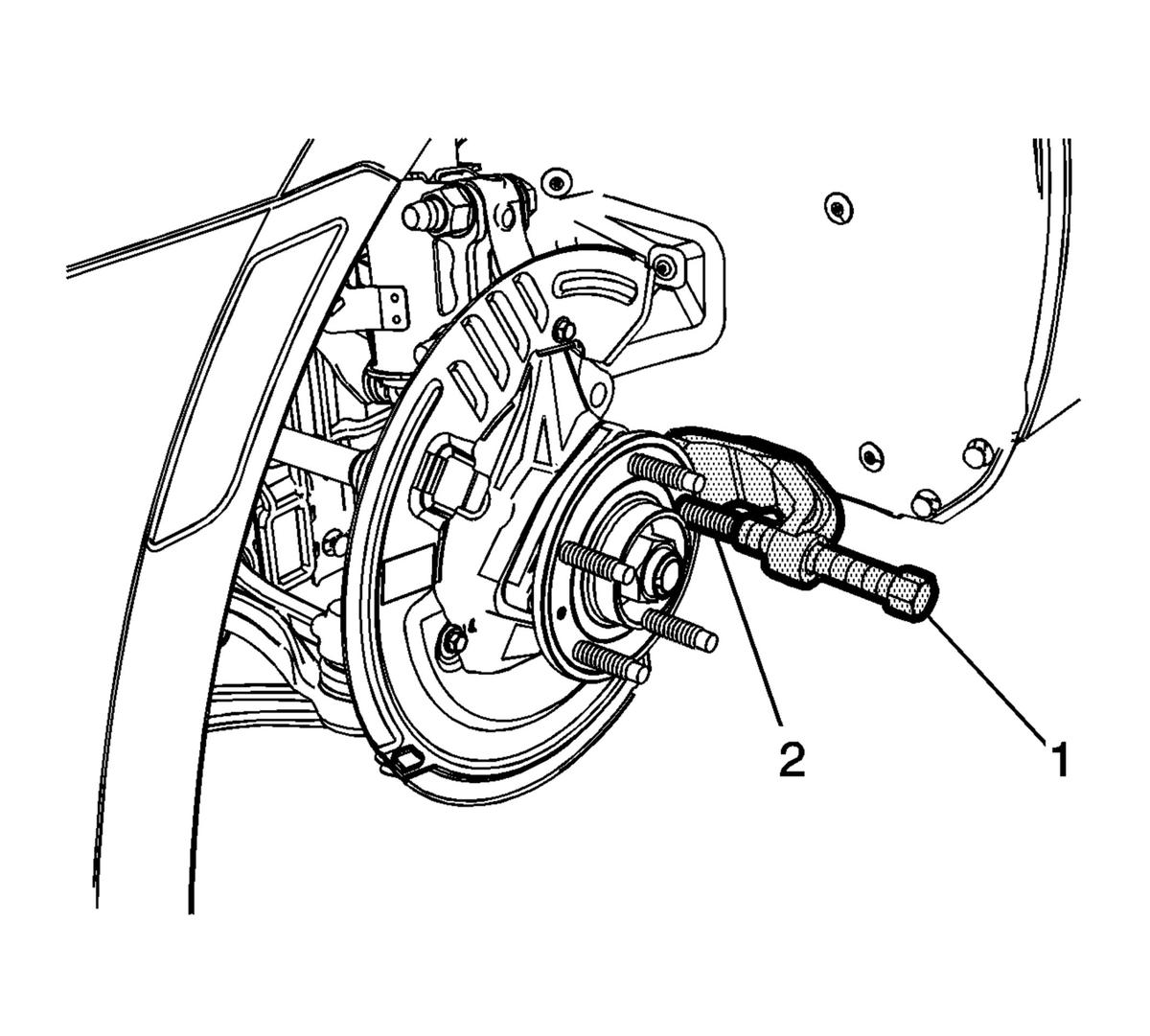

    2. Fig 1: Wheel Stud Separator
    GM2812106Courtesy of GENERAL MOTORS COMPANY
  2. Use the CH-43631  separator (1) to separate the wheel stud (2) from the flange on the hub assembly.
    3. Fig 2: Wheel Stud
    GM2812183Courtesy of GENERAL MOTORS COMPANY
  3. Remove the wheel stud (2) from the flange on the hub assembly (1).

    DISCARD the stud.
