Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

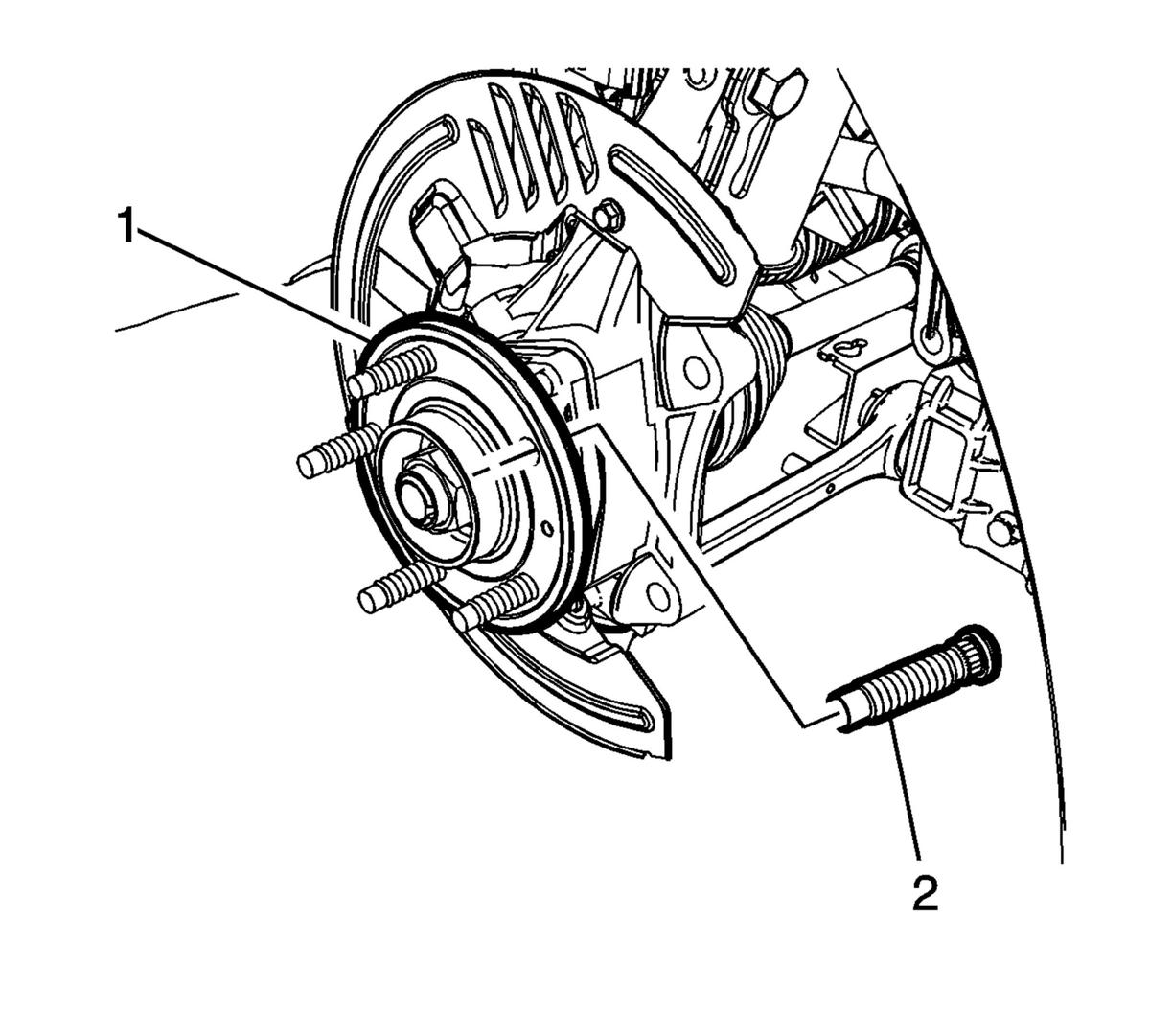

    Fig 1: Wheel Stud
    GM2812183Courtesy of GENERAL MOTORS COMPANY
  1. Position the NEW wheel stud (2) in the flange of the hub assembly (1).

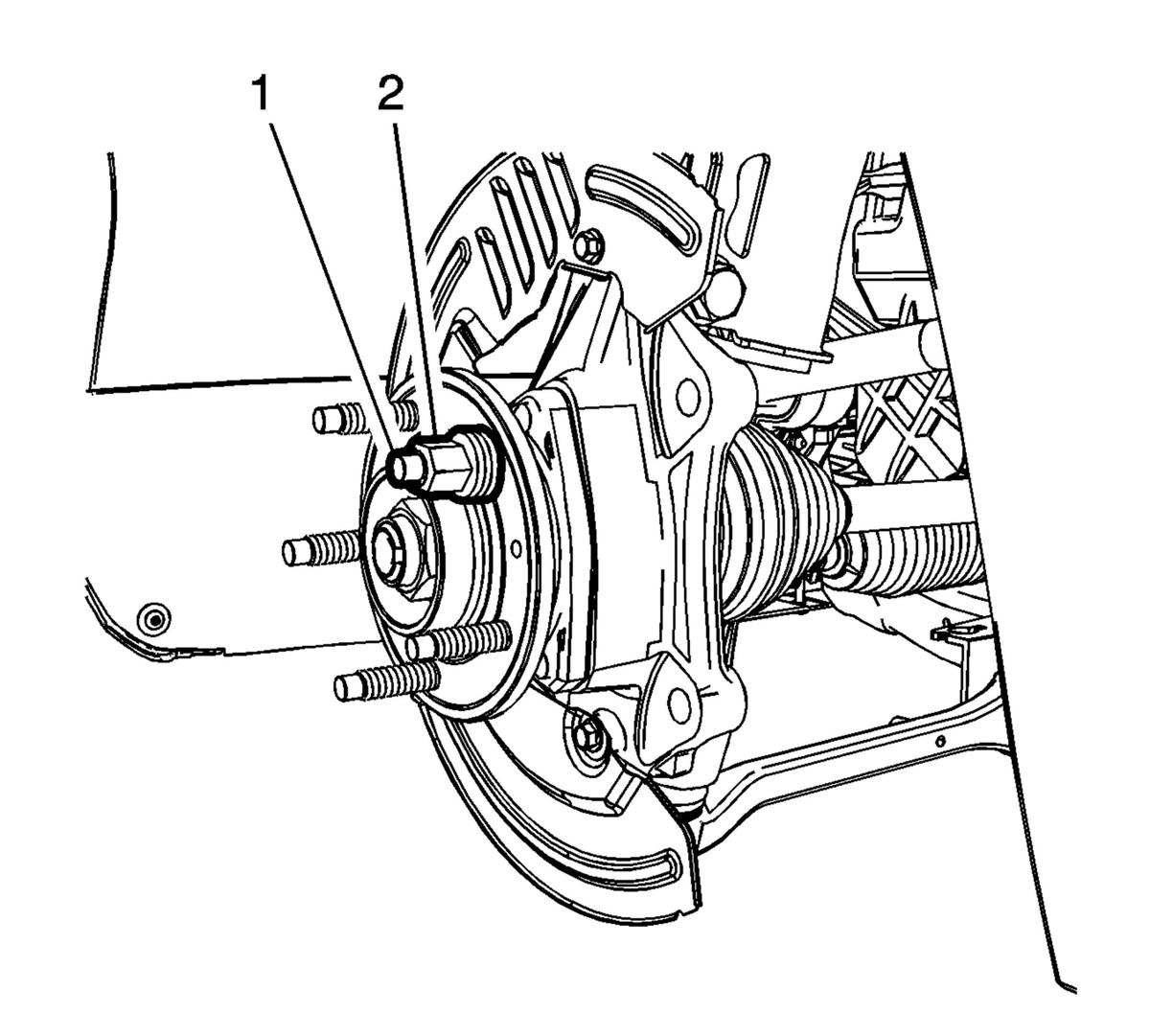

    2. Fig 2: Flat Washers And Old Wheel Nut On Wheel Stud
    GM2812121Courtesy of GENERAL MOTORS COMPANY
  2. Install flat washers and an OLD wheel nut (2) on the wheel stud (1).
  3. Use a suitable tool to prevent the flange on the hub assembly from rotating.
  4. Tighten the wheel nut until the wheel stud is firmly seated.
  5. Remove the wheel nut and flat washers.
  6. Install Front Brake Rotor. Refer to Front Brake Rotor Replacement (JE5)Front Brake Rotor Replacement (J55)Front Brake Rotor Replacement (J6G) »Install
