Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

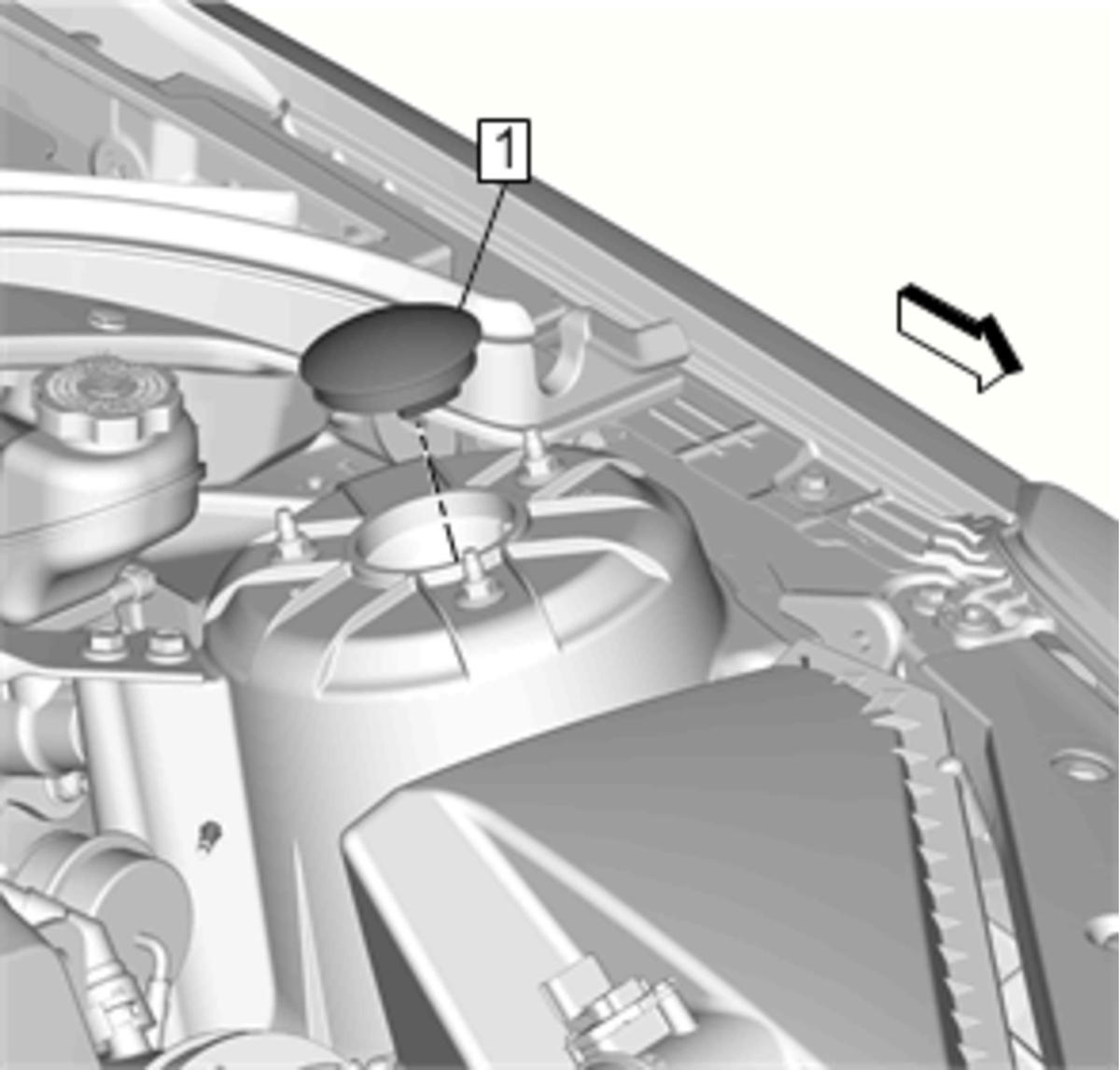

    Fig 1: Front Suspension Strut Upper Mounting Cap
    GM4177913Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some vehicles may NOT have a front suspension strut upper mounting cap. If no cap is present then continue to Step 2.

  1. Remove Front Suspension Strut Upper Mounting Cap (1)

    DISCARD the cap.

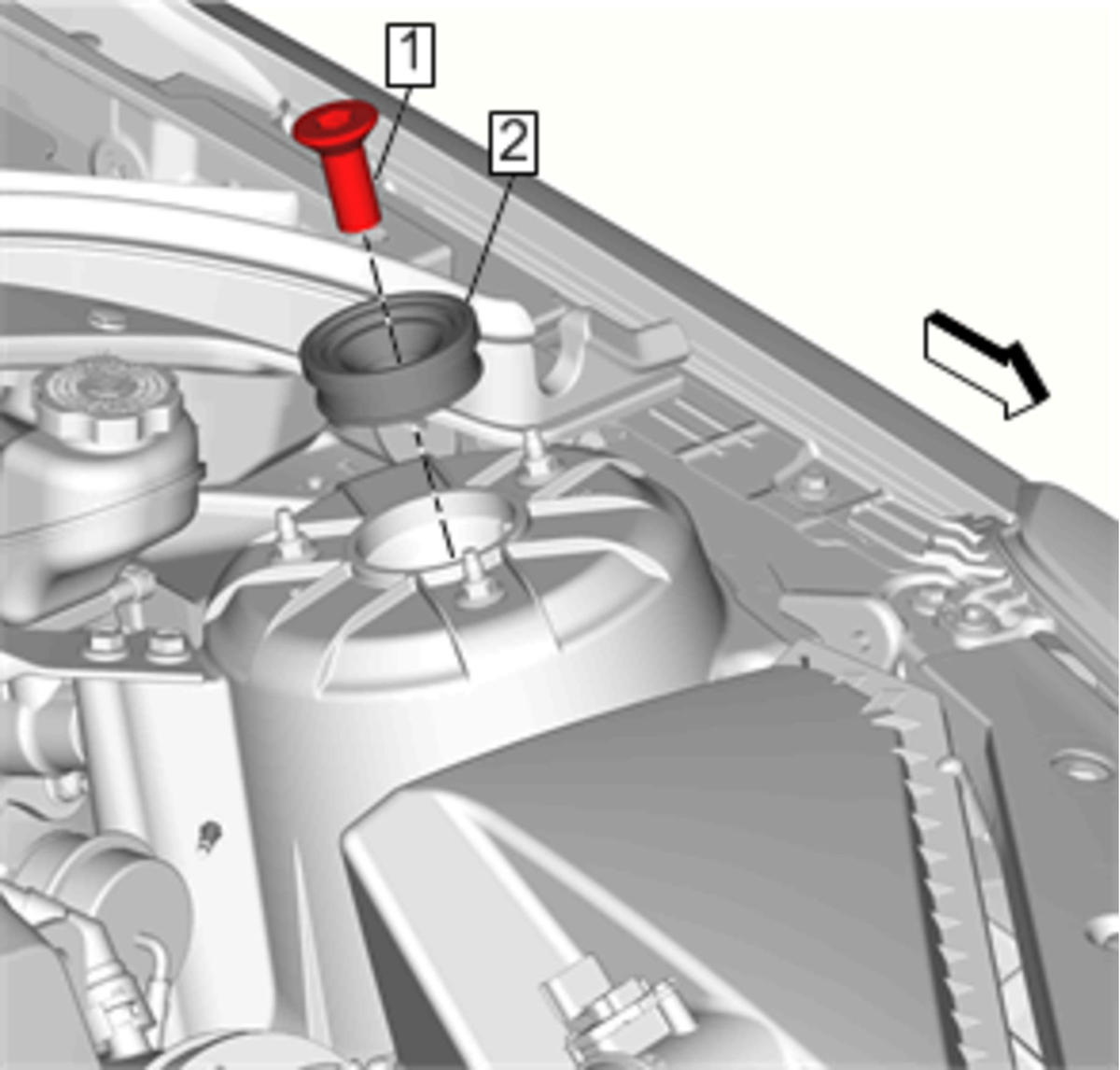

    2. Fig 2: Front Suspension Strut Bumper Stop And Strut Mount Upper Cup
    GM4177917Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    If the front suspension strut mount upper cup and front suspension strut bumper stop are NOT already installed then continue to Step 4.

  2. Remove the front suspension strut bumper stop (1).
  3. Remove the front suspension strut mount upper cup (2).
  4. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V)
  5. Remove the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (Non V-Series)Tire and Wheel Removal and Installation (V-Series)
    6. Fig 3: Suspension Wiring Connector And Harness Clips
    GM4178177Courtesy of GENERAL MOTORS COMPANY
  6. Disconnect the electronic suspension wiring connector (1) and remove the electronic suspension wiring harness clip (2) from the front strut assembly bracket.
  7. Remove the front wheel speed sensor harness clip (3) from the front strut assembly bracket.
    8. Fig 4: Front Brake Hose Clip
    GM4177907Courtesy of GENERAL MOTORS COMPANY
  8. Remove the front brake hose clip (1) from the front strut assembly bracket. Refer to Front Brake Hose Replacement (JE5)Front Brake Hose Replacement (J55)Front Brake Hose Replacement (J6G)
    9. Fig 5: Front Stabilizer Shaft Link to Strut Assembly
    GM4177909Courtesy of GENERAL MOTORS COMPANY
  9. Remove Front Stabilizer Shaft Link (1) @ Strut Assembly. Refer to Stabilizer Shaft Link Replacement (Non V-Series) Stabilizer Shaft Link Replacement (V-Series)
    10. Fig 6: Front Suspension Strut Bolts and Nuts
    GM4177912Courtesy of GENERAL MOTORS COMPANY
  10. Remove Front Suspension Strut Nuts (1) (Qty: 2)
  11. Remove Front Suspension Strut Bolts (2) (Qty: 2)
  12. Partially lower the vehicle.
    13. Fig 7: Front Suspension Upper Mounting Nuts
    GM4177915Courtesy of GENERAL MOTORS COMPANY
  13. Remove Front Suspension Strut Upper Mounting Nuts (1) (Qty: 3)
  14. Raise the vehicle.
    15. Fig 8: Front Suspension Strut
    GM4177929Courtesy of GENERAL MOTORS COMPANY
  15. Remove Front Suspension Strut (1)
  16. Transfer components as necessary.
