Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

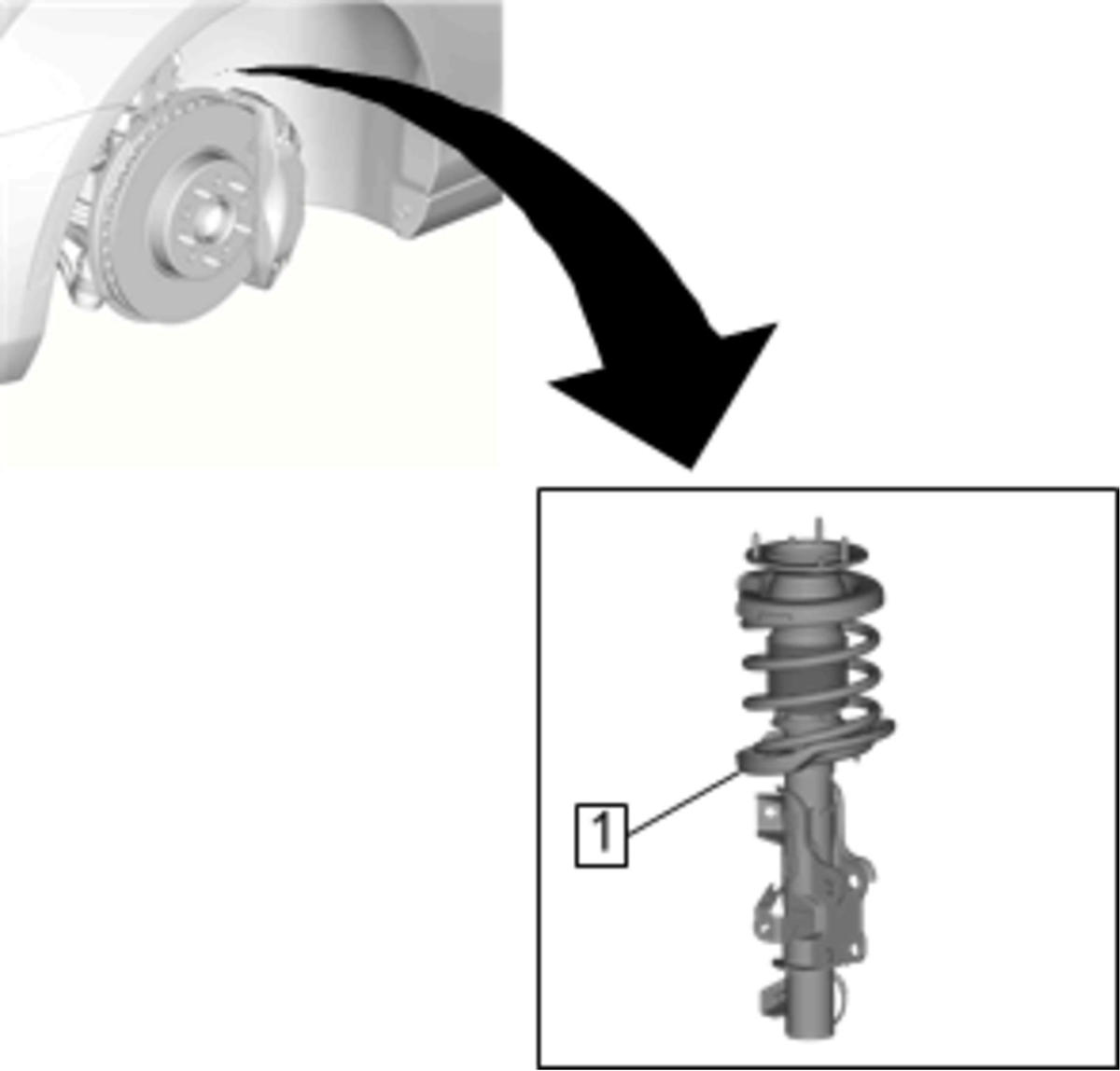

    Fig 1: Front Suspension Strut
    GM4177929Courtesy of GENERAL MOTORS COMPANY
  1. Install Front Suspension Strut (1)
  2. Partially lower the vehicle.

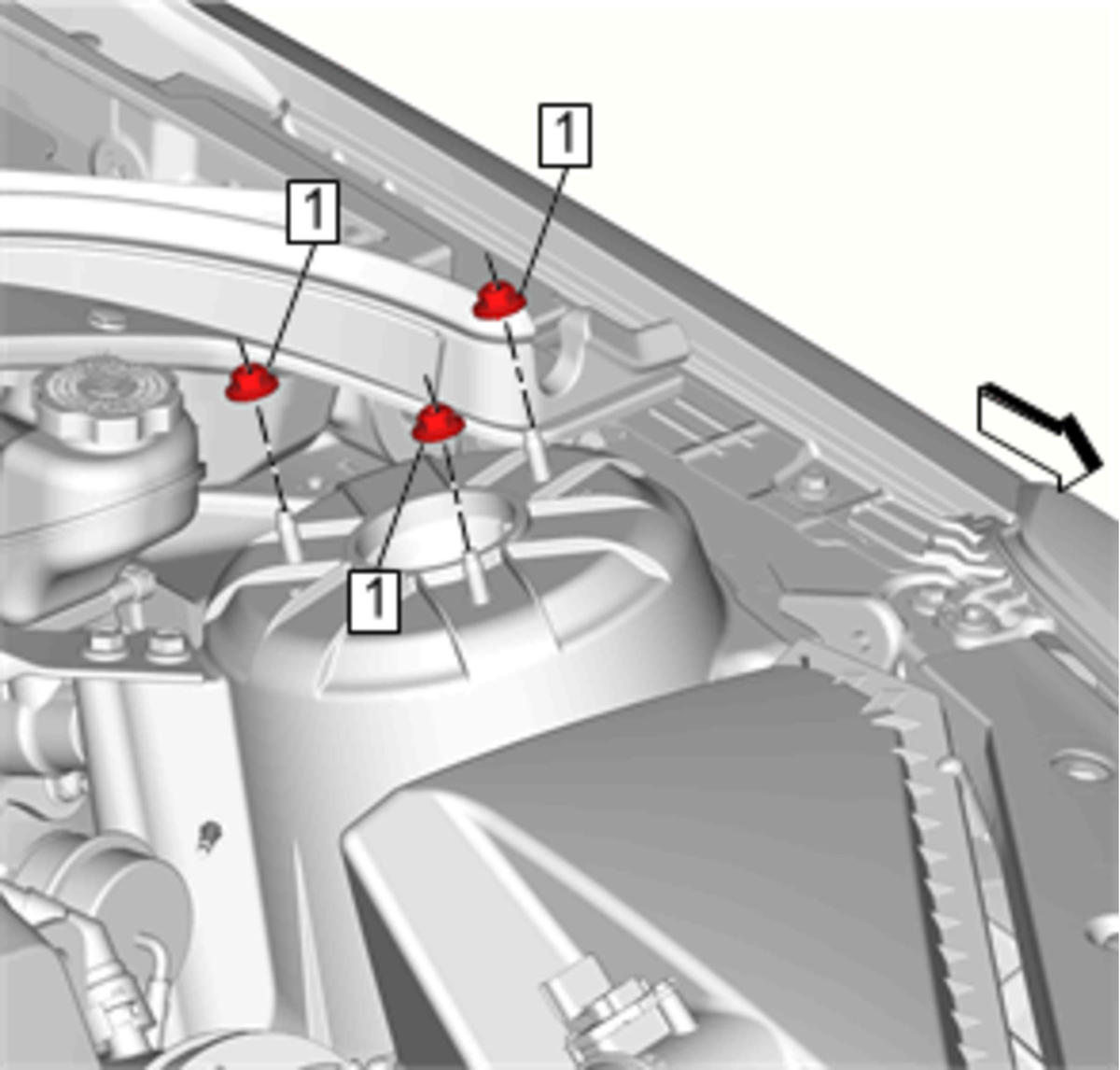

    3. Fig 2: Front Suspension Upper Mounting Nuts
    GM4177915Courtesy of GENERAL MOTORS COMPANY
  3. Install, but do NOT tighten Front Suspension Strut Upper Mounting Nuts (1) (Qty: 3)

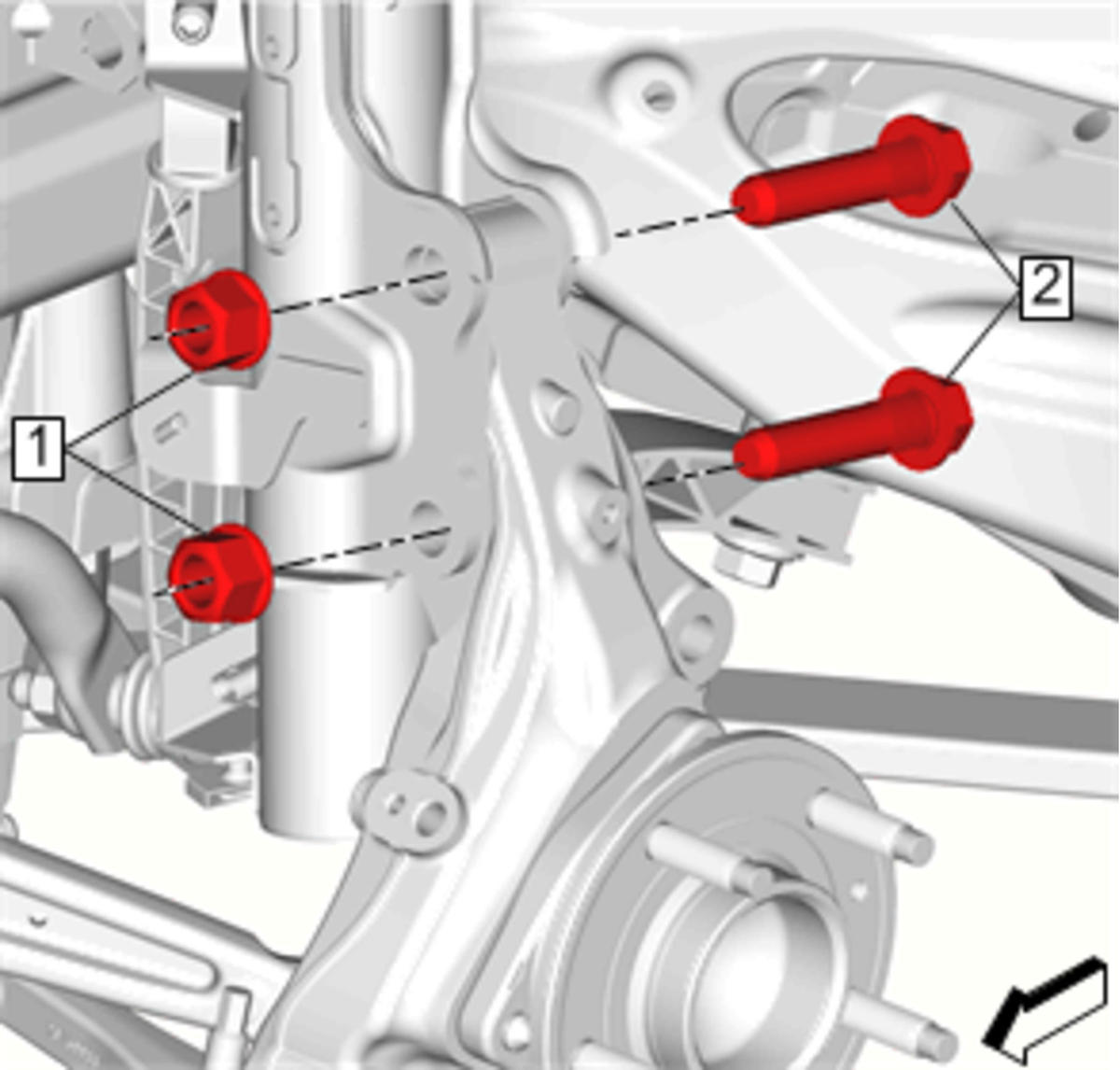

    4. Fig 3: Front Suspension Strut Bolts and Nuts
    GM4177912Courtesy of GENERAL MOTORS COMPANY
  4. Install Front Suspension Strut Bolts (2) (Qty: 2)
    5. CAUTION:

    Refer to Fastener Caution .

  5. Install Front Suspension Strut Nuts (1) (Qty: 2)

    Tighten

    1. First Pass: 150 N.m (111 lb ft)
    2. Final Pass: (80-95 degrees)

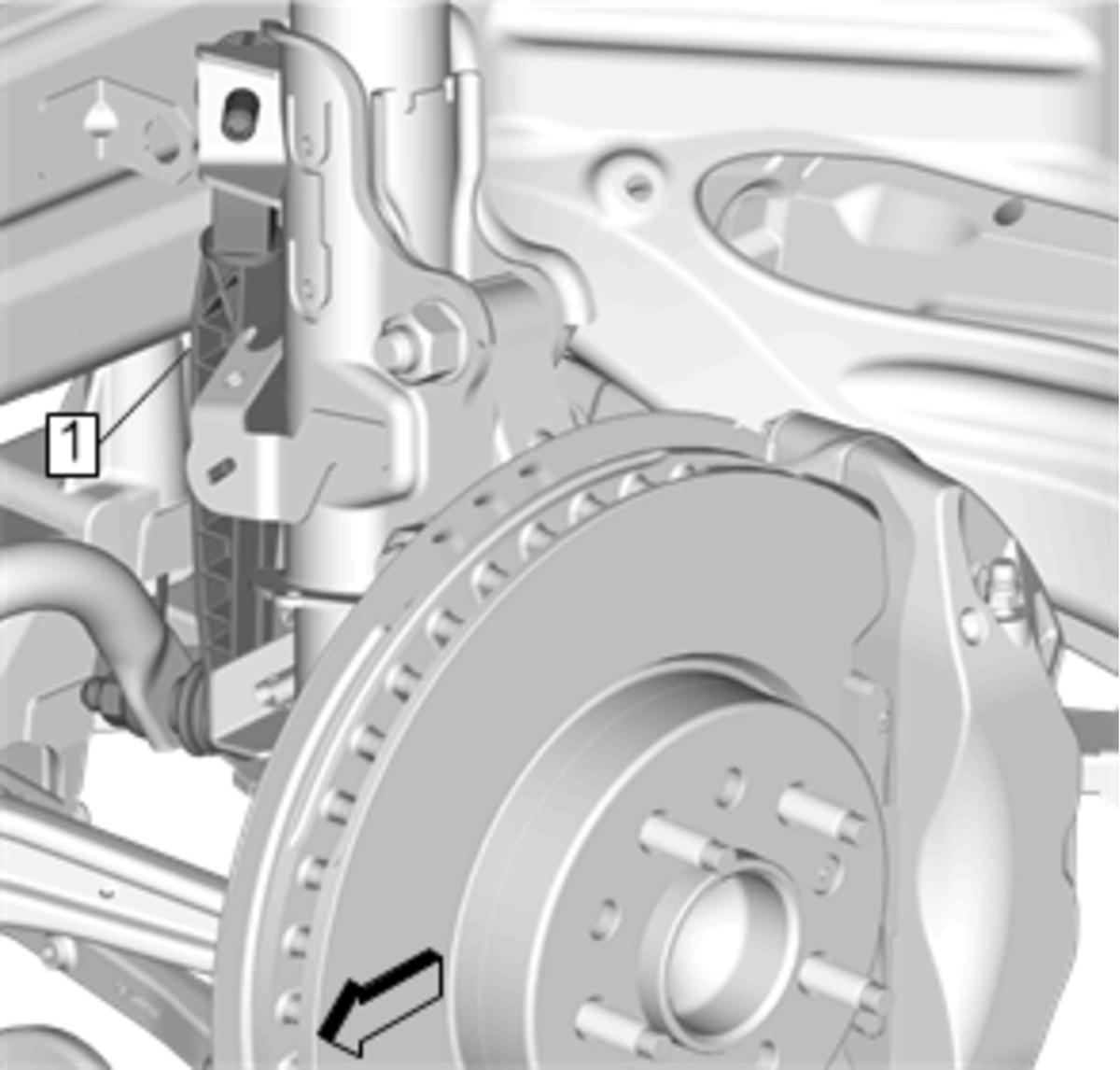

    6. Fig 4: Front Stabilizer Shaft Link to Strut Assembly
    GM4177909Courtesy of GENERAL MOTORS COMPANY
  6. Install Front Stabilizer Shaft Link (1) @ Strut Assembly. Refer to Stabilizer Shaft Link Replacement (Non V-Series) Stabilizer Shaft Link Replacement (V-Series)

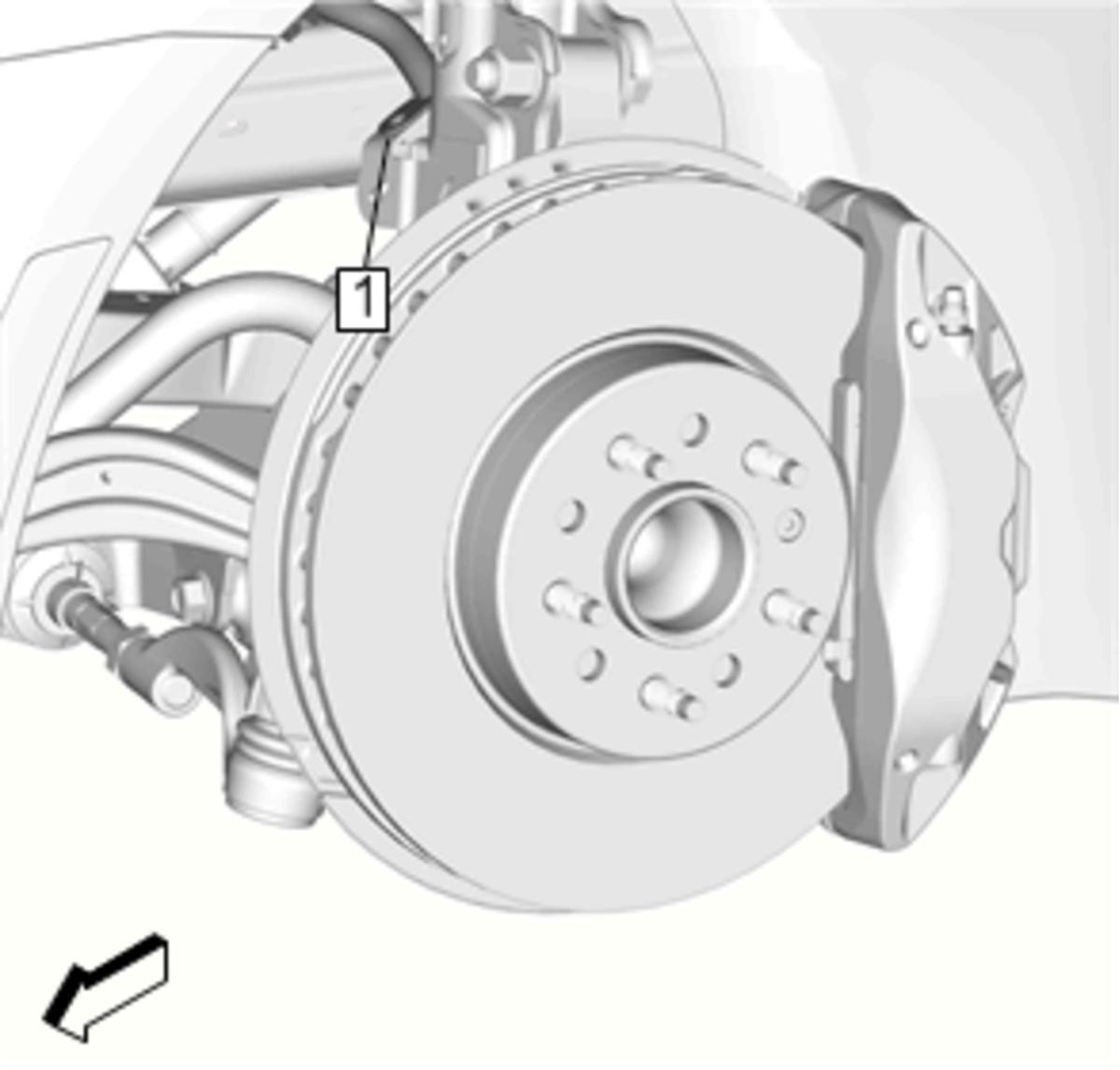

    7. Fig 5: Front Brake Hose Clip
    GM4177907Courtesy of GENERAL MOTORS COMPANY
  7. Install the front brake hose clip (1) on the front strut assembly bracket. Refer to Front Brake Hose Replacement (JE5)Front Brake Hose Replacement (J55)Front Brake Hose Replacement (J6G)

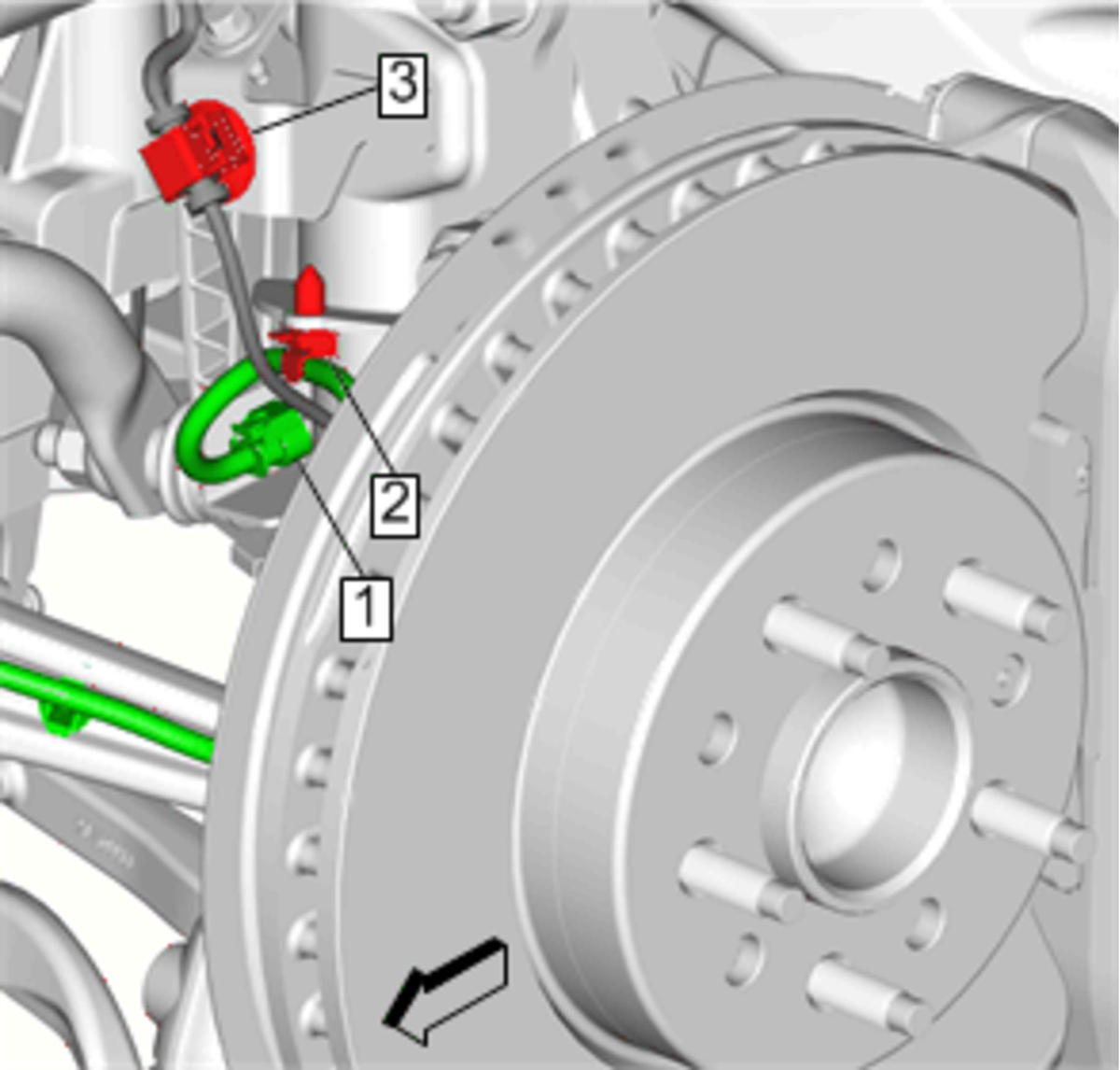

    8. Fig 6: Suspension Wiring Connector And Harness Clips
    GM4178177Courtesy of GENERAL MOTORS COMPANY
  8. Install the front wheel speed sensor harness clip (3) in the front strut assembly bracket.
  9. Install the electronic suspension wiring harness clip (2) in the front strut assembly bracket and connect the electronic suspension wiring connector (1).
  10. Install the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (Non V-Series)Tire and Wheel Removal and Installation (V-Series)
  11. Lower the vehicle completely.
    12. Fig 7: Front Suspension Upper Mounting Nuts
    GM4177915Courtesy of GENERAL MOTORS COMPANY
  12. Tighten Front Suspension Strut Upper Mounting Nuts (1) (Qty: 3) to 22 N.m (16 lb ft)

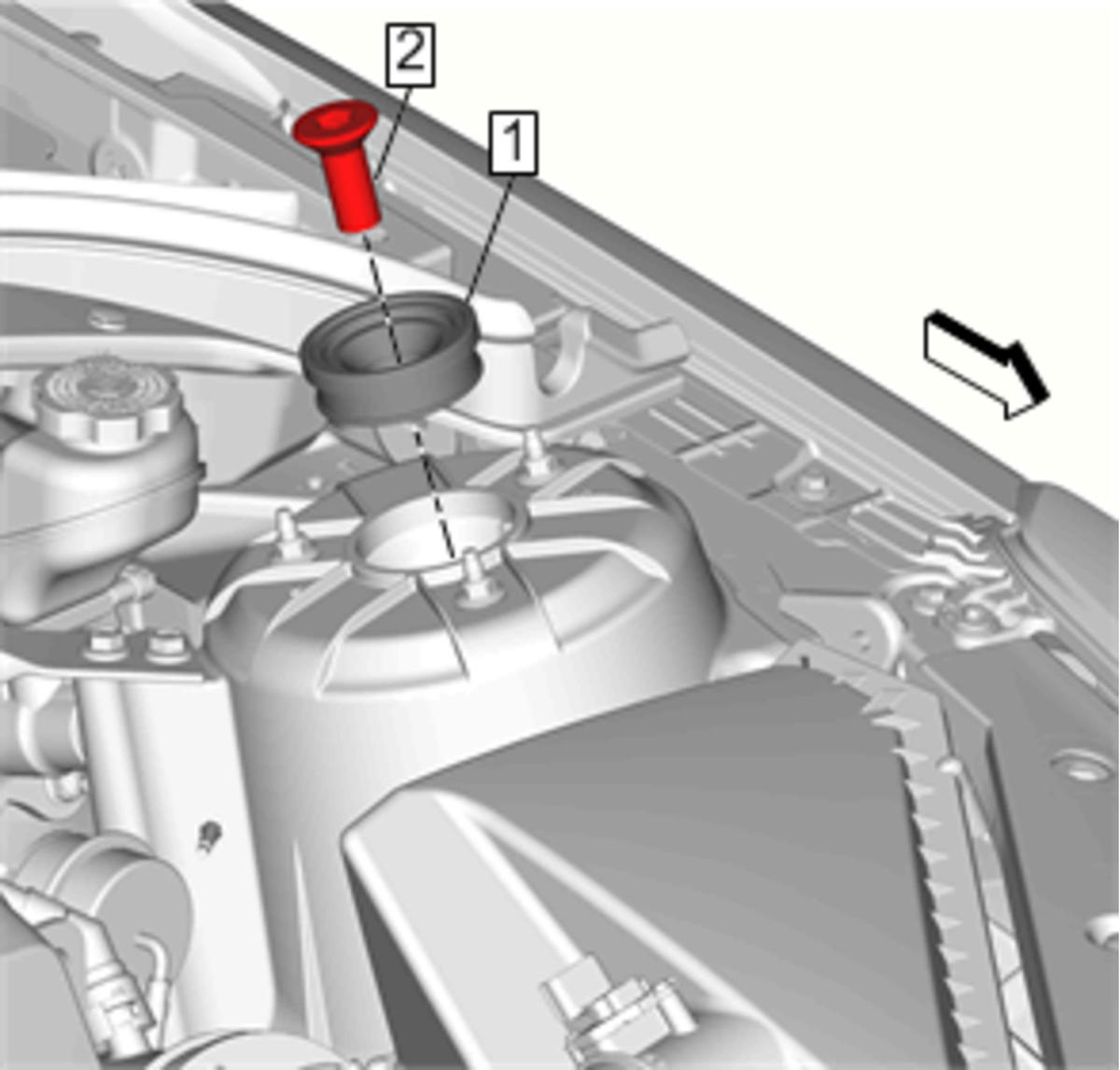

    13. Fig 8: Front Suspension Strut Bumper Stop And Strut Mount Upper Cup
    GM4178283Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    The front suspension strut mount upper cup MUST be fully seated within the strut tower and the front suspension strut bumper stop MUST be tightened to the correct specification. Do NOT over-tighten the stop or damage to the shock absorber will occur.

  13. Install the front suspension strut mount upper cup (1).
    14. NOTE:

    The front suspension strut bumper stop MUST be installed with vehicle resting completely on the ground. Do NOT attempt to tighten the stop with the wheels lifted.

  14. Install the front suspension strut bumper stop (2) and tighten to 25 N.m (18 lb ft).
  15. Measure and adjust the wheel alignment. Refer to Wheel Alignment Measurement
