Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

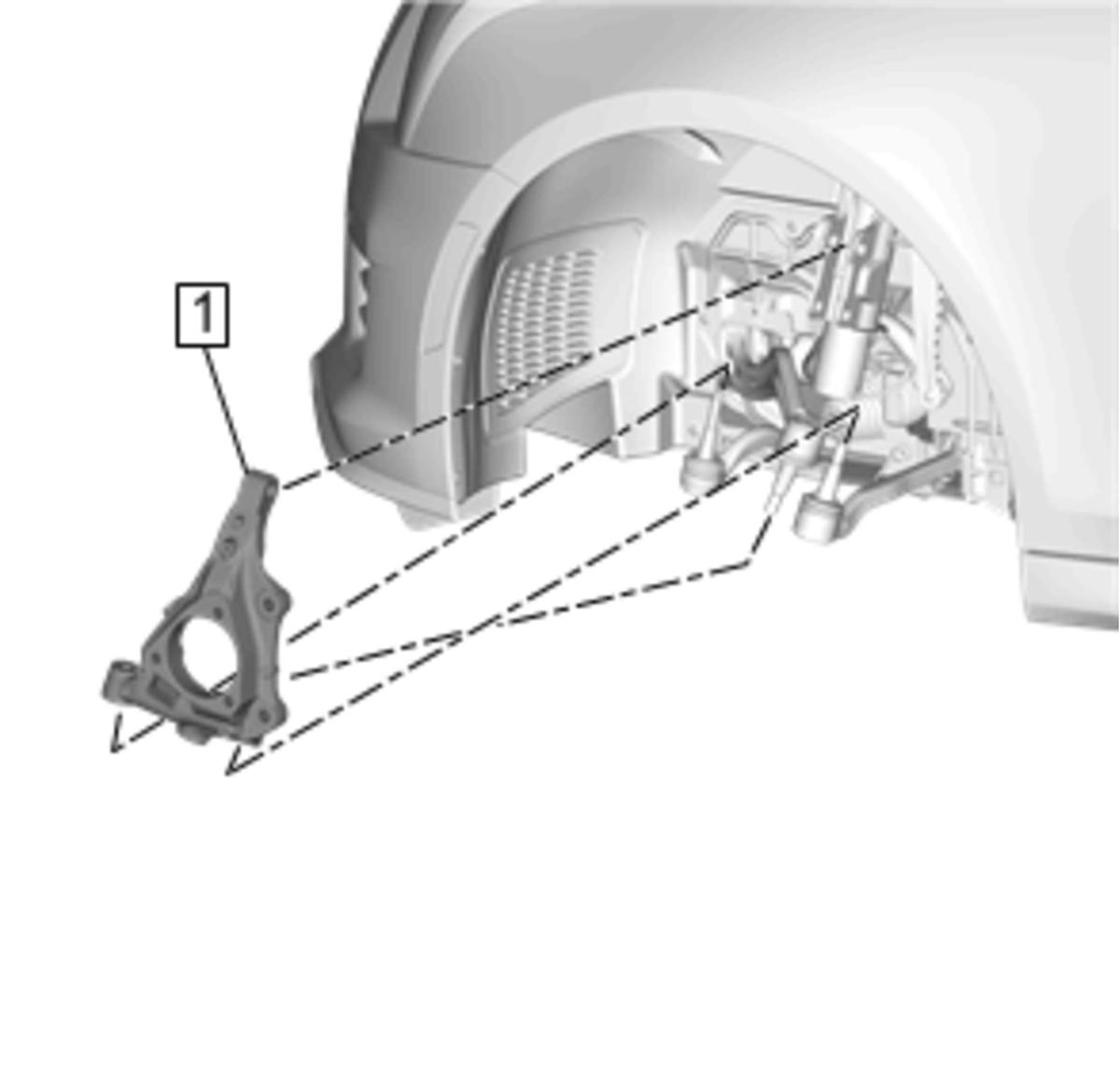

    Fig 1: Steering Knuckle
    GM4089794Courtesy of GENERAL MOTORS COMPANY
  1. Install Steering Knuckle (1)

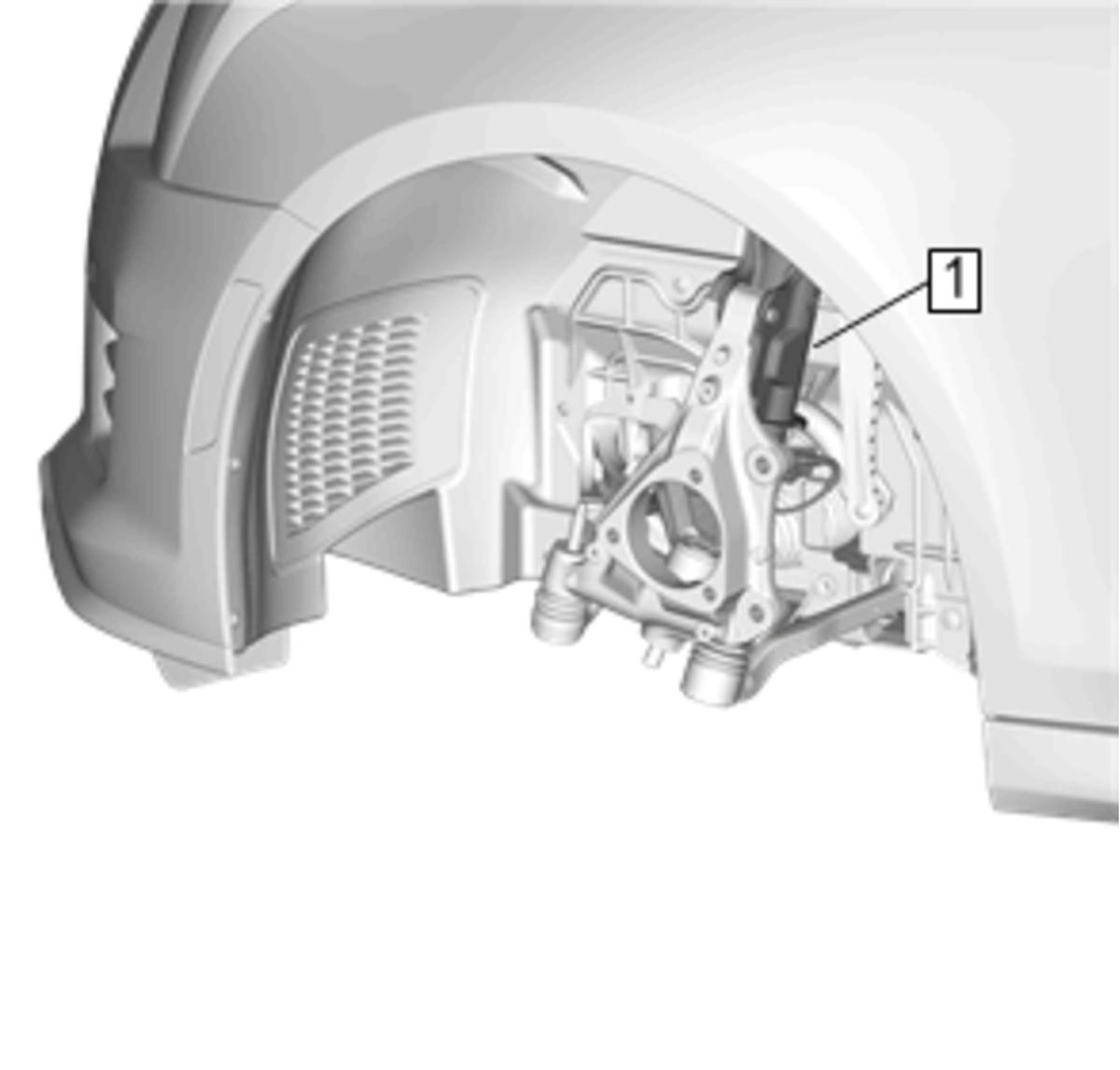

    2. Fig 2: Strut Assembly
    GM4089793Courtesy of GENERAL MOTORS COMPANY
  2. Install Strut Assembly (1) @ Steering Knuckle. Refer to Strut Assembly Removal and Installation (FE2 or FE3 With F55) Strut Assembly Removal and Installation (FE2 Without F55) Strut Assembly Removal and Installation (FE4 With F55)

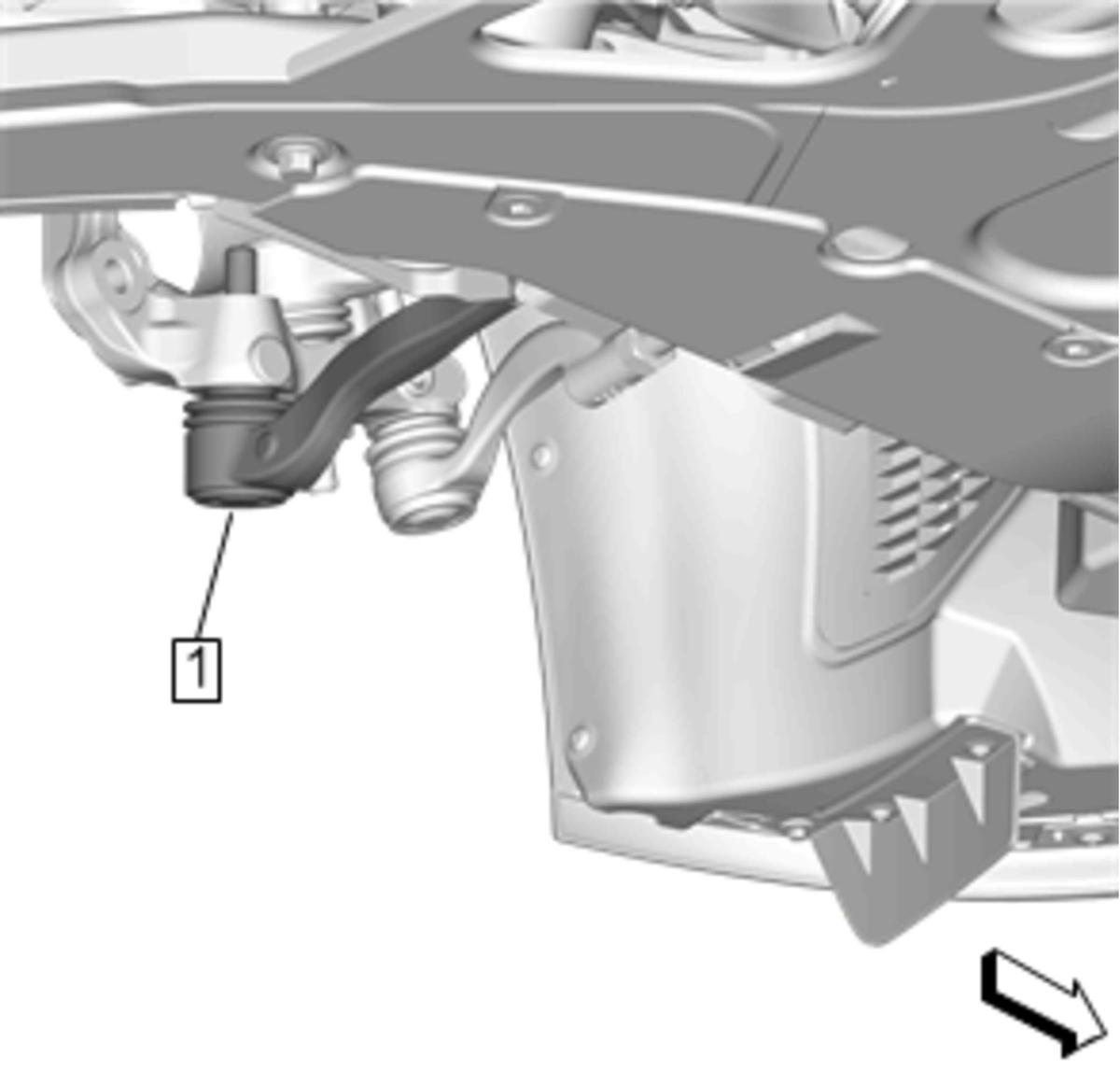

    3. Fig 3: Front Lower Control Rear Link
    GM4089790Courtesy of GENERAL MOTORS COMPANY
  3. Install Front Lower Control Rear Link (1) @ Steering Knuckle. Refer to Front Lower Control Rear Link Replacement (V-Series)

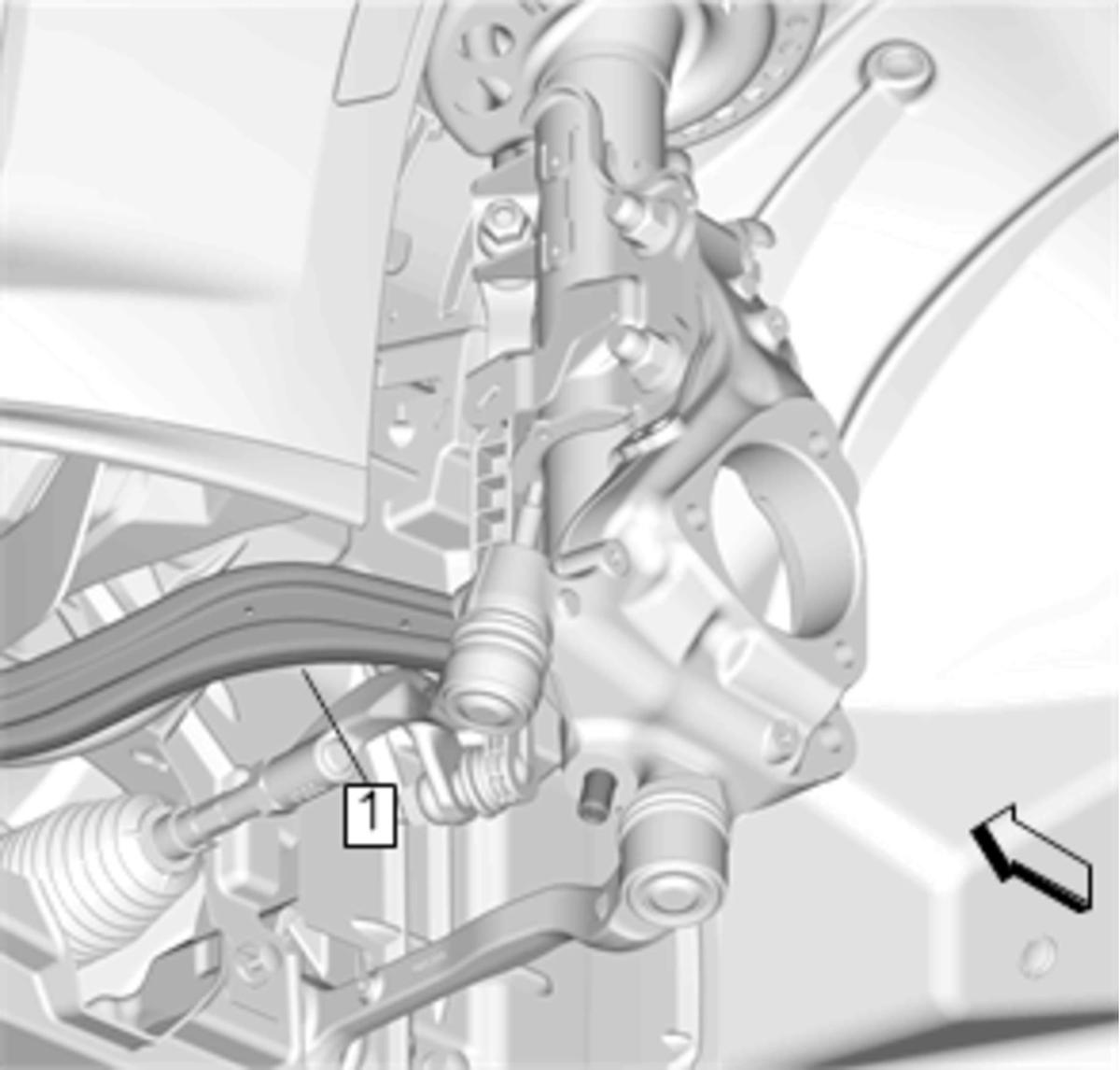

    4. Fig 4: Front Lower Control Front Link
    GM4089788Courtesy of GENERAL MOTORS COMPANY
  4. Install Front Lower Control Front Link (1) @ Steering Knuckle. Refer to Front Lower Control Front Link Replacement (V-Series)

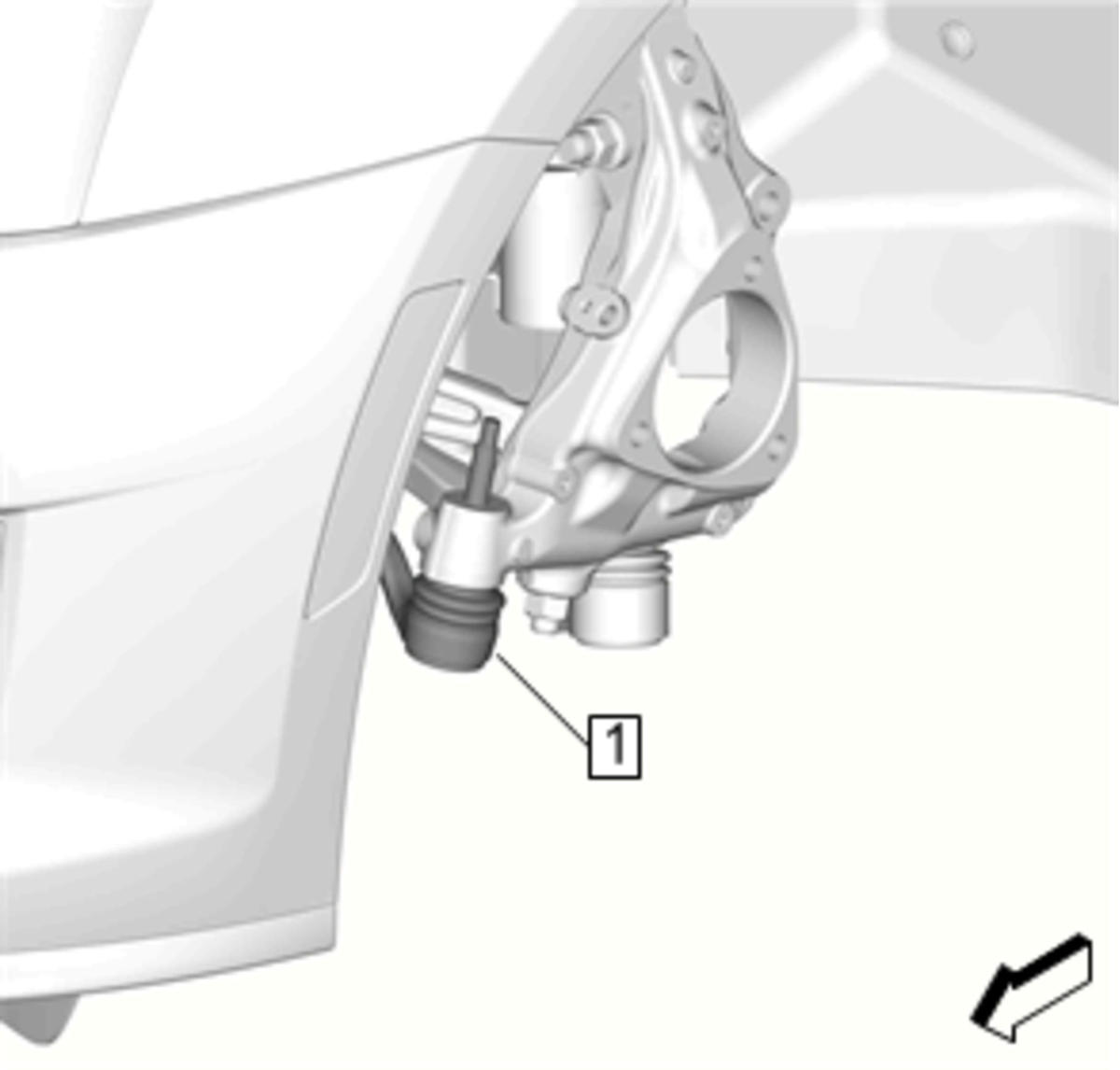

    5. Fig 5: Steering Linkage Outer Tie Rod
    GM4089786Courtesy of GENERAL MOTORS COMPANY
  5. Install Steering Linkage Outer Tie Rod (1) @ Steering Knuckle. Refer to Steering Linkage Outer Tie Rod Replacement (V-Series)

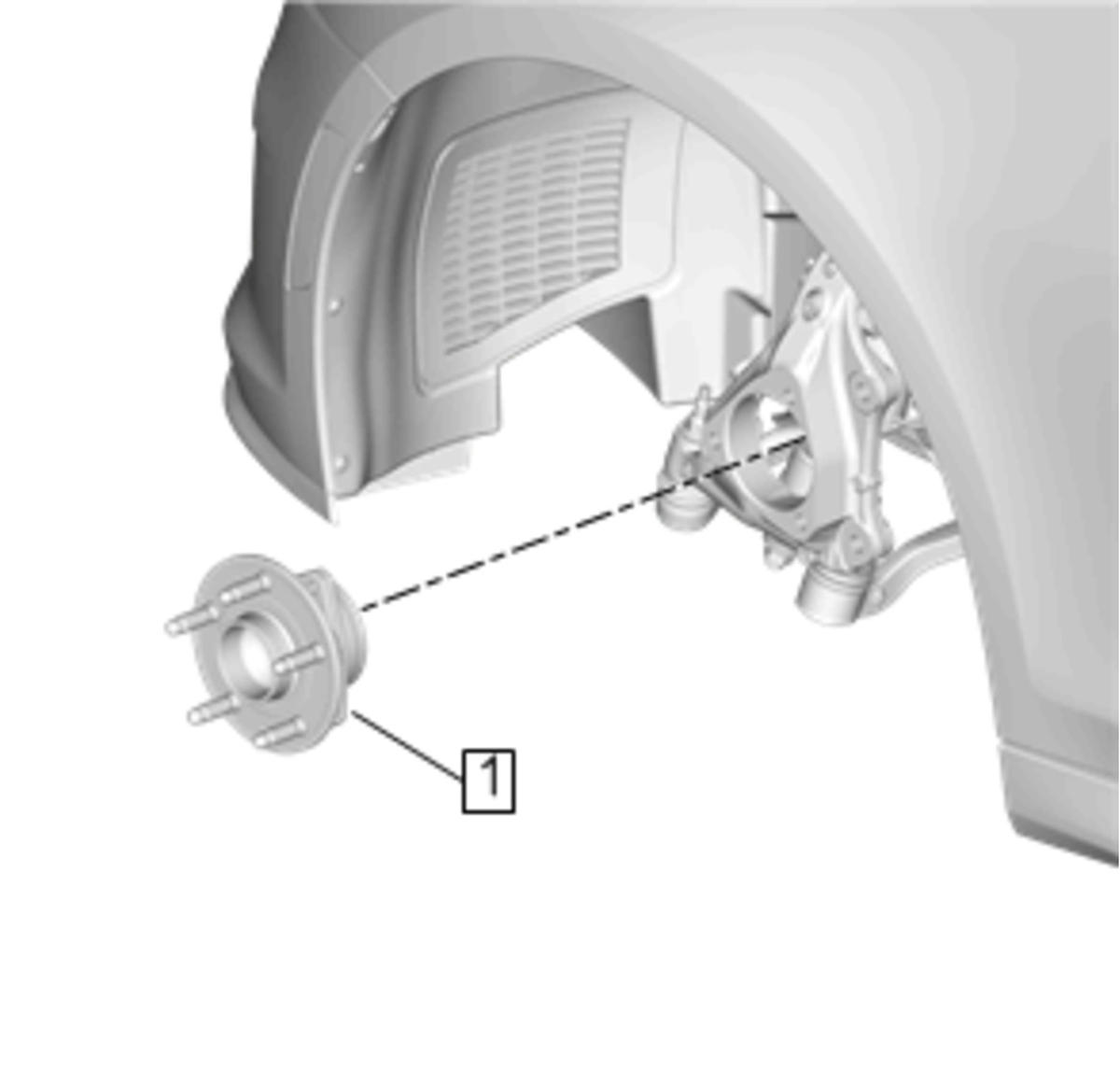

    6. Fig 6: Front Wheel Bearing and Hub
    GM4089785Courtesy of GENERAL MOTORS COMPANY
  6. Install Front Wheel Bearing and Hub (1). Refer to Front Wheel Bearing and Hub Replacement (V-Series)

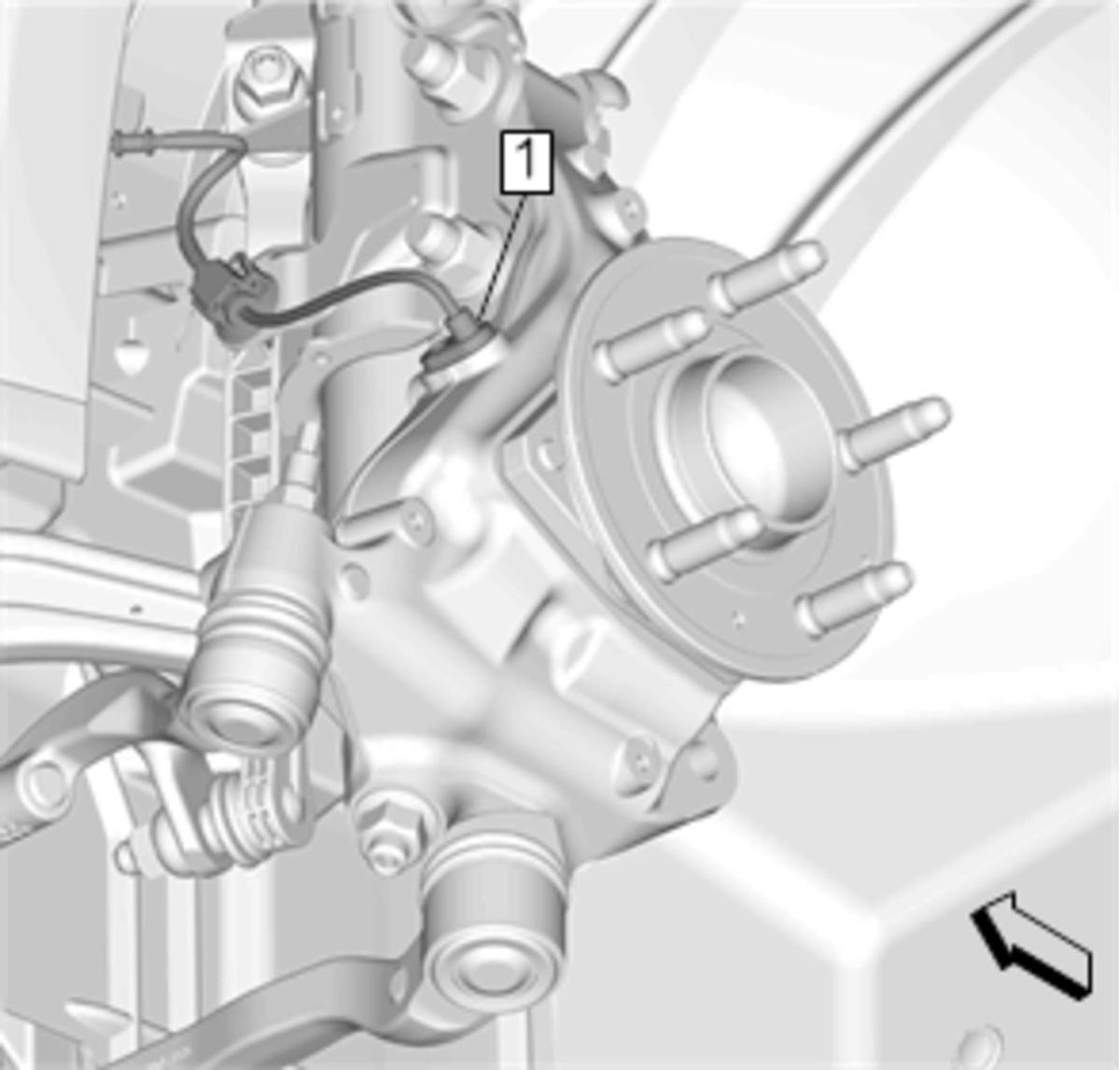

    7. Fig 7: Front Wheel Speed Sensor
    GM4089782Courtesy of GENERAL MOTORS COMPANY
  7. Install Front Wheel Speed Sensor (1) @ Steering Knuckle. Refer to Front Wheel Speed Sensor Replacement

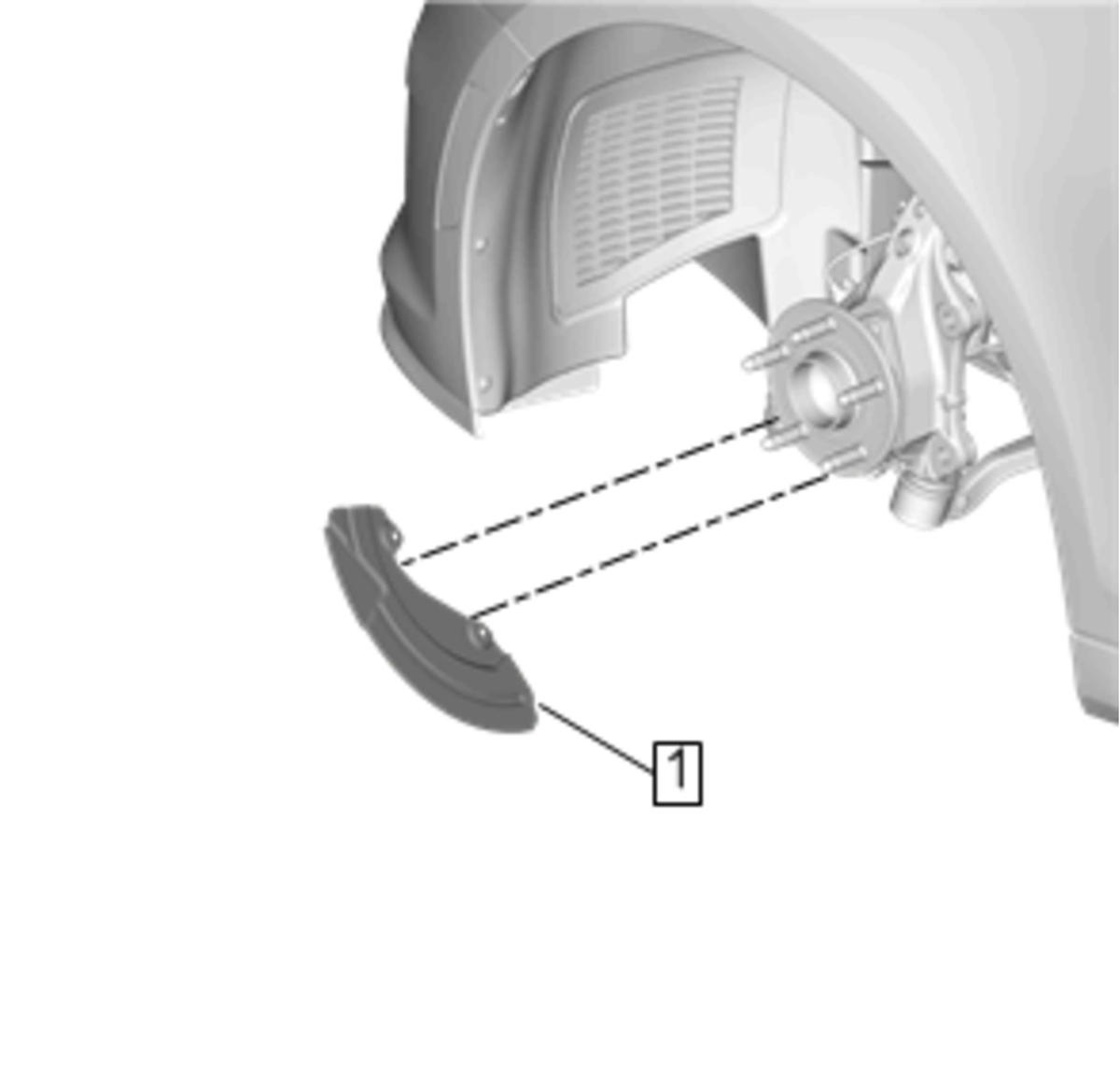

    8. Fig 8: Front Brake Shield
    GM4089780Courtesy of GENERAL MOTORS COMPANY
  8. Install Front Brake Shield (1). Refer to Front Brake Shield Replacement (JE5, J55)Front Brake Shield Replacement (J6G)

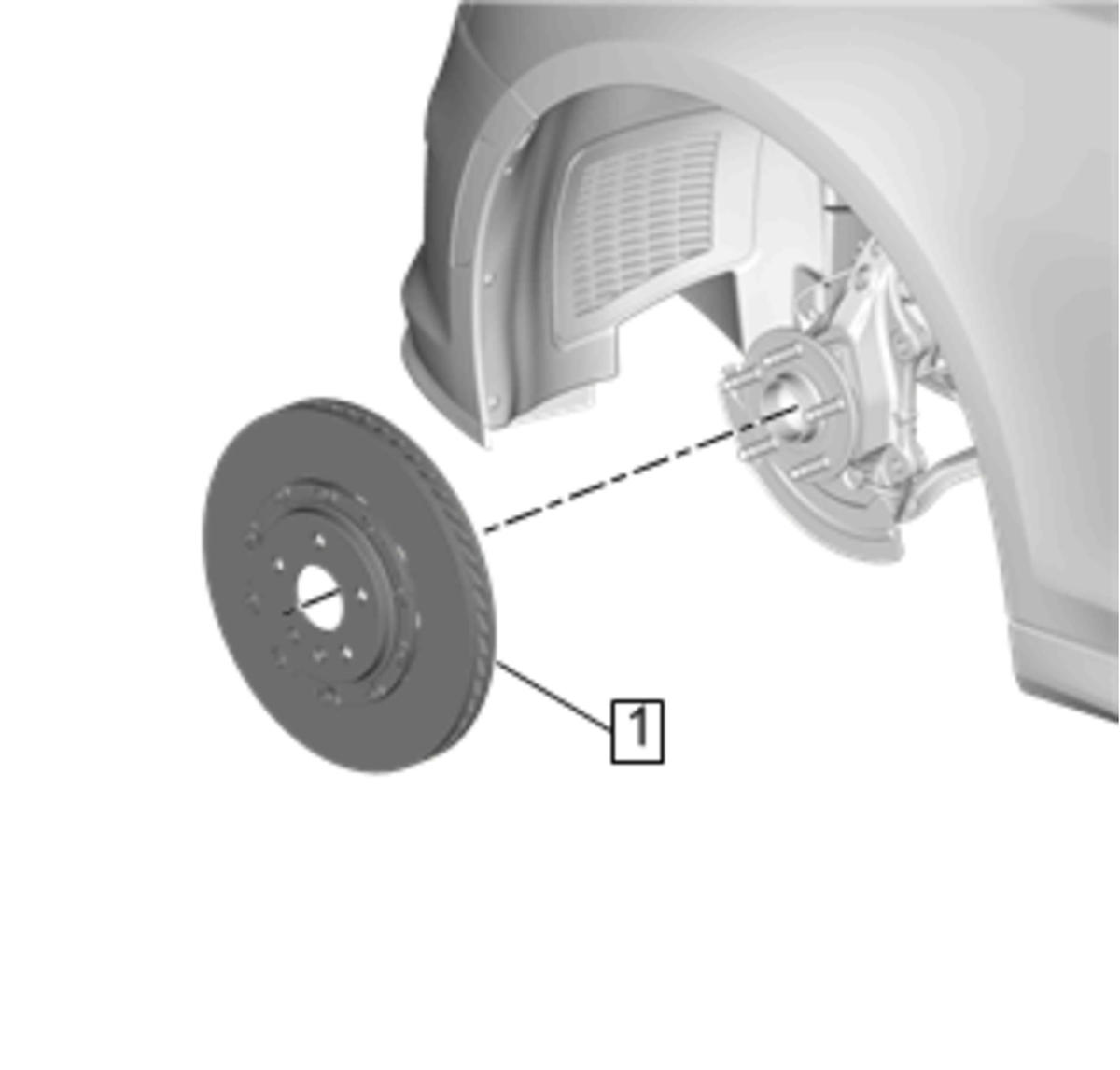

    9. Fig 9: Front Brake Rotor
    GM4089779Courtesy of GENERAL MOTORS COMPANY
  9. Install Front Brake Rotor (1). Refer to Front Brake Rotor Replacement (JE5)Front Brake Rotor Replacement (J55)Front Brake Rotor Replacement (J6G)
  10. Install the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (V-Series)
