Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Front Brake Shield

Courtesy of GENERAL MOTORS COMPANY

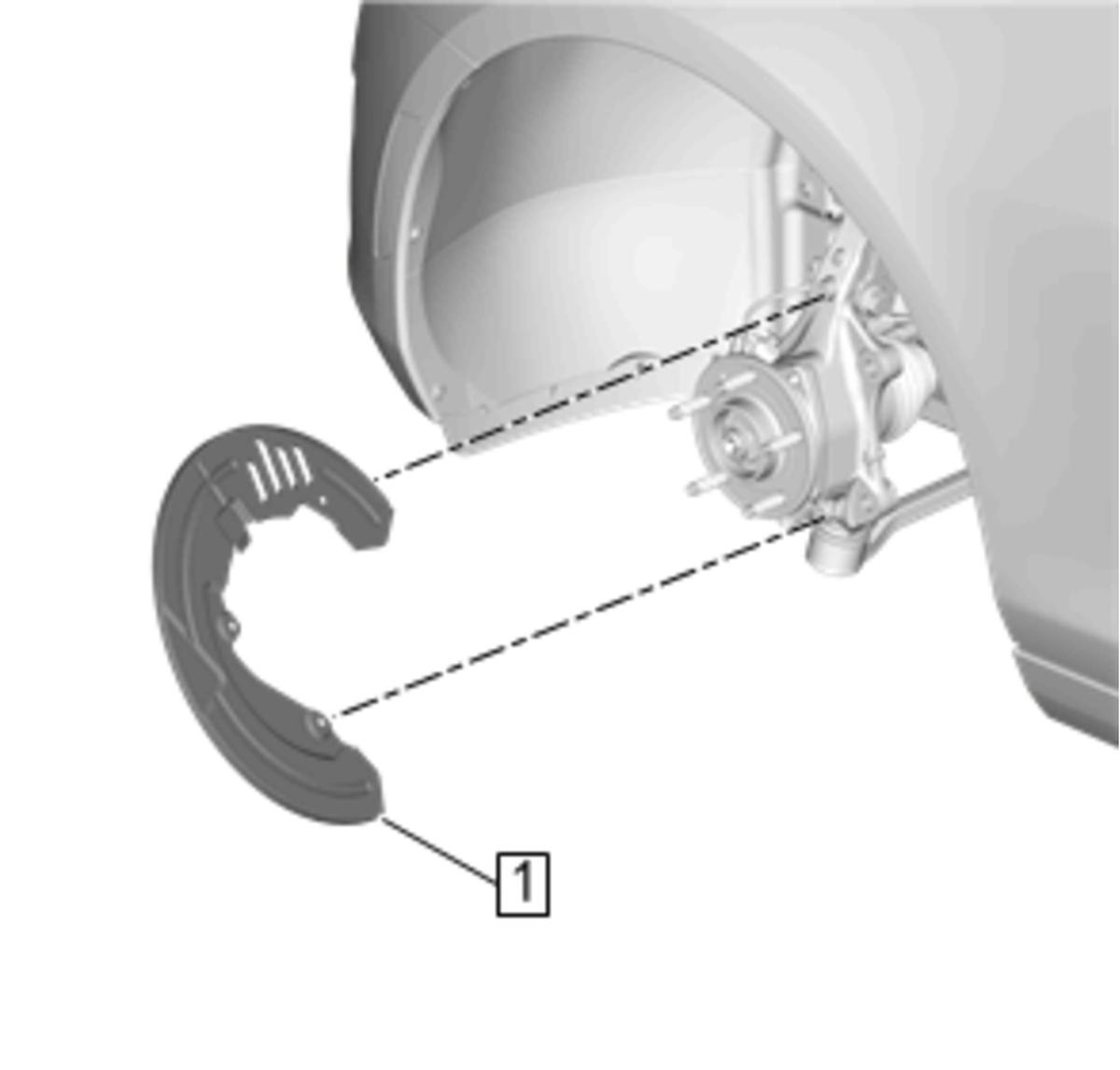

Remove Front Brake Shield (1). Refer to Front Brake Shield Replacement (JE5, J55)Front Brake Shield Replacement (J6G)

Fig 2: Front Wheel Bearing and Hub Assembly

Courtesy of GENERAL MOTORS COMPANY

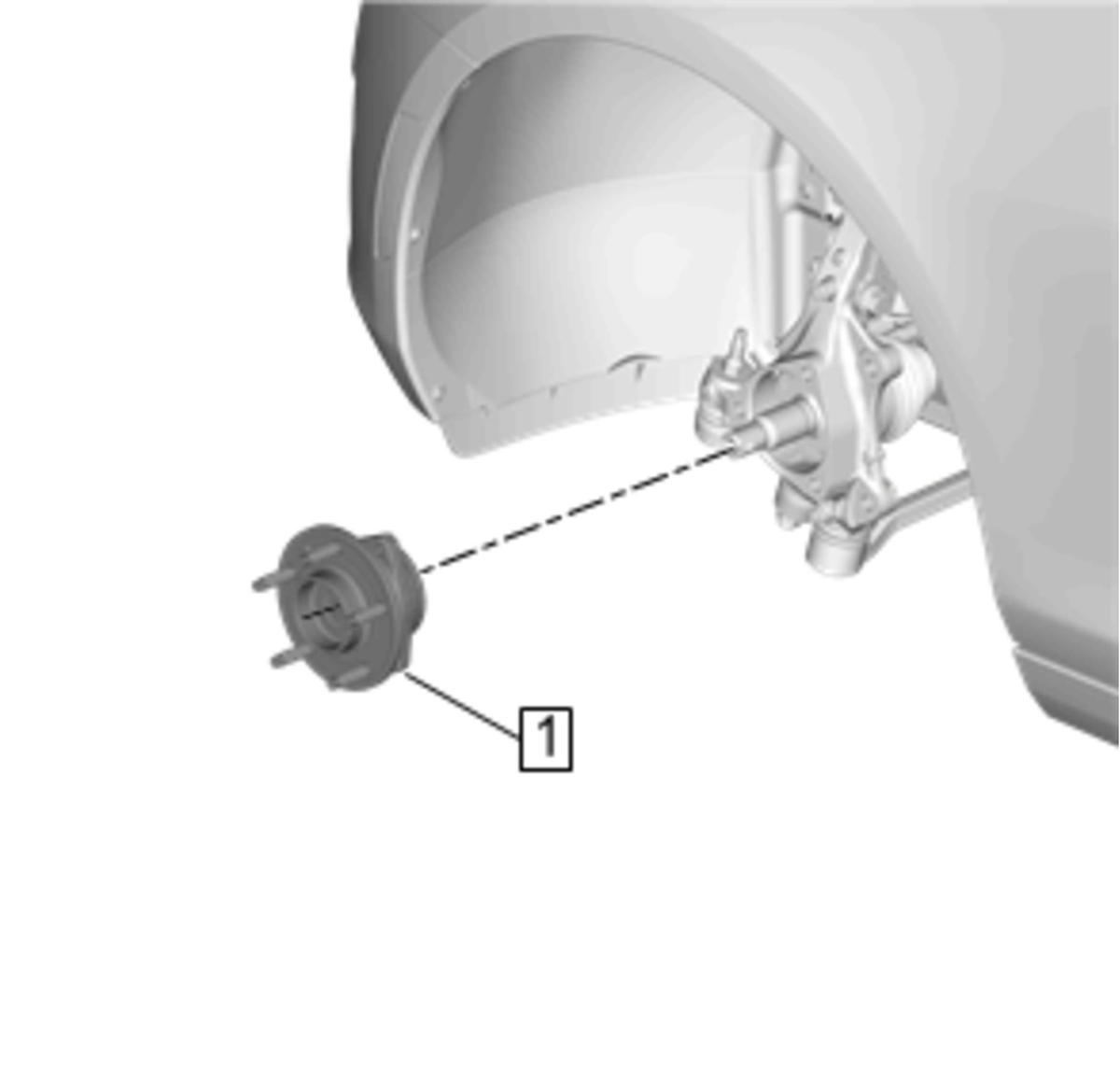

Remove Front Wheel Bearing and Hub Assembly (1). Refer to Front Wheel Bearing and Hub Replacement (Non V-Series With AWD)

Fig 3: Steering Linkage Outer Tie Rod to Steering Knuckle

Courtesy of GENERAL MOTORS COMPANY

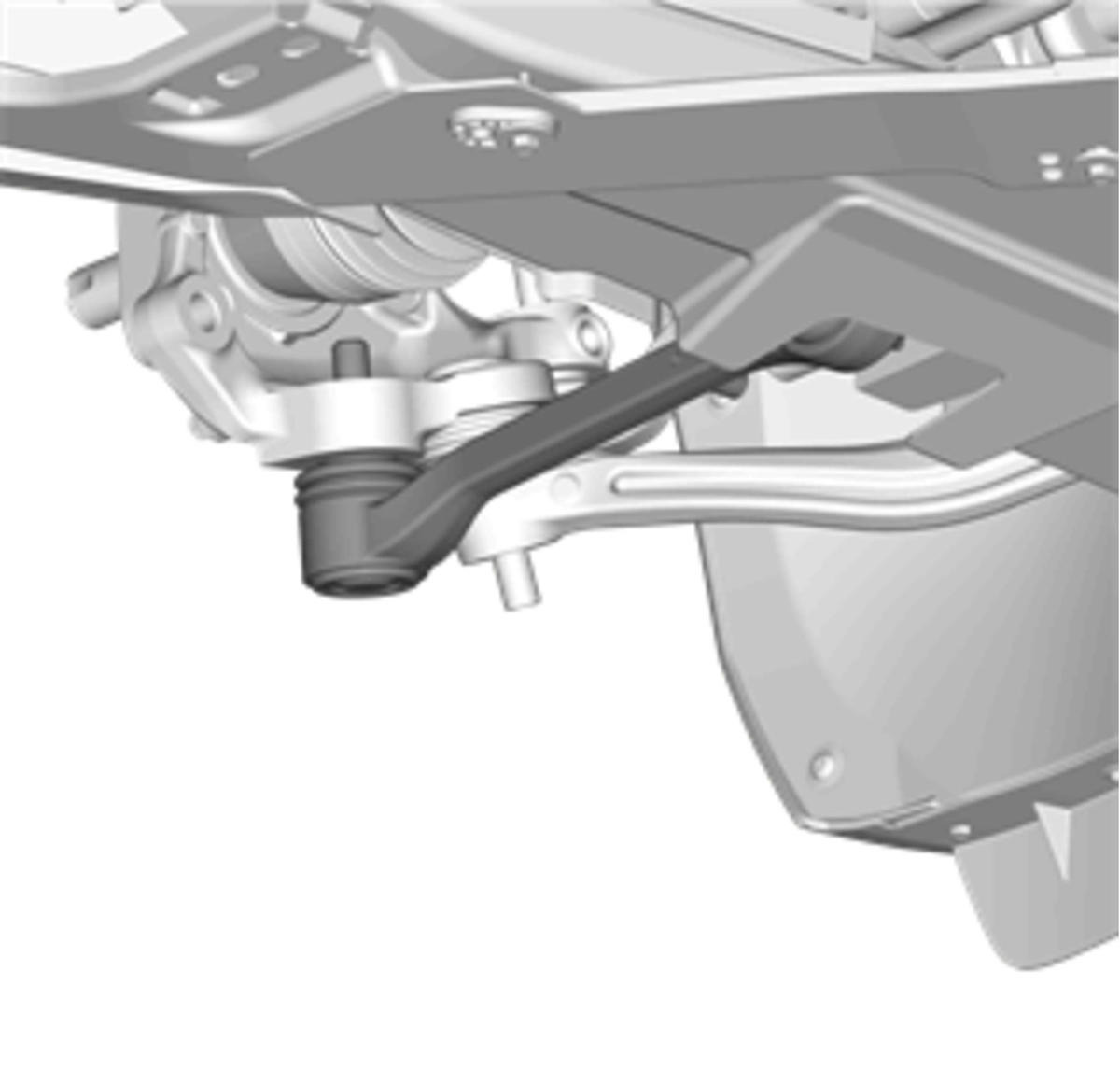

Separate Steering Linkage Outer Tie Rod (1) @ Steering Knuckle. Refer to Steering Linkage Outer Tie Rod Replacement (Non V-Series)

Fig 4: Front Lower Control Front Link to Steering Knuckle

Courtesy of GENERAL MOTORS COMPANY

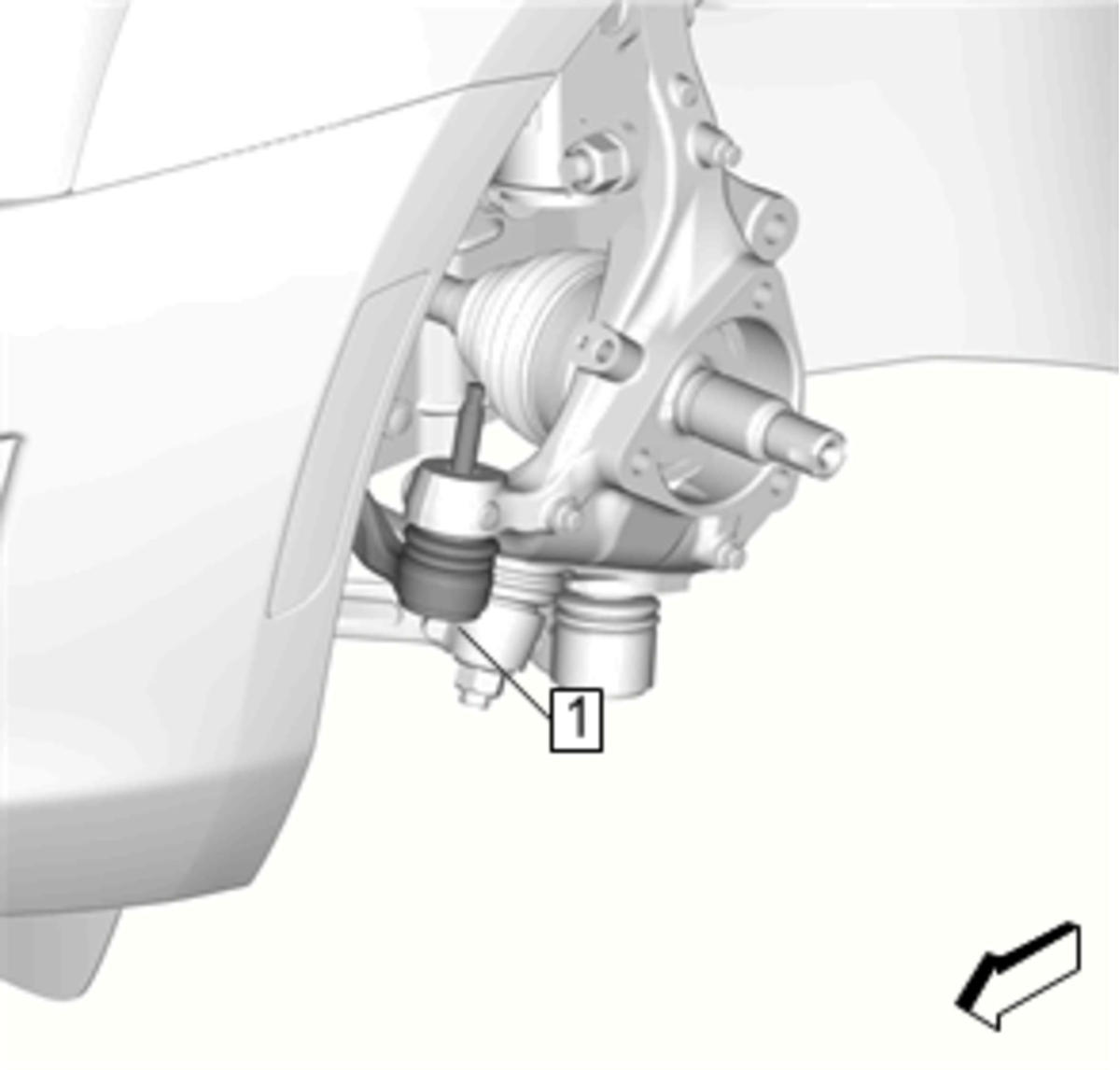

Separate Front Lower Control Front Link (1) @ Steering Knuckle. Refer to Front Lower Control Front Link Replacement (Non V-Series With AWD)

Fig 5: Front Lower Control Rear Link to Steering Knuckle

Courtesy of GENERAL MOTORS COMPANY

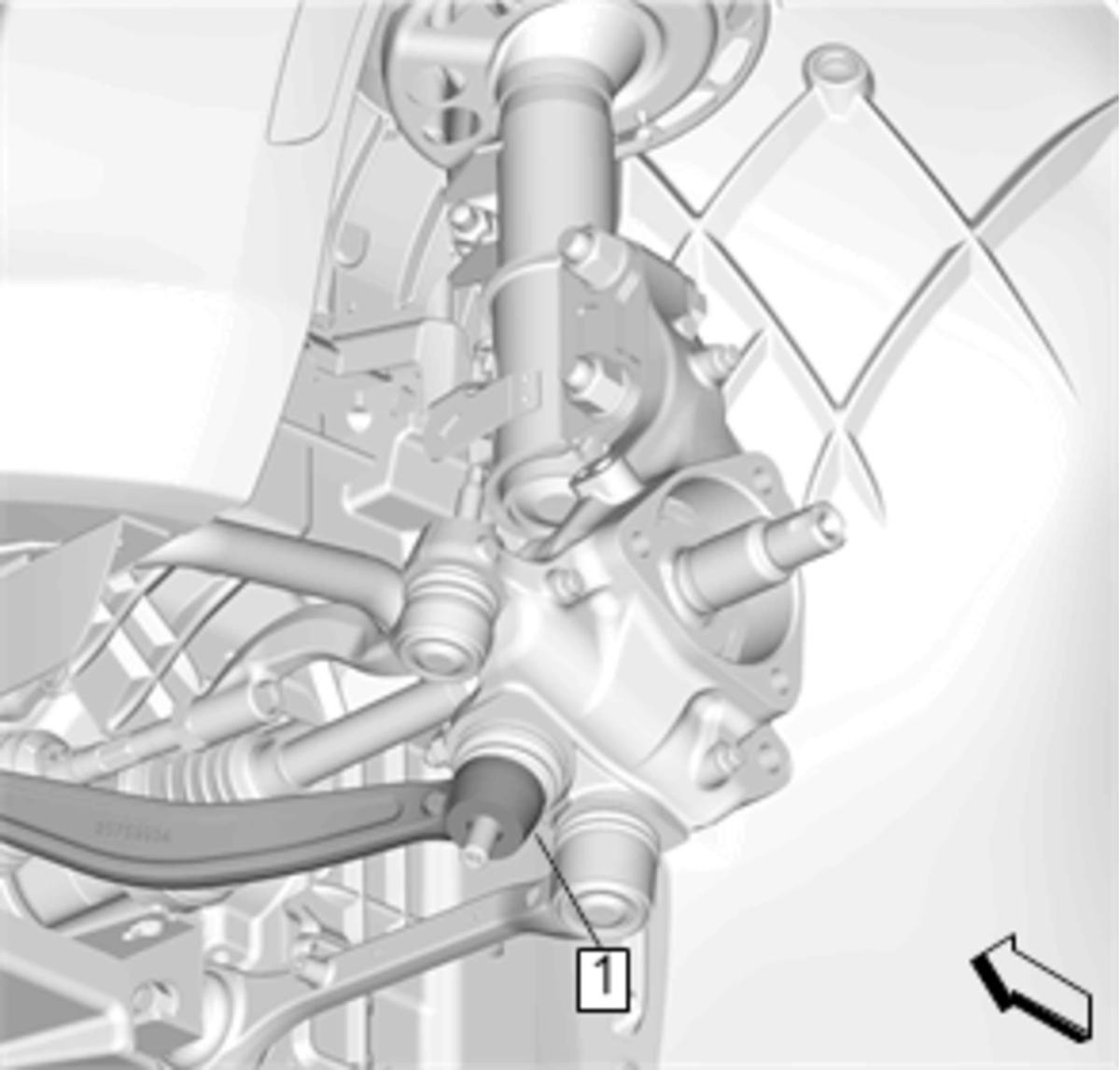

Separate Front Lower Control Rear Link (1) @ Steering Knuckle. Refer to Front Lower Control Rear Link Replacement (Non V-Series)

Fig 6: Strut Assembly to Steering Knuckle

Courtesy of GENERAL MOTORS COMPANY

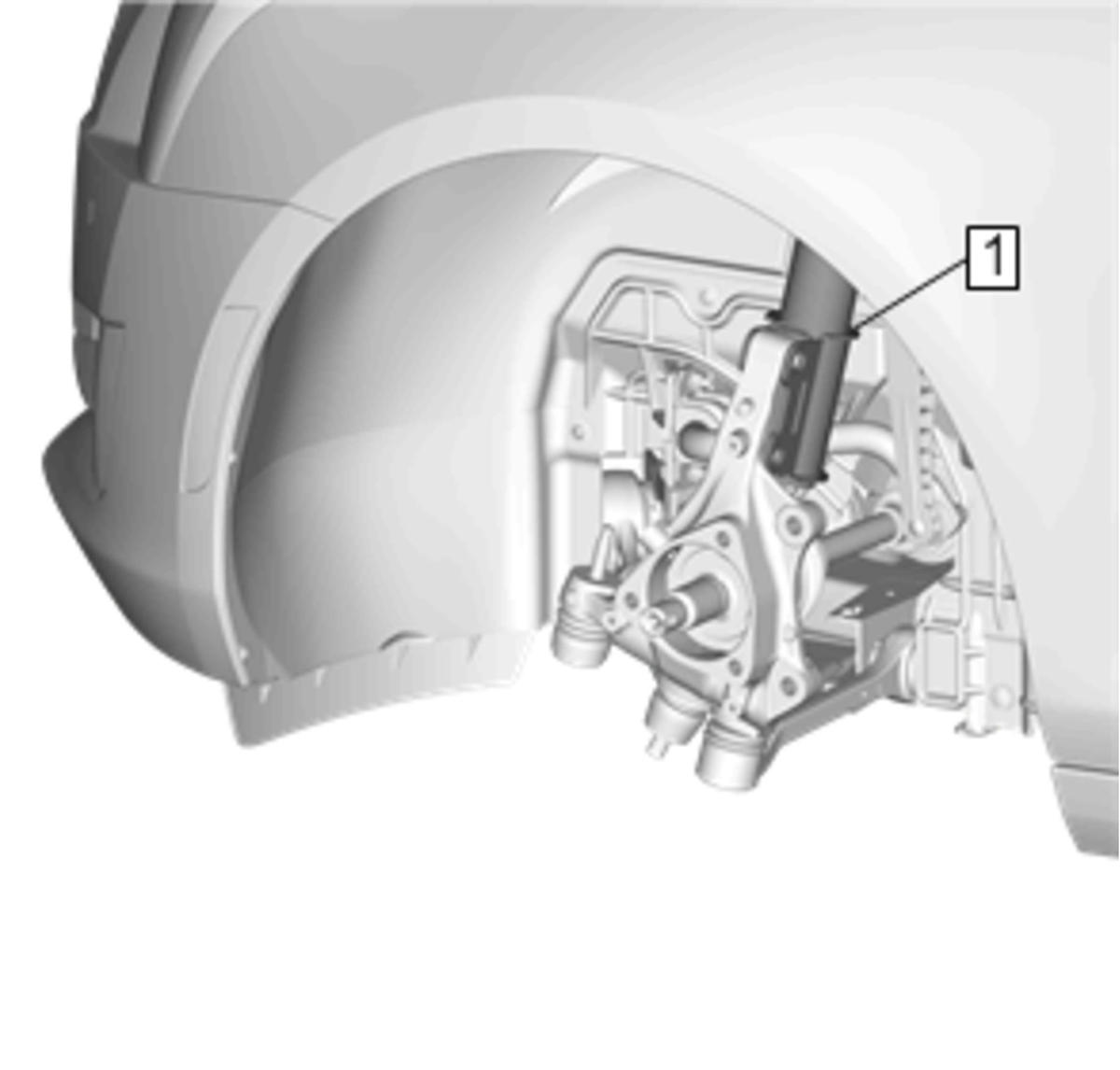

Separate Strut Assembly (1) @ Steering Knuckle. Refer to Strut Assembly Removal and Installation (FE2 or FE3 With F55) Strut Assembly Removal and Installation (FE2 Without F55) Strut Assembly Removal and Installation (FE4 With F55)

Fig 7: Steering Knuckle

Courtesy of GENERAL MOTORS COMPANY

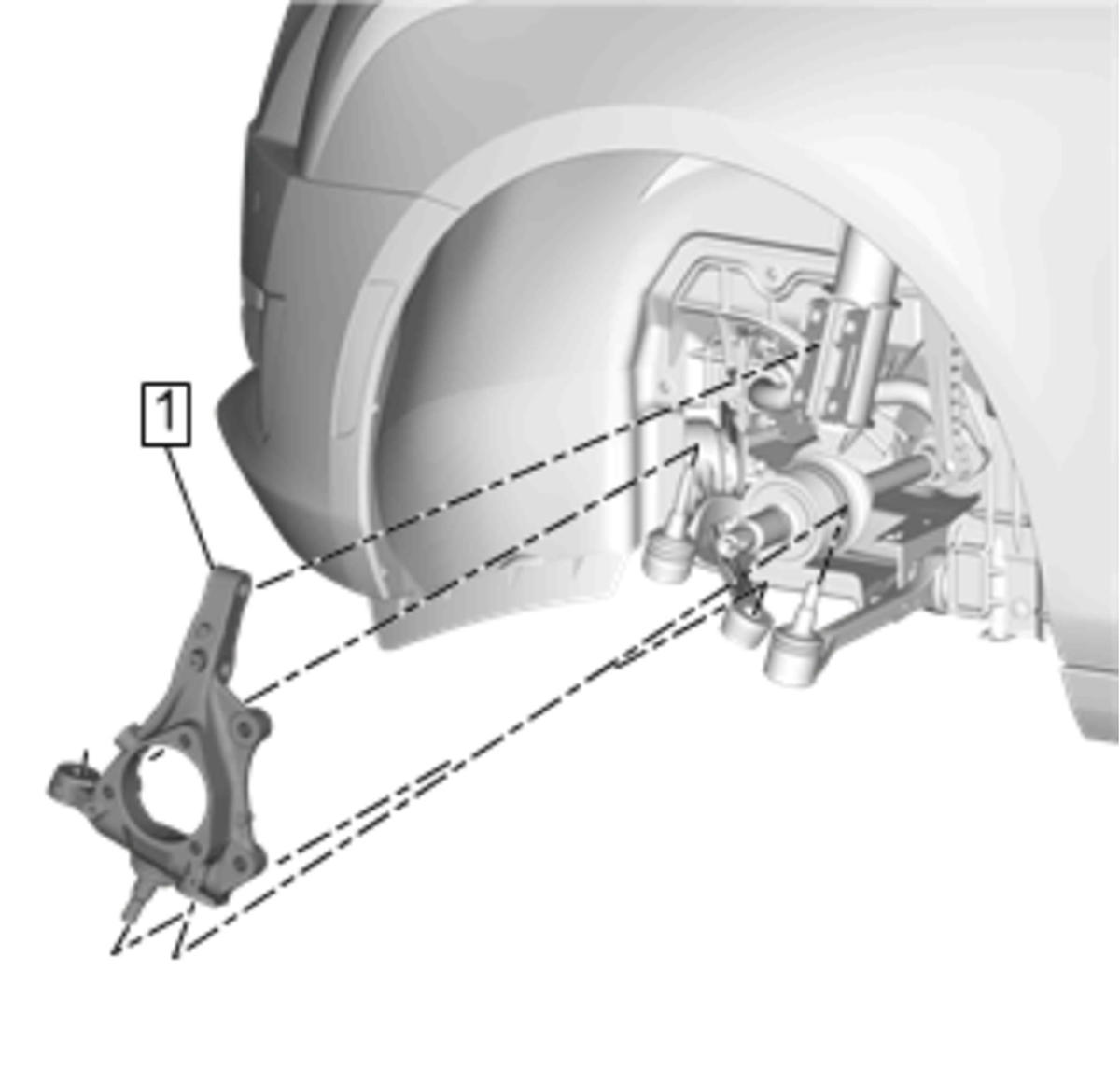

Remove the steering knuckle (1) from the vehicle.
