Installation Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

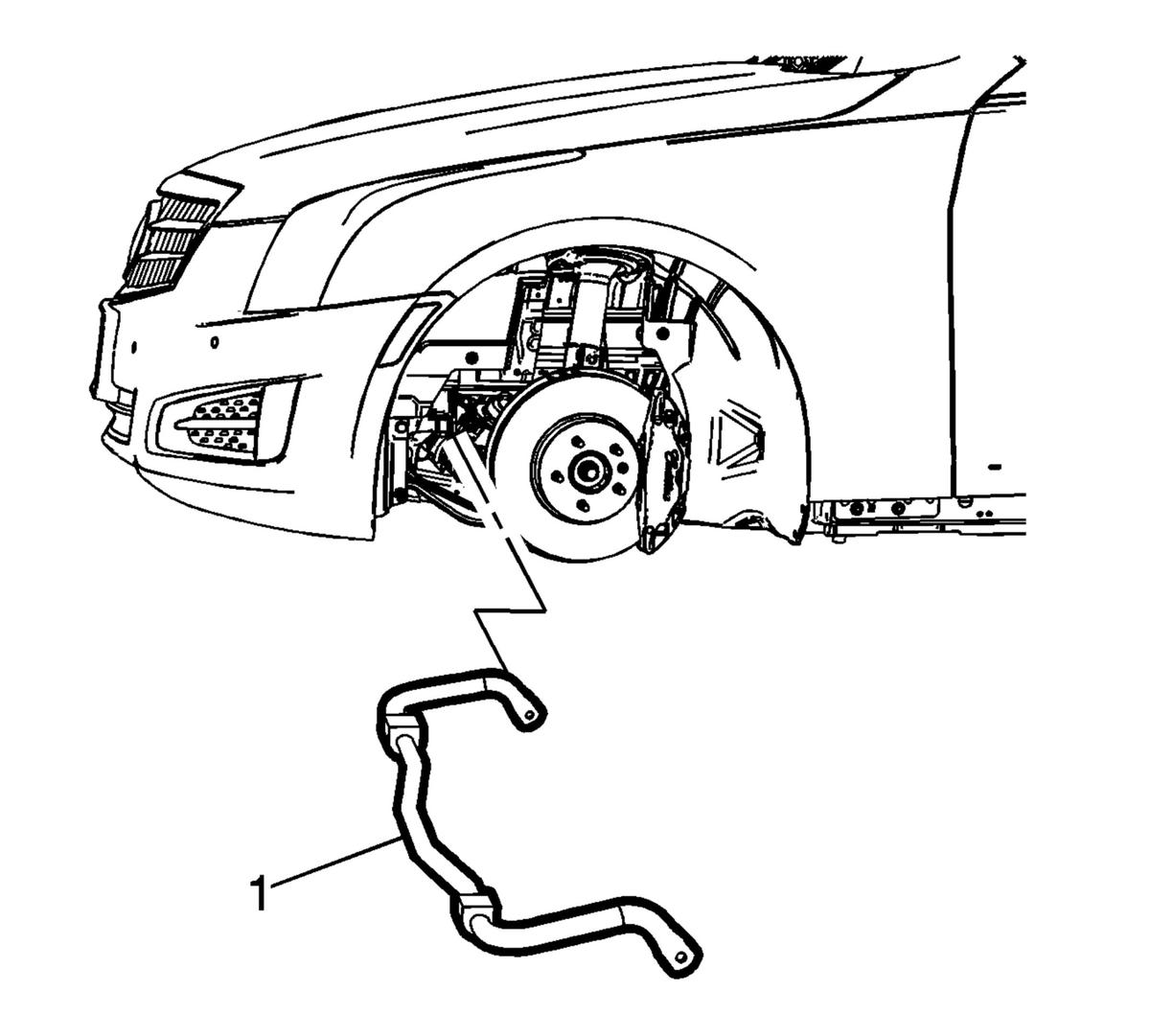

- Install Front Stabilizer Shaft (1)

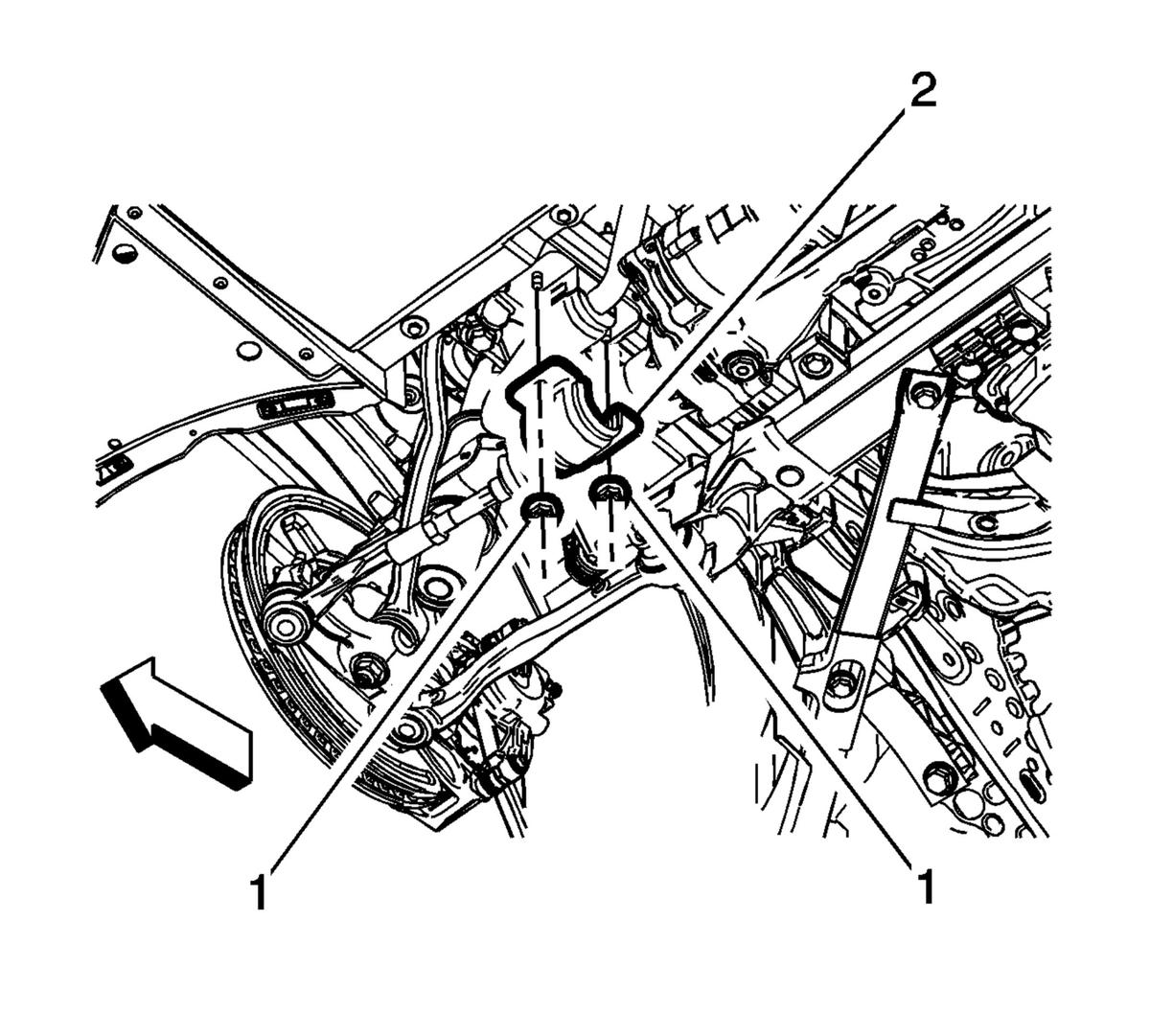

- Using a swivel socket, install the right side front stabilizer shaft insulator clamp (2) and nuts (1) and tighten the nuts to 22 N.m (16 lb ft).

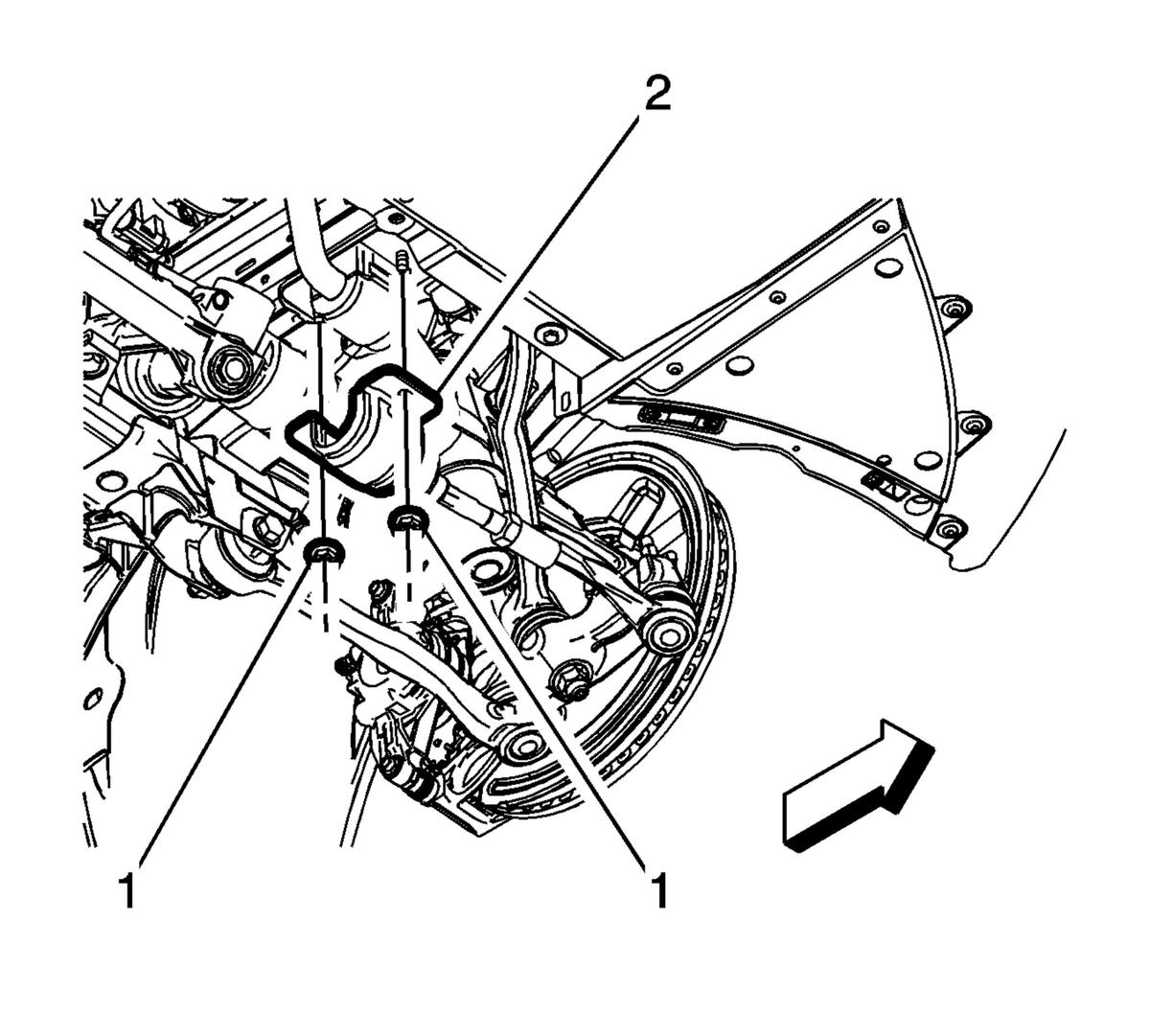

- Using a swivel socket, install the left side front stabilizer shaft insulator clamp (2) and nuts (1) and tighten the nuts to 22 N.m (16 lb ft).
- {If equipped} Install Engine Mount Vacuum Tank. Refer to Engine Mount Vacuum Tank Replacement
- Connect the steering gear electrical connectors.
- Install Front Stabilizer Shaft Link (Qty: 2) @ Front Stabilizer Shaft. Refer to Stabilizer Shaft Link Replacement (Non V-Series)
- Install Front Air Deflector. Refer to Front Air Deflector Replacement
- Install Engine Compartment Lower Noise Shield. Refer to Engine Compartment Lower Noise Shield Replacement (Front Wheel Drive)
- Install the front tire and wheel assemblies. Refer to Tire and Wheel Removal and Installation (Non V-Series)
CAUTION:
Refer to Fastener Caution .
CAUTION:
Use caution when removing components surrounding the Steering Gear Boots. Avoid tool contact with the steering gear boot and clamps. Damage to the steering gear boot may lead to dirt and water contamination in the steering gear rack and components requiring a preventable replacement of the Steering Gear and its Components.
