Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the drivetrain and front suspension frame to create enough room to remove the front stabilizer shaft. Refer to Drivetrain and Front Suspension Frame Removal and Installation (LGX, LTG)

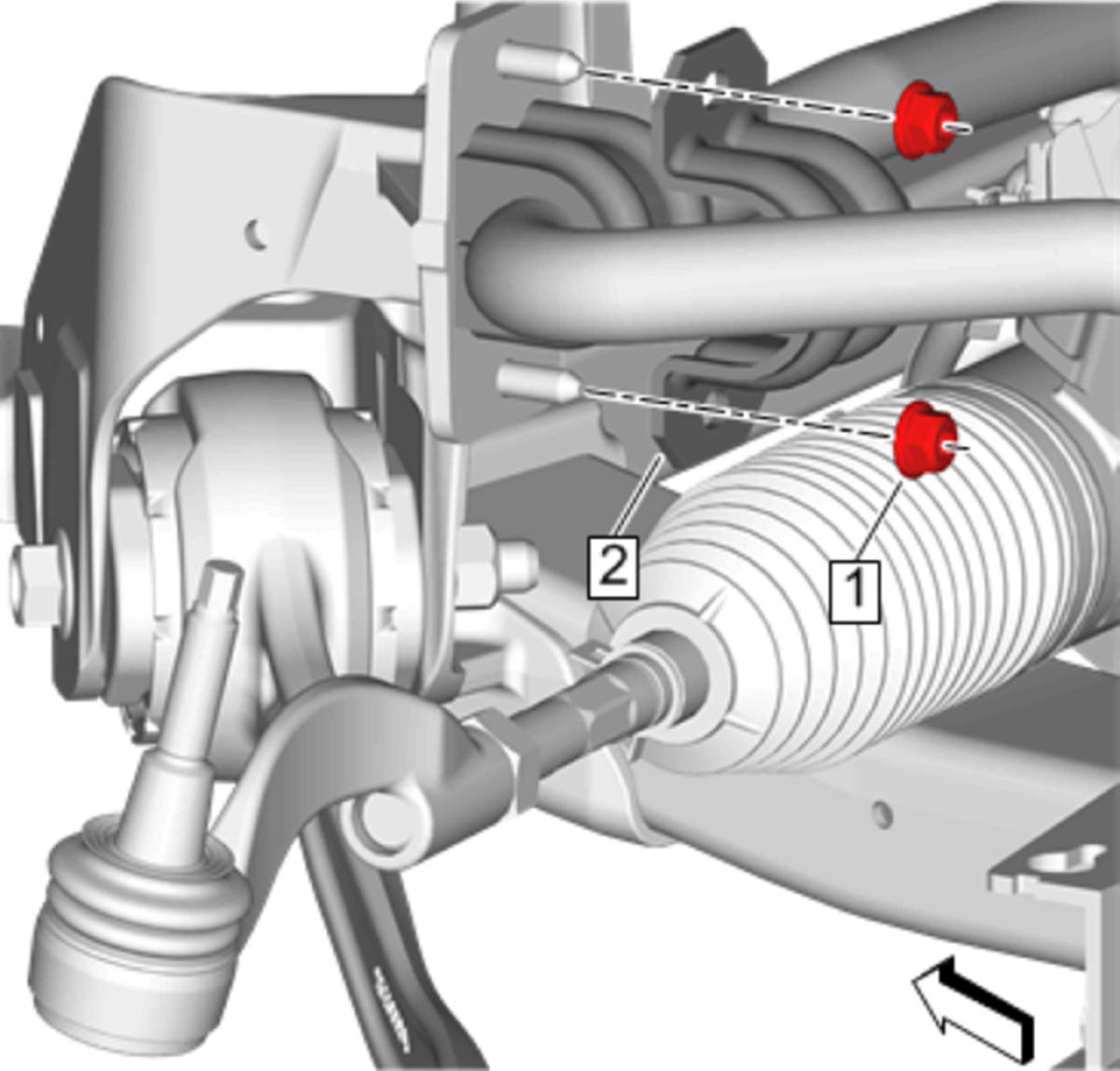

    2. Fig 1: Front Stabilizer Shaft Insulator Clamps And Nuts
    GM4592605Courtesy of GENERAL MOTORS COMPANY
  2. Remove the front stabilizer shaft insulator clamp nuts (1) from each side.
  3. Remove the front stabilizer shaft insulator clamps (2) from each side.

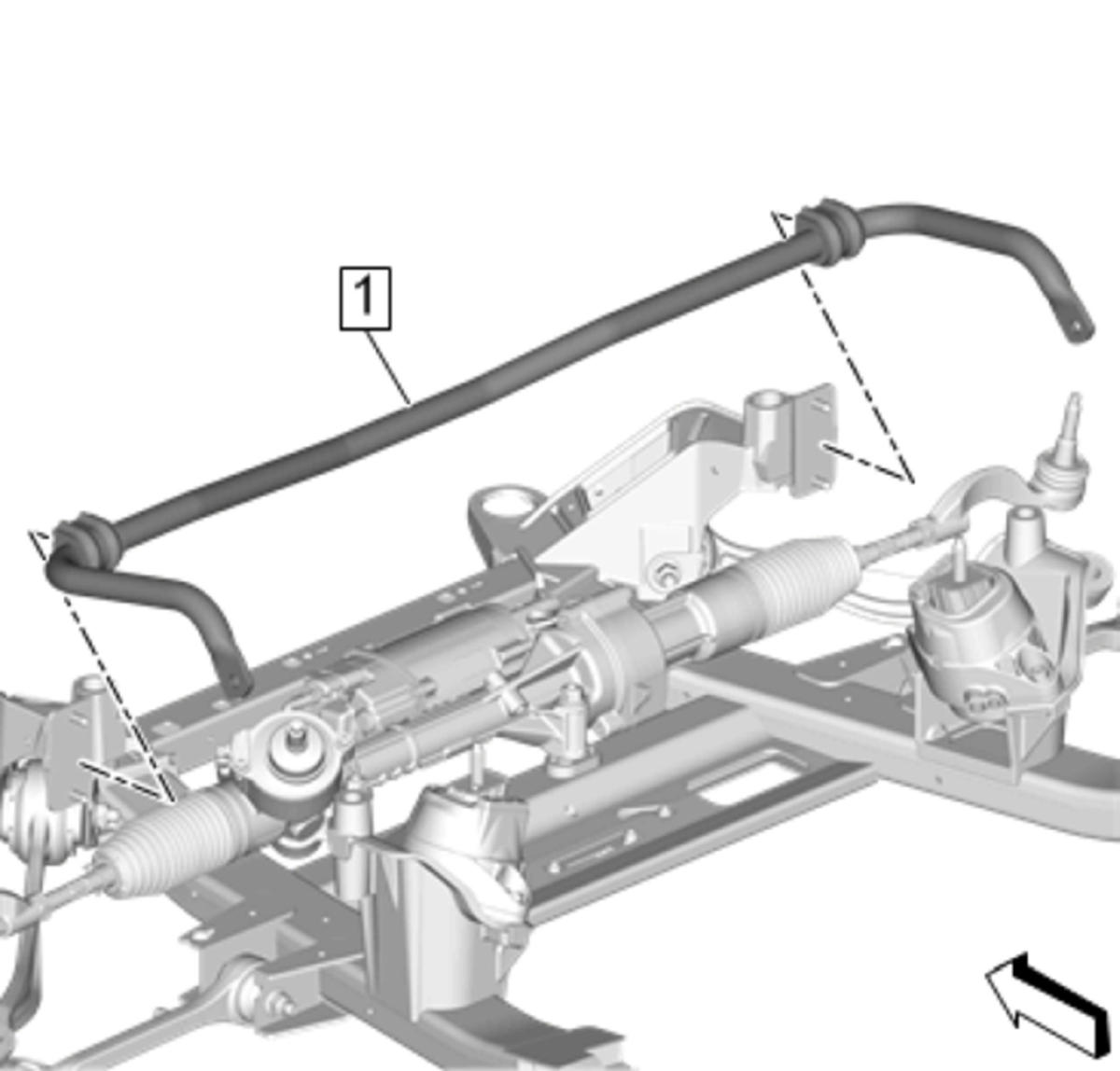

    4. Fig 2: Front Stabilizer Shaft
    GM4592607Courtesy of GENERAL MOTORS COMPANY
  4. Remove the front stabilizer shaft (1) from the drivetrain and front suspension frame.
    5. NOTE:

    Note the alignment of the front stabilizer shaft insulators before transferring.

  5. Transfer components as necessary.
