Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

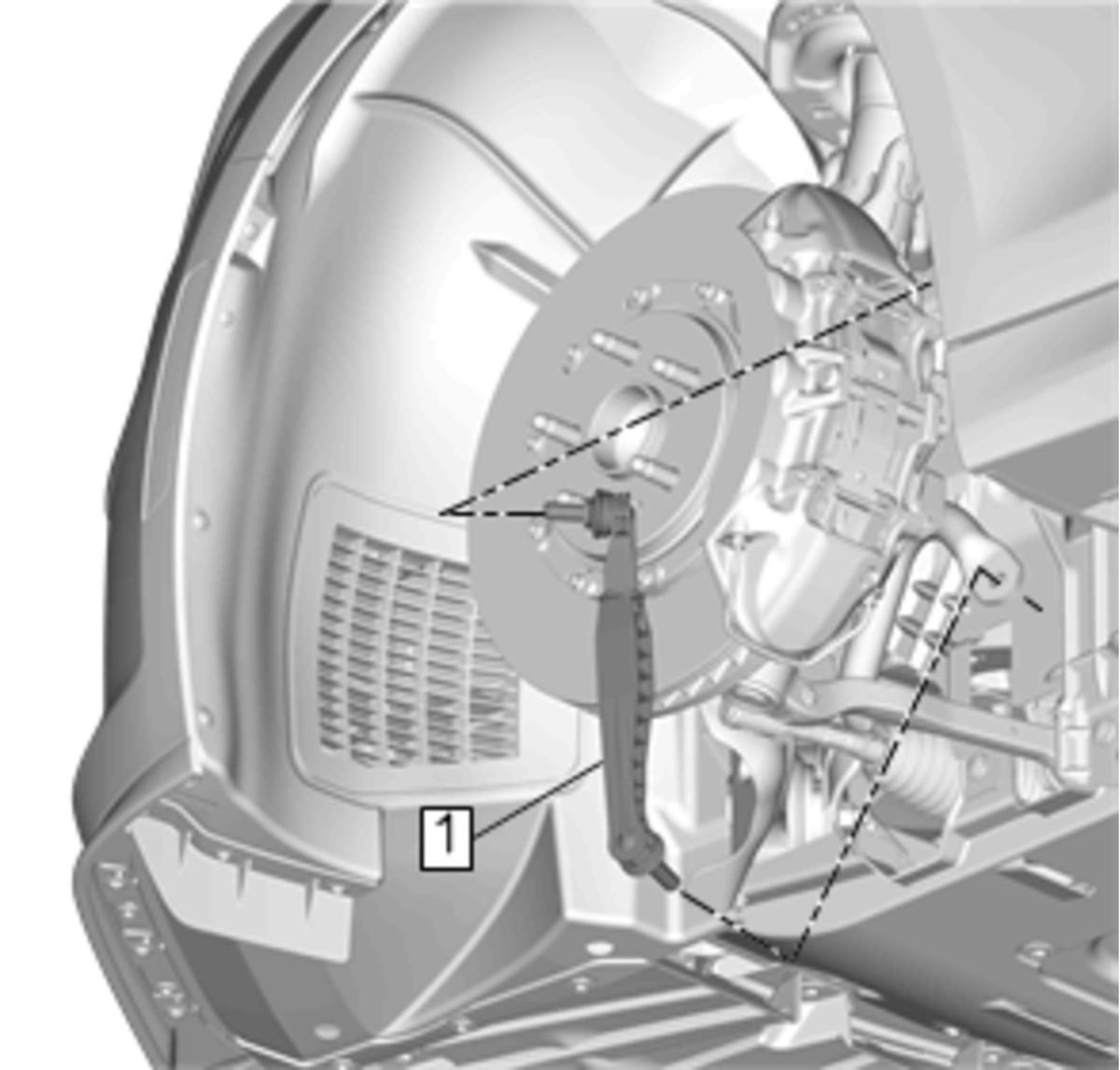

    Fig 1: Stabilizer Shaft Link
    GM4092169Courtesy of GENERAL MOTORS COMPANY
  1. Install Front Stabilizer Shaft Link (1)

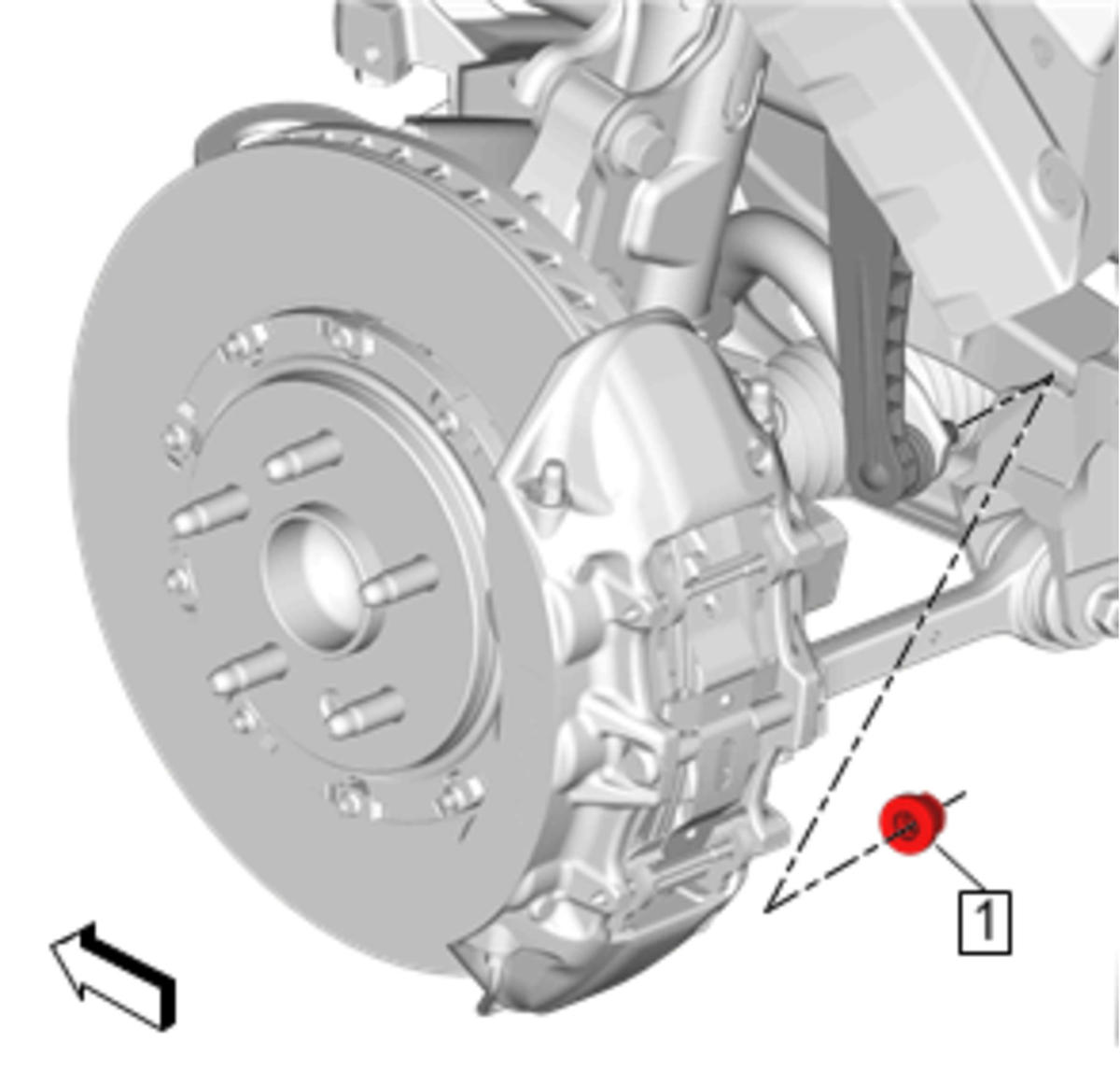

    2. Fig 2: Front Stabilizer Shaft Link Nut
    GM4092163Courtesy of GENERAL MOTORS COMPANY
  2. Install and tighten Front Stabilizer Shaft Link Nut (1) to 100 N.m (74 lb ft)

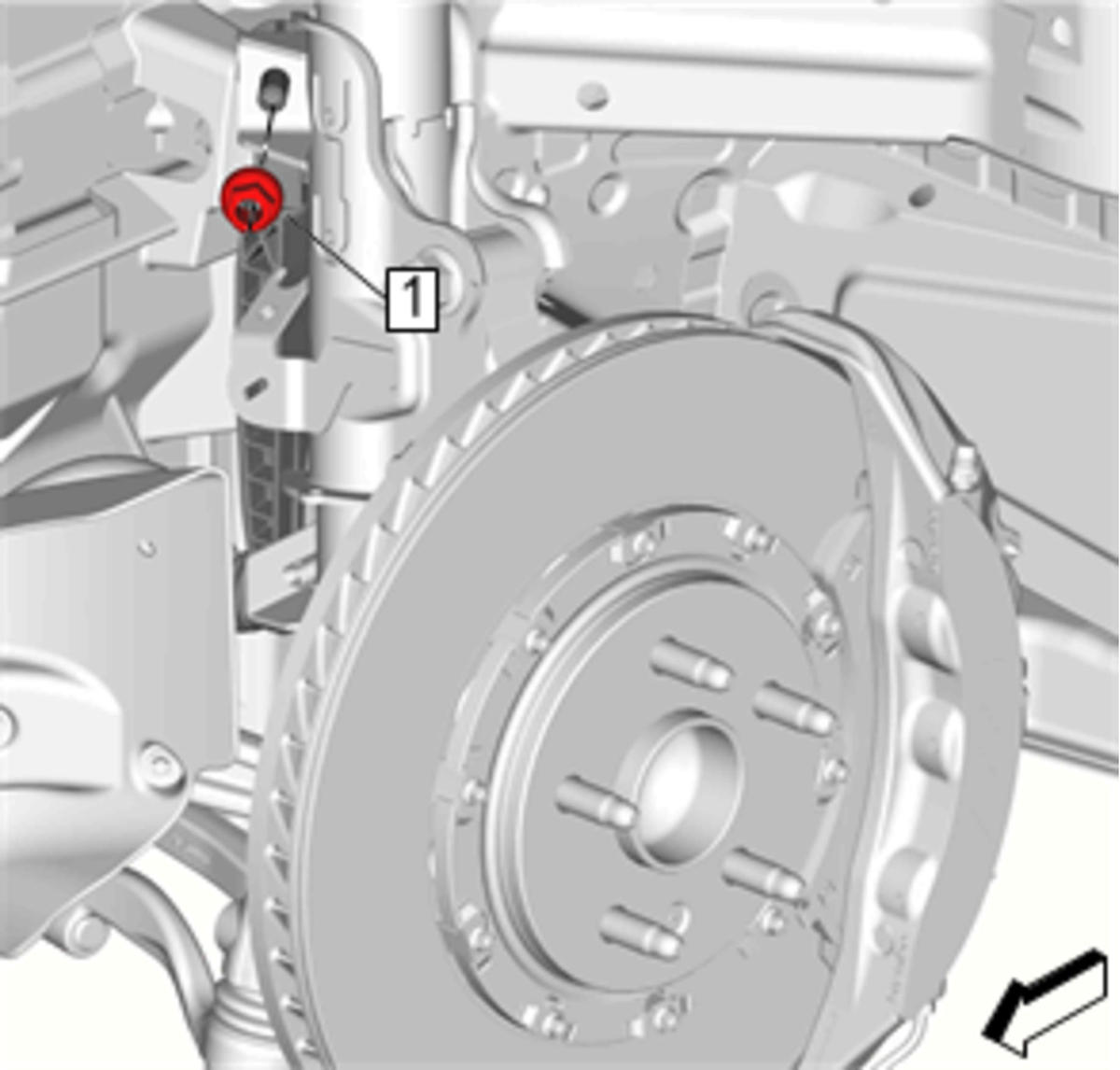

    3. Fig 3: Front Stabilizer Shaft Link Nut
    GM4092159Courtesy of GENERAL MOTORS COMPANY
  3. Install and tighten Front Stabilizer Shaft Link Nut (1) to 100 N.m (74 lb ft)
  4. Install the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (V-Series)
