Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (Non V-Series)

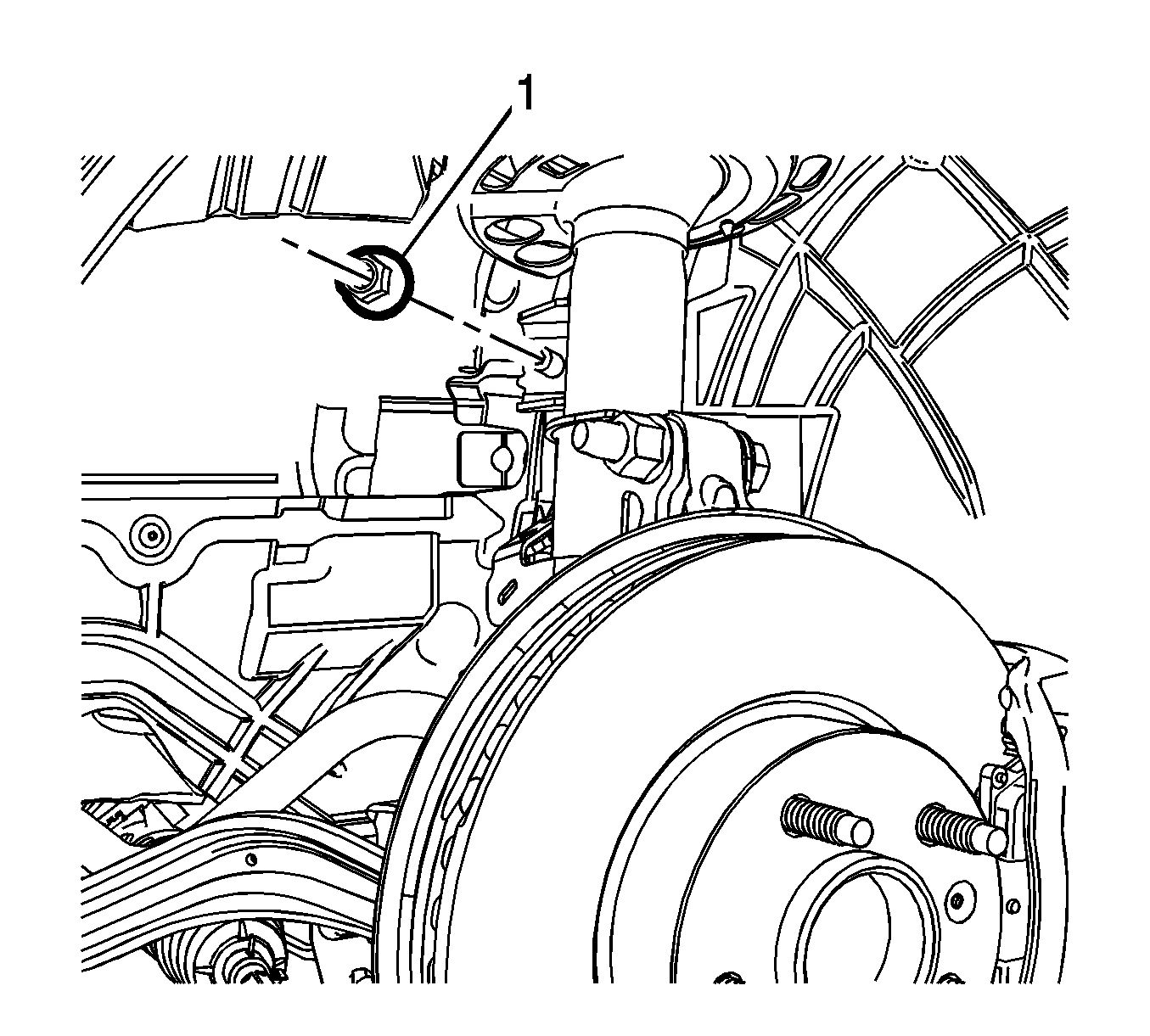

    2. Fig 1: Upper Stabilizer Shaft Link Nut
    GM2811082Courtesy of GENERAL MOTORS COMPANY
  2. Remove Front Stabilizer Shaft Link Nut (1)

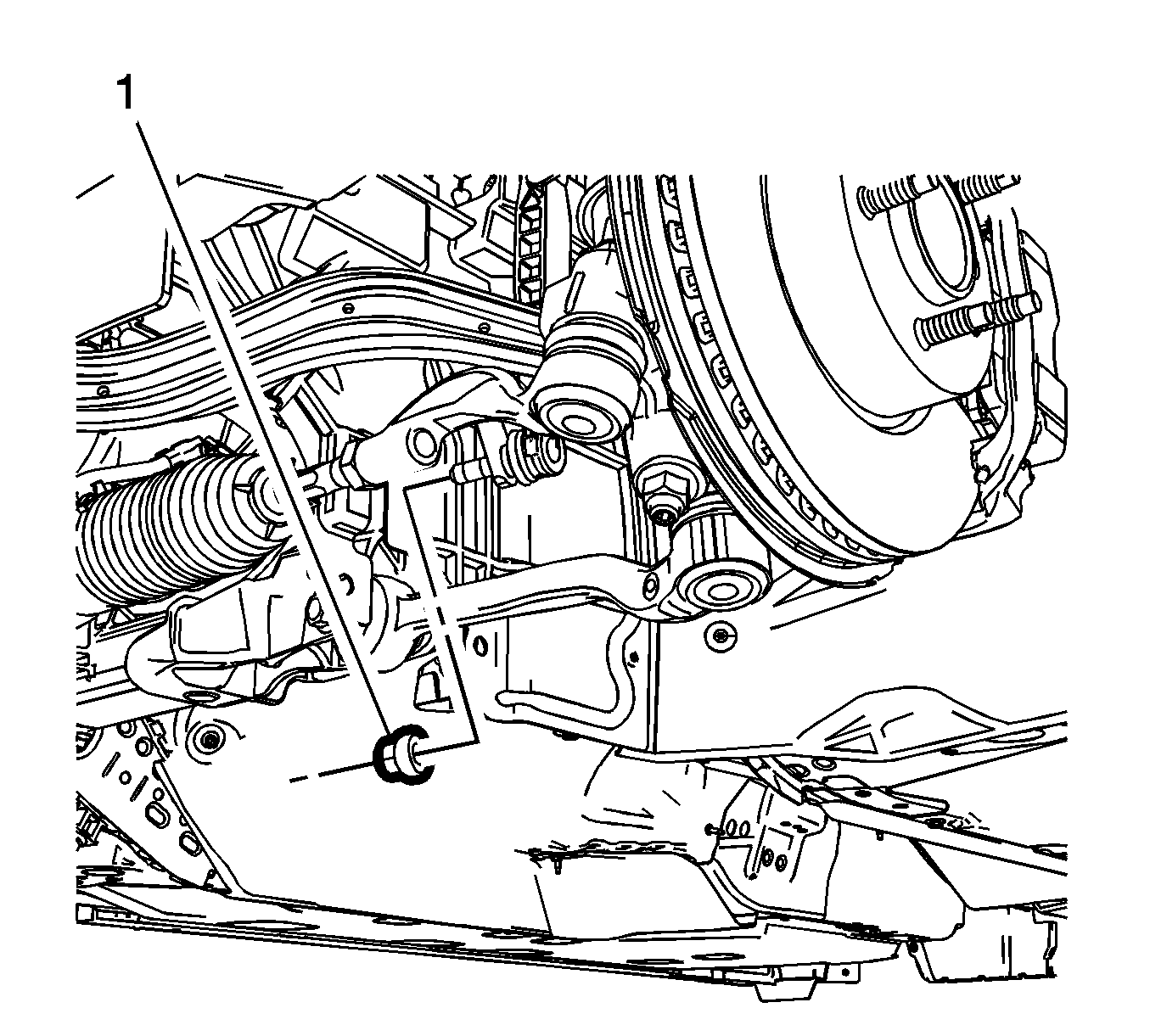

    3. Fig 2: Lower Stabilizer Shaft Link Nut
    GM2811090Courtesy of GENERAL MOTORS COMPANY
  3. Remove Front Stabilizer Shaft Link Nut (1)

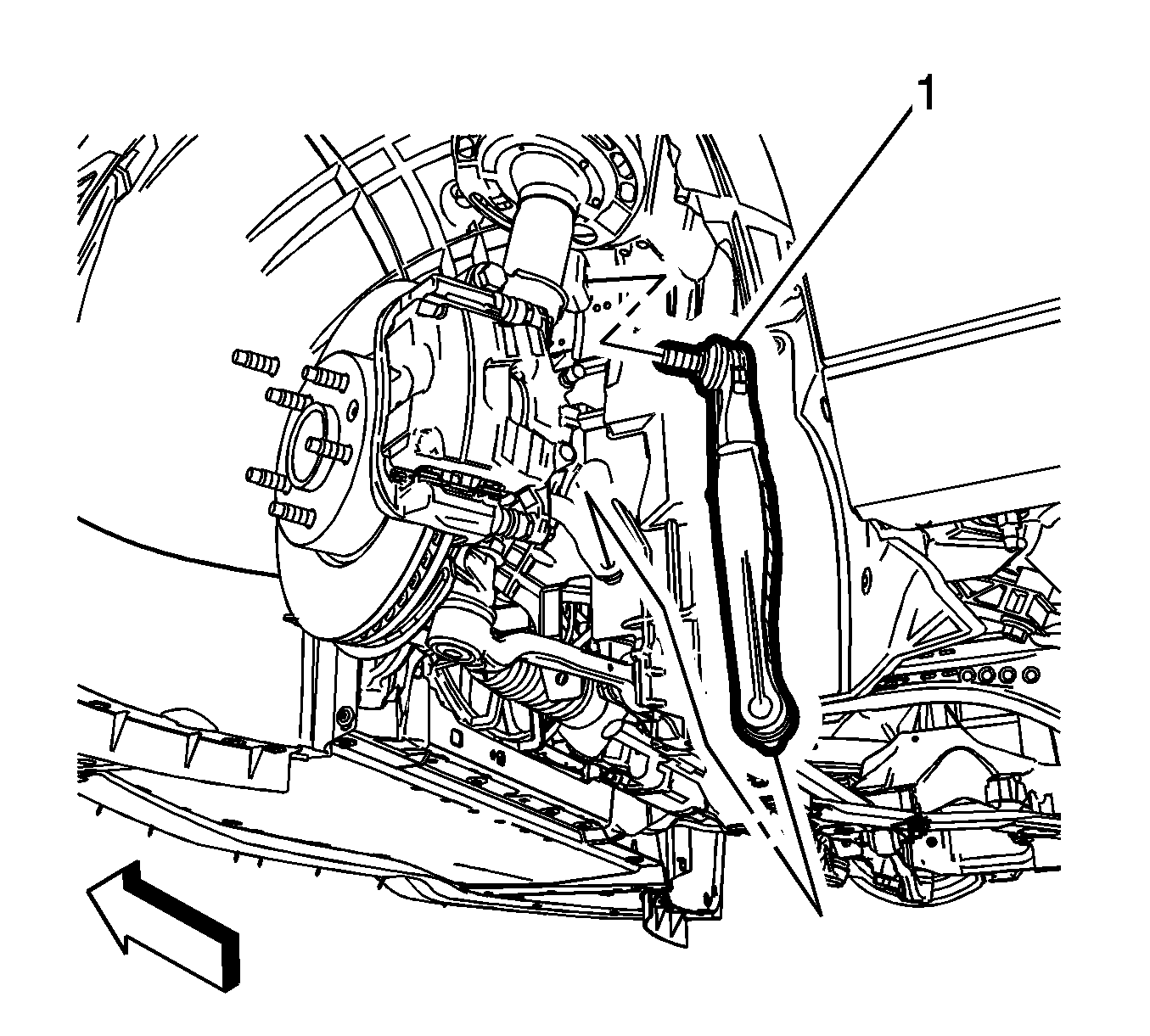

    4. Fig 3: Stabilizer Shaft Link
    GM2811099Courtesy of GENERAL MOTORS COMPANY
  4. Remove Front Stabilizer Shaft Link (1)
