Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (V-Series)
    2. Fig 1: Front Brake Rotor Cooling Duct Deflector
    GM4093533Courtesy of GENERAL MOTORS COMPANY
  2. Remove Front Brake Rotor Cooling Duct Deflector (1). Refer to Front Brake Rotor Cooling Duct Deflector Replacement
    3. Fig 2: Front Wheelhouse Liner
    GM4093538Courtesy of GENERAL MOTORS COMPANY
  3. Remove Front Wheelhouse Liner (1). Refer to Front Wheelhouse Liner Replacement (V-Series)
    4. Fig 3: Front Compartment Lower Noise Shield
    GM4093542Courtesy of GENERAL MOTORS COMPANY
  4. Remove Front Compartment Lower Noise Shield (1). Refer to Front Compartment Lower Noise Shield Replacement (Front Wheel Drive)
    5. Fig 4: Front Stabilizer Shaft Link
    GM4223766Courtesy of GENERAL MOTORS COMPANY
  5. Separate Front Stabilizer Shaft Link (1) @ Strut Assembly. Refer to Stabilizer Shaft Link Replacement (V-Series)
    6. Fig 5: Strut Assembly
    GM4217624Courtesy of GENERAL MOTORS COMPANY
  6. Separate Strut Assembly (1) @ Steering Knuckle. Refer to Strut Assembly Removal and Installation (FE2 or FE3 With F55) Strut Assembly Removal and Installation (FE2 Without F55) Strut Assembly Removal and Installation (FE4 With F55)

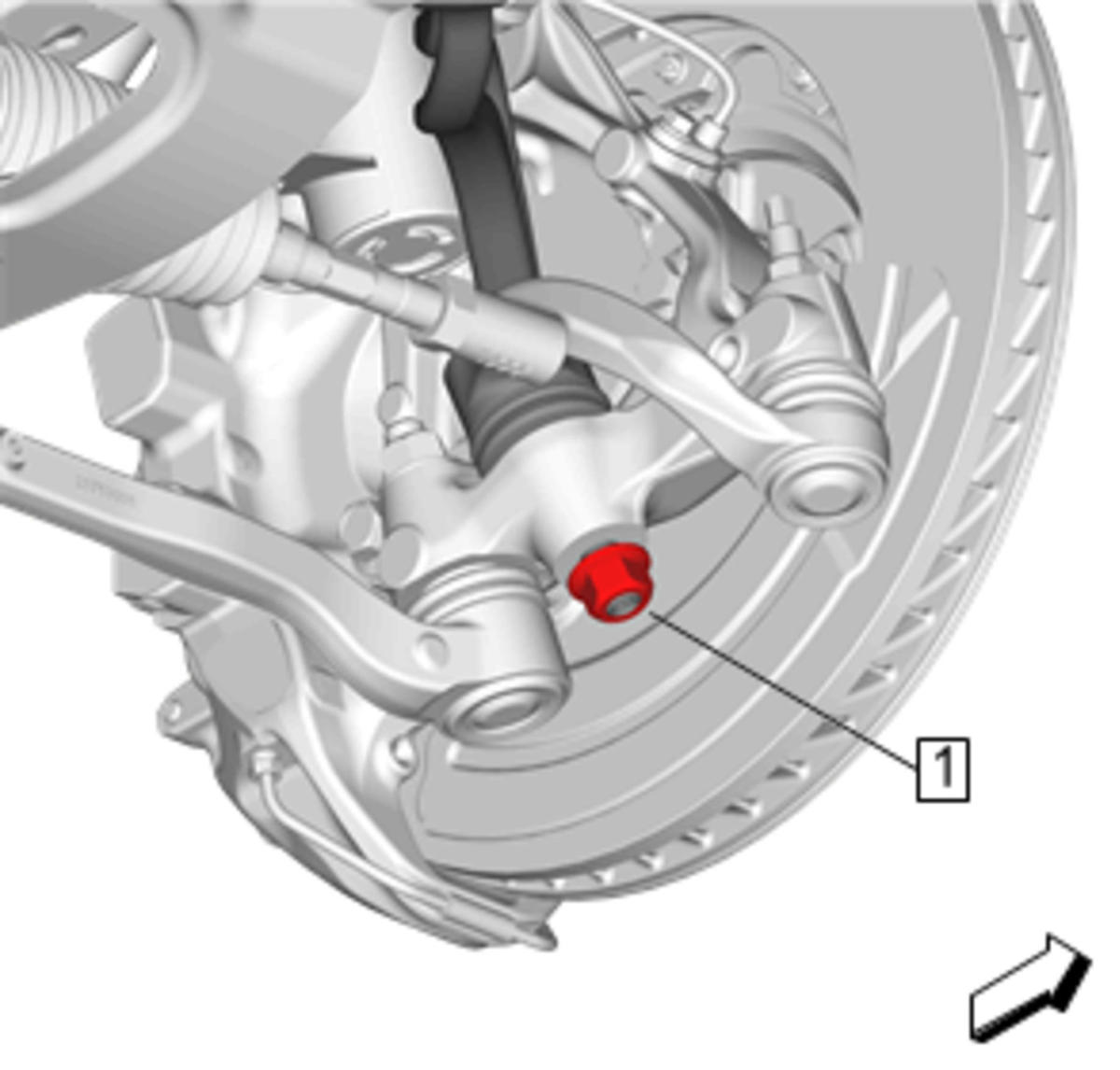

    7. Fig 6: Steering Knuckle Nut
    GM4093544Courtesy of GENERAL MOTORS COMPANY
  7. Loosen Steering Knuckle Nut (1)

    Do NOT remove the nut.

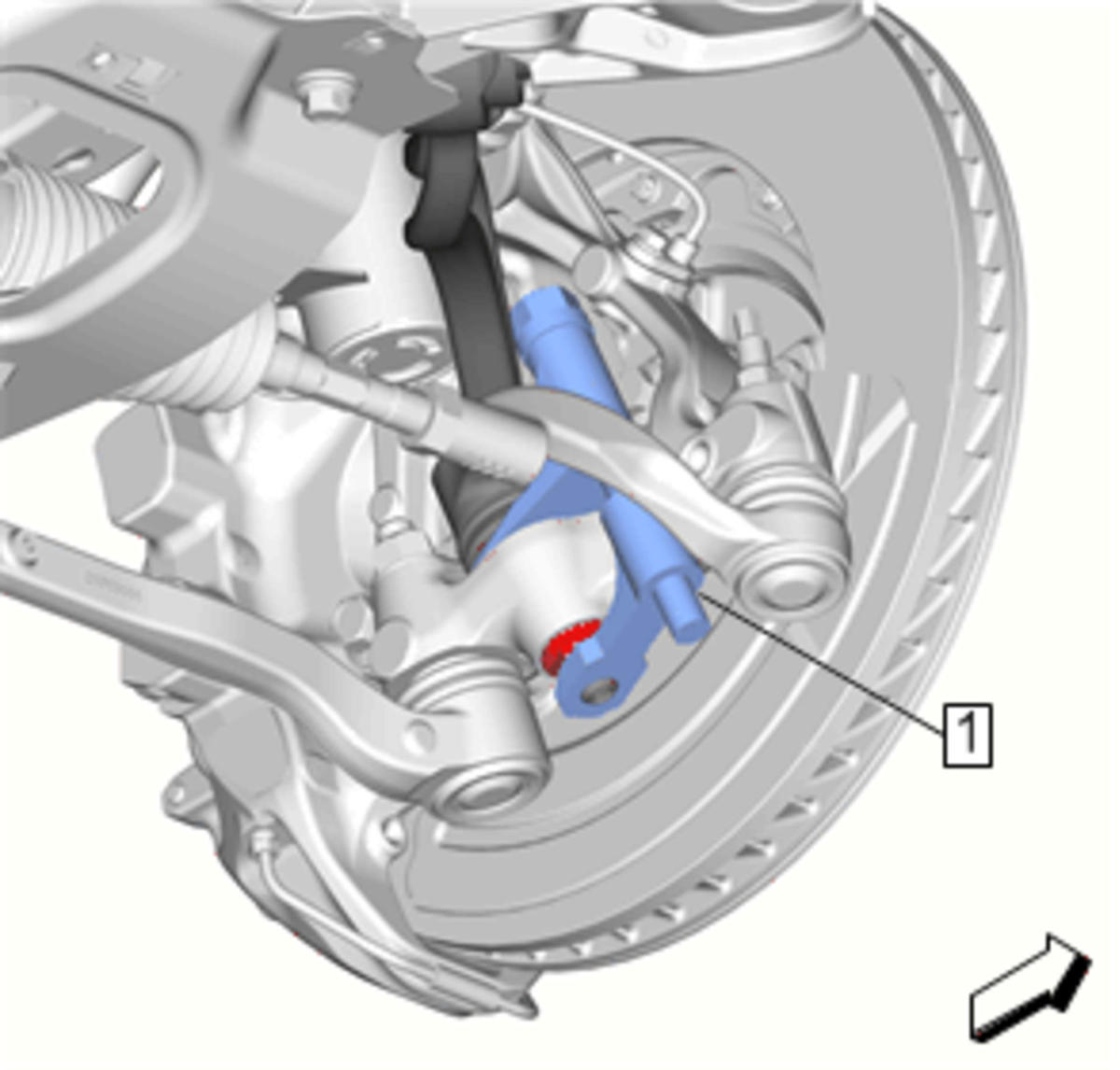

    8. Fig 7: Front Lower Control Front Link And Steering Knuckle
    GM4093218Courtesy of GENERAL MOTORS COMPANY
  8. Use the CH-42188-B  separator (1) to separate the front lower control front link from the steering knuckle.
    9. Fig 8: Steering Knuckle Nut
    GM4093550Courtesy of GENERAL MOTORS COMPANY
  9. Remove Steering Knuckle Nut (1)
    10. Fig 9: Front Lower Control Front Link Bolt And Nut
    GM4093545Courtesy of GENERAL MOTORS COMPANY
  10. Remove Front Lower Control Front Link Nut (1)
  11. Remove Front Lower Control Front Link Bolt (2)

    DISCARD the bolt.

    12. Fig 10: Front Lower Control Front Link
    GM4093556Courtesy of GENERAL MOTORS COMPANY
  12. Remove Front Lower Control Front Link (1)
