Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (Non V-Series)Tire and Wheel Removal and Installation (V-Series)
Remove Front Air Deflector. Refer to Front Air Deflector Replacement
Remove Engine Compartment Lower Noise Shield. Refer to Engine Compartment Lower Noise Shield Replacement (Front Wheel Drive)

Fig 1: Front Lower Control Front Link & Electrical Harness

GM2858826

Courtesy of GENERAL MOTORS COMPANY

If equipped, remove the electronic suspension wiring harness (1) from the front lower control front link (2).

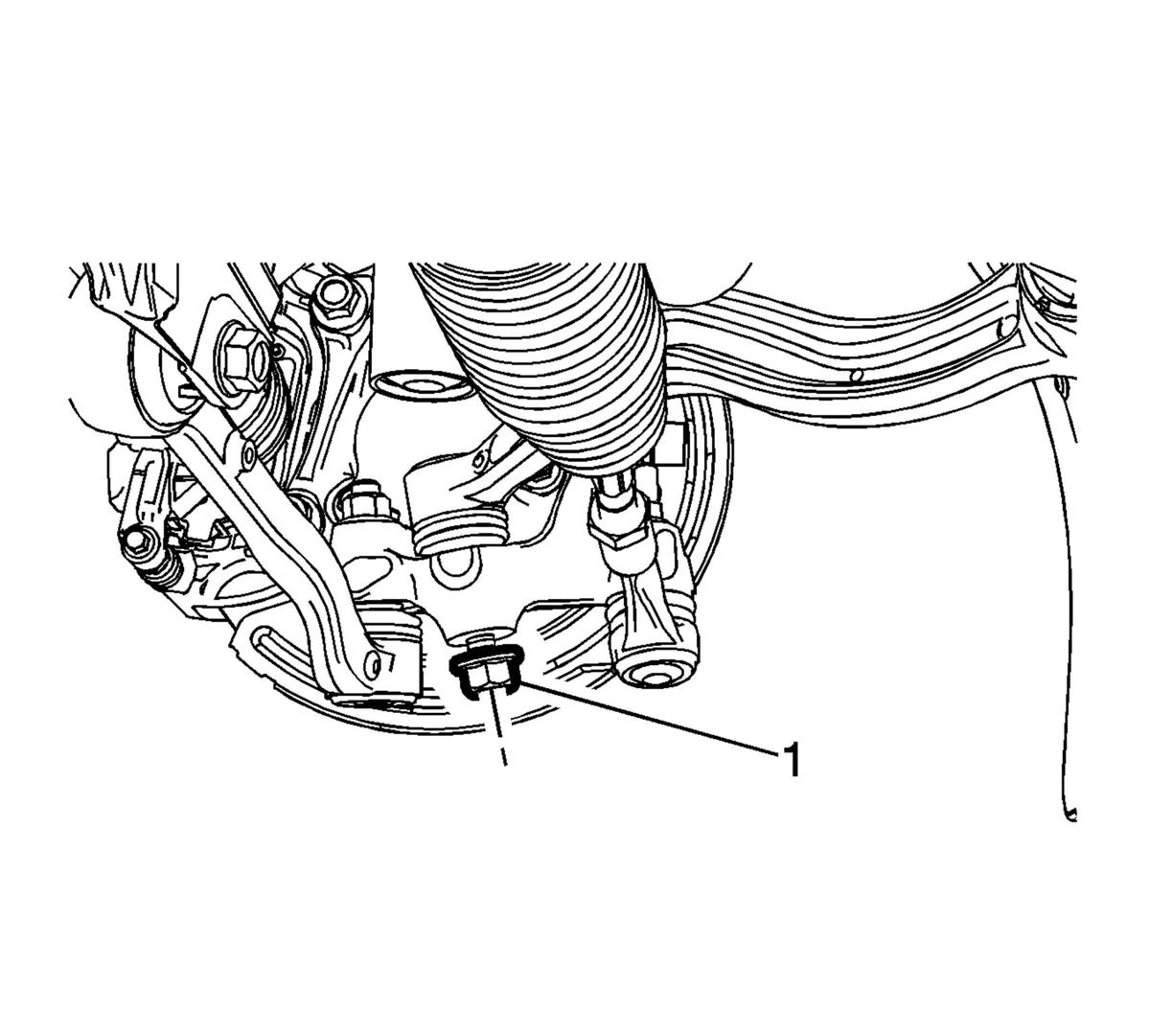

Fig 2: Steering Knuckle Nut

GM3459747

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Do NOT allow the ball stud to rotate while loosening the nut.

Loosen the steering knuckle nut (1).
Do NOT remove the nut.

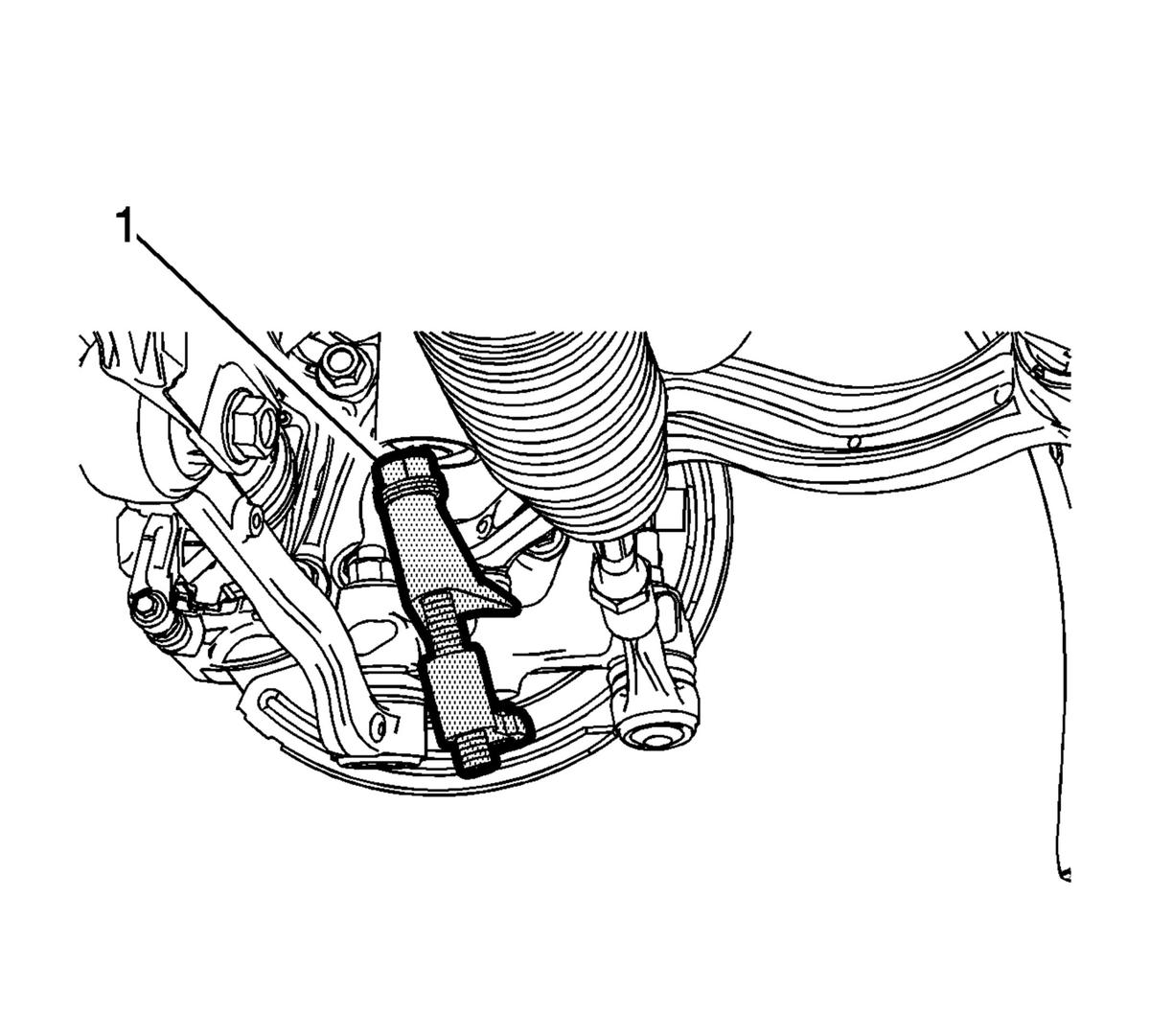

Fig 3: Separating Front Lower Control Front Link From Steering Knuckle

GM2811466

Courtesy of GENERAL MOTORS COMPANY

Use the CH-42188-B separator (1) to separate the front lower control front link from the steering knuckle.

Fig 4: Steering Knuckle Nut

GM2811484

Courtesy of GENERAL MOTORS COMPANY

Remove the steering knuckle nut (1).

Fig 5: Front Lower Control Front Link, Steering Knuckle & Mounting Components

GM2811497

Courtesy of GENERAL MOTORS COMPANY

Remove the front lower control front link nut (1).
Remove the front lower control front link bolt (3).
DISCARD the bolt.
Remove the front lower control front link (2) from the steering knuckle (4).
