G205, G400, G402, G404 and G406

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

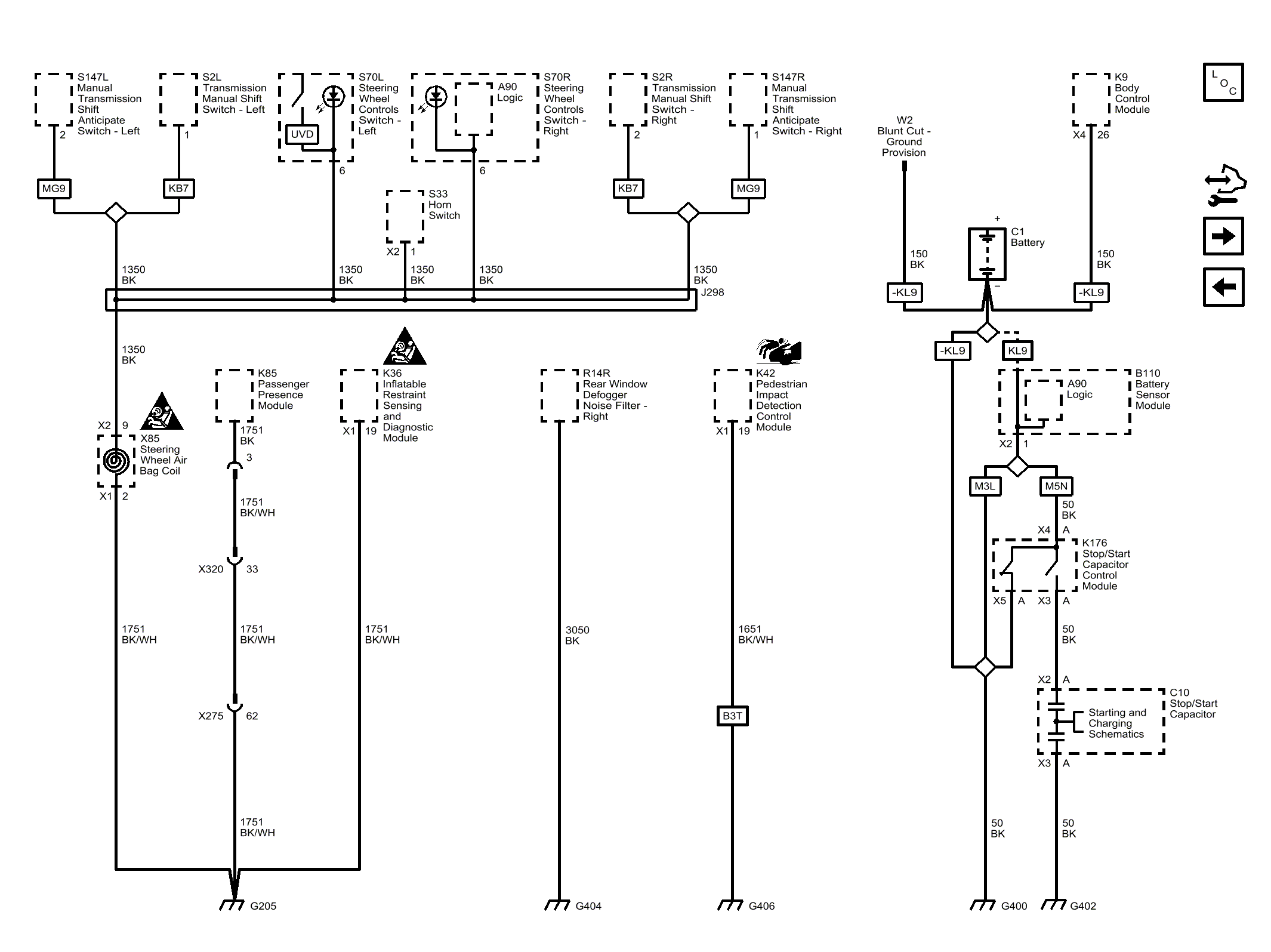

Fig 1: G205, G400, G402, G404 and G406
GM4492257Courtesy of GENERAL MOTORS COMPANY
