G100, G103 and G104 (LF4/LGX)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

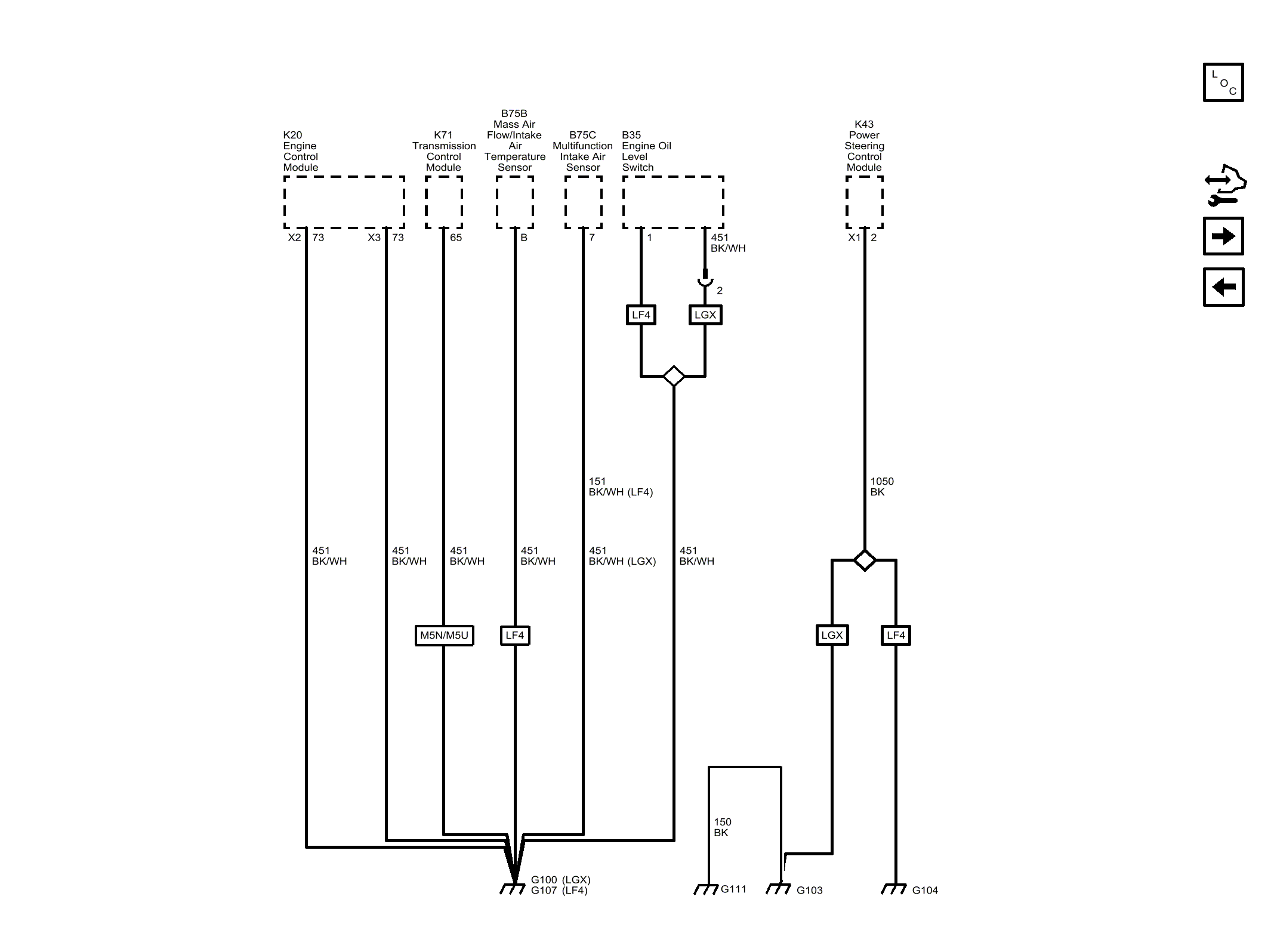

Fig 1: G100, G103 and G104 (LF4/LGX)
GM4492242Courtesy of GENERAL MOTORS COMPANY
