Fuel Tank Vent Valve Hose Replacement (LTG Fuel Tank Fuel Pump Module)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

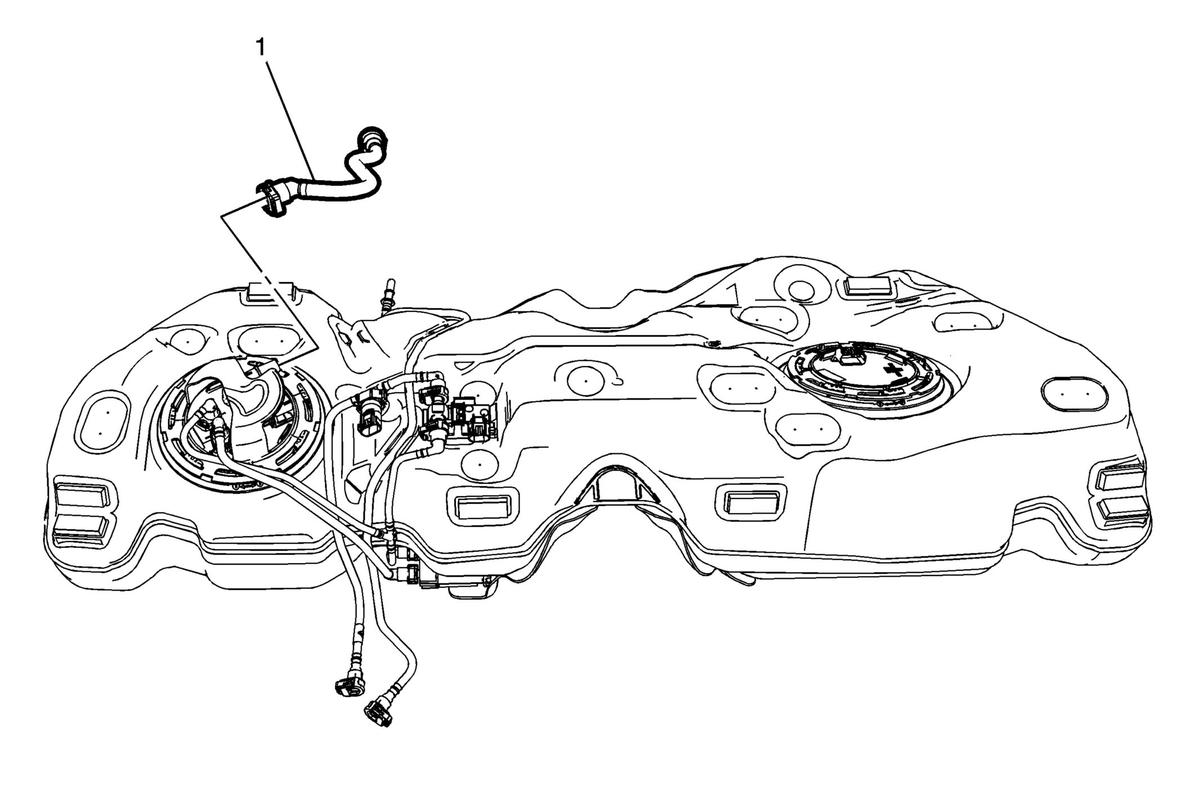

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the fuel tank. Refer to Fuel Tank Replacement (LTG) . |
|
| 1 | Fuel Tank Vent Valve Hose Procedure Disconnect the fuel tank vent valve hose from the fuel tank fuel pump module. Refer to Plastic Collar Quick Connect Fitting Service . |
