Fuel Pressure Sensor Replacement - Fuel Feed Pipe (LTG)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Gasoline/Gasoline Vapors Warning .
WARNING:
Preliminary Procedure Remove the fuel tank. Refer to Fuel Tank Replacement (LTG) .Refer to Safety Glasses Warning . |
|

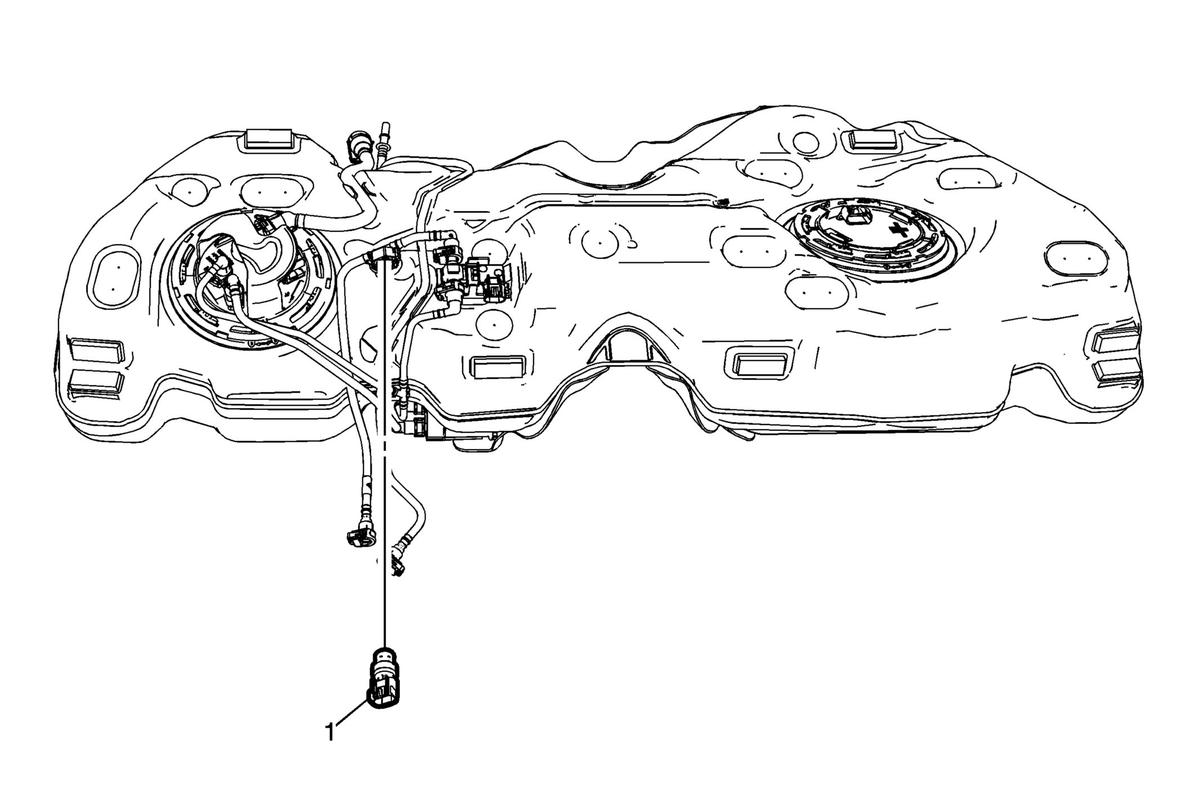

| 1 | Fuel Tank Pressure Sensor
CAUTION:
Refer to Component Fastener Tightening Caution . Procedure Disconnect electrical connector and upclip sensor from retainer. |
