Evaporative Emission Canister Purge Solenoid Valve Replacement (LCV)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

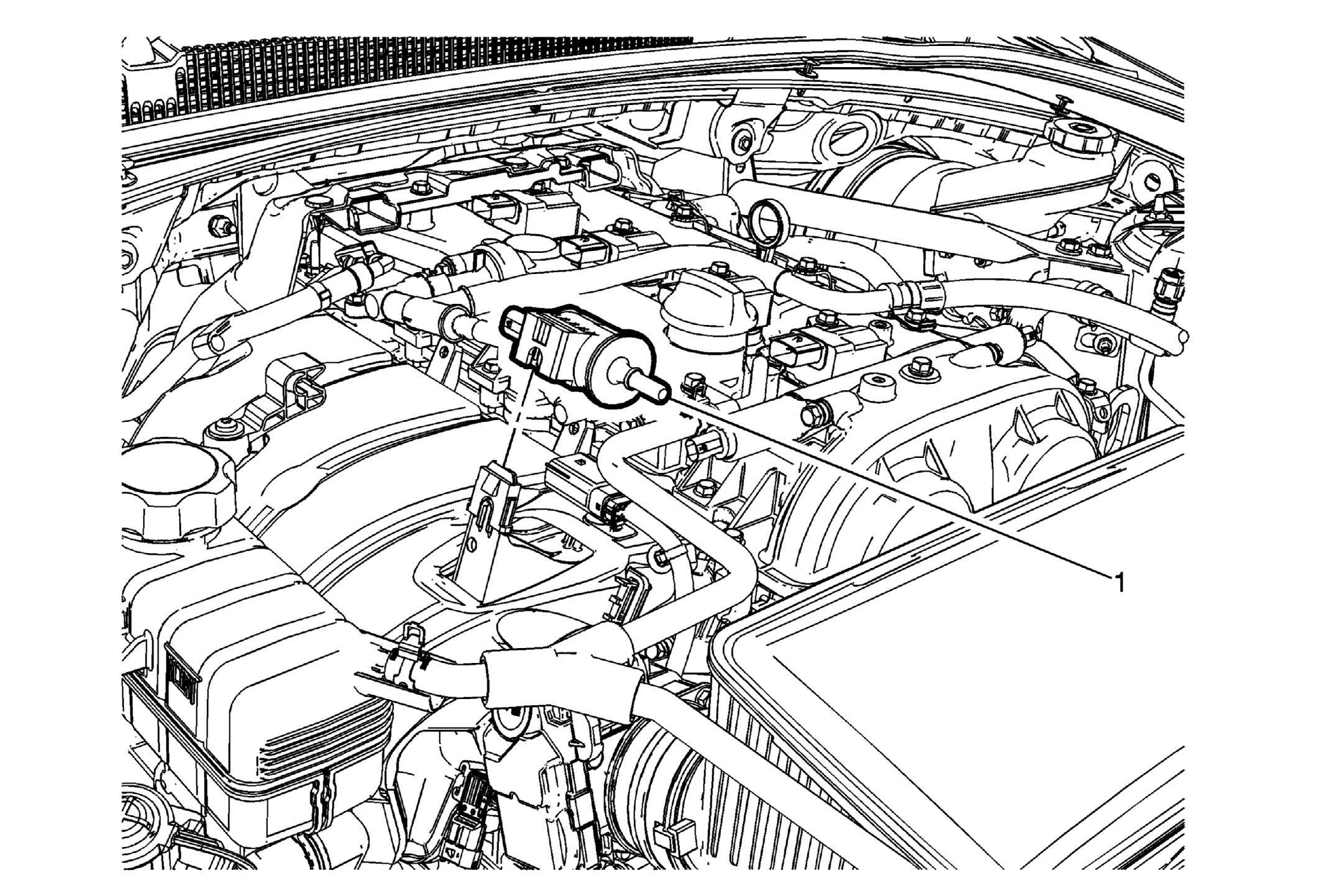

Fig 1: Evaporative Emission Canister Purge Solenoid Valve (LCV)
GM2837864Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Gasoline/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Disconnect the evaporative emission lines. Refer to Plastic Collar Quick Connect Fitting Service .
1 Evaporative Emission Canister Purge Solenoid Valve

Procedure

  1. Disconnect the evaporative emission canister purge solenoid valve electrical connector.
  2. Release the retaining tab.
