Rear Bumper Fascia Lower Bracket Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

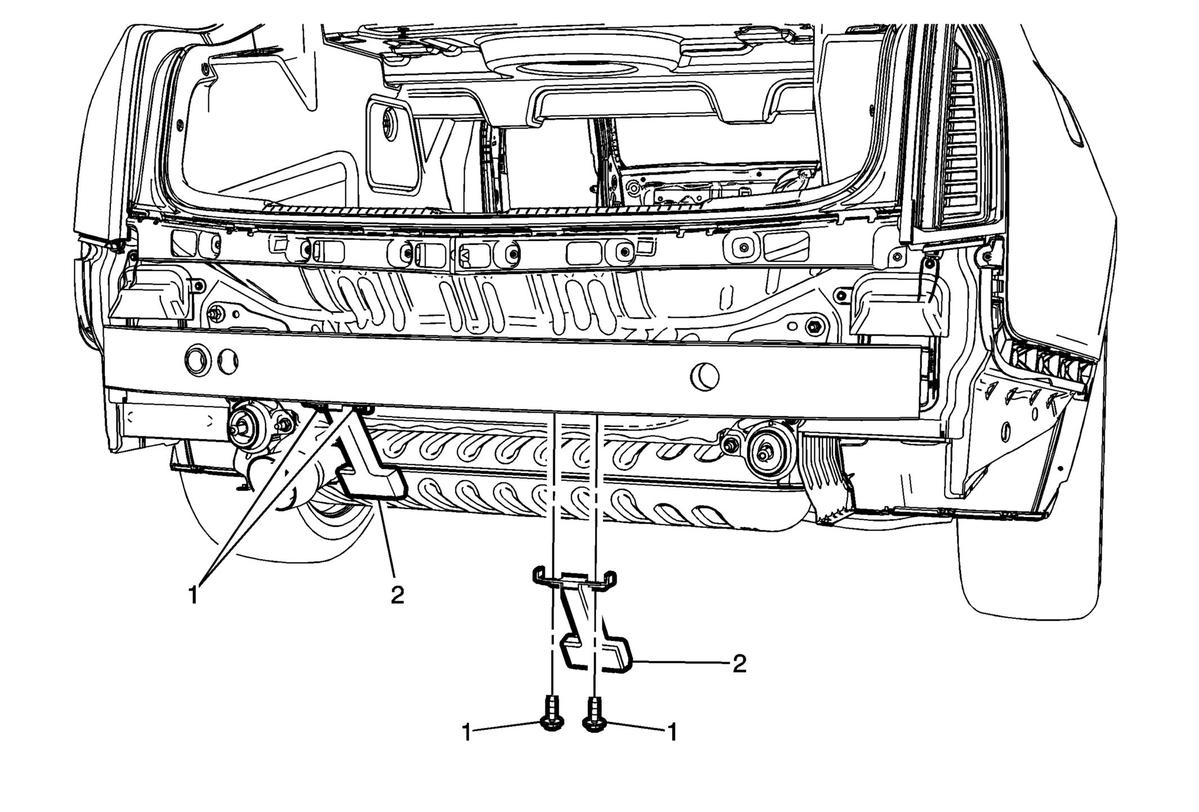

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement . |
|
| 1 | Rear Bumper Fascia Lower Bracket Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Rear Bumper Fascia Lower Bracket |
