Rear Bumper Fascia Bracket Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

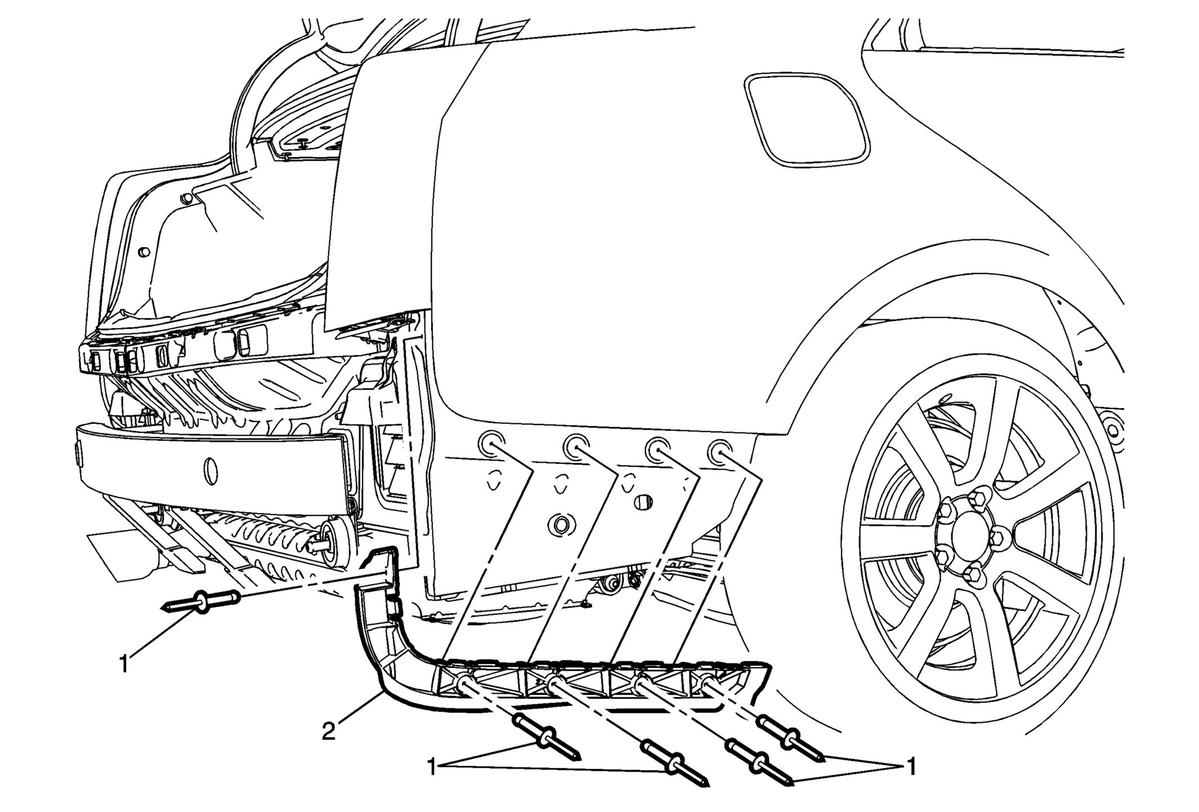

| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .Refer to Eye Protection Warning . |
|
| 1 | Rear Bumper Fascia Bracket Rivet (Qty: 5) |
| 2 | Rear Bumper Fascia Bracket |
