Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

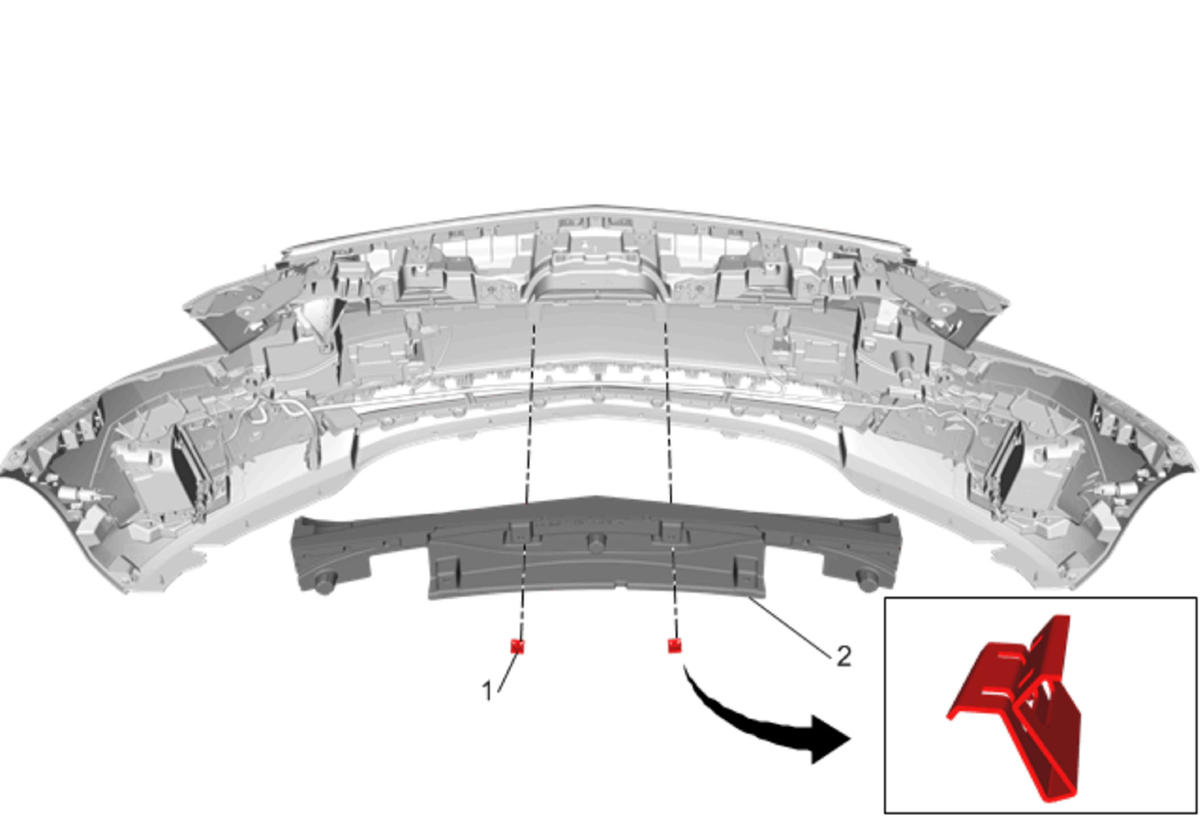

    Fig 1: Front Bumper Fascia Energy Upper Absorber
    GM3975407Courtesy of GENERAL MOTORS COMPANY
  1. Install Front Bumper Fascia Energy Upper Absorber-Inner (1)
  2. Install Front Bumper Fascia Energy Upper Absorber Clip (2)

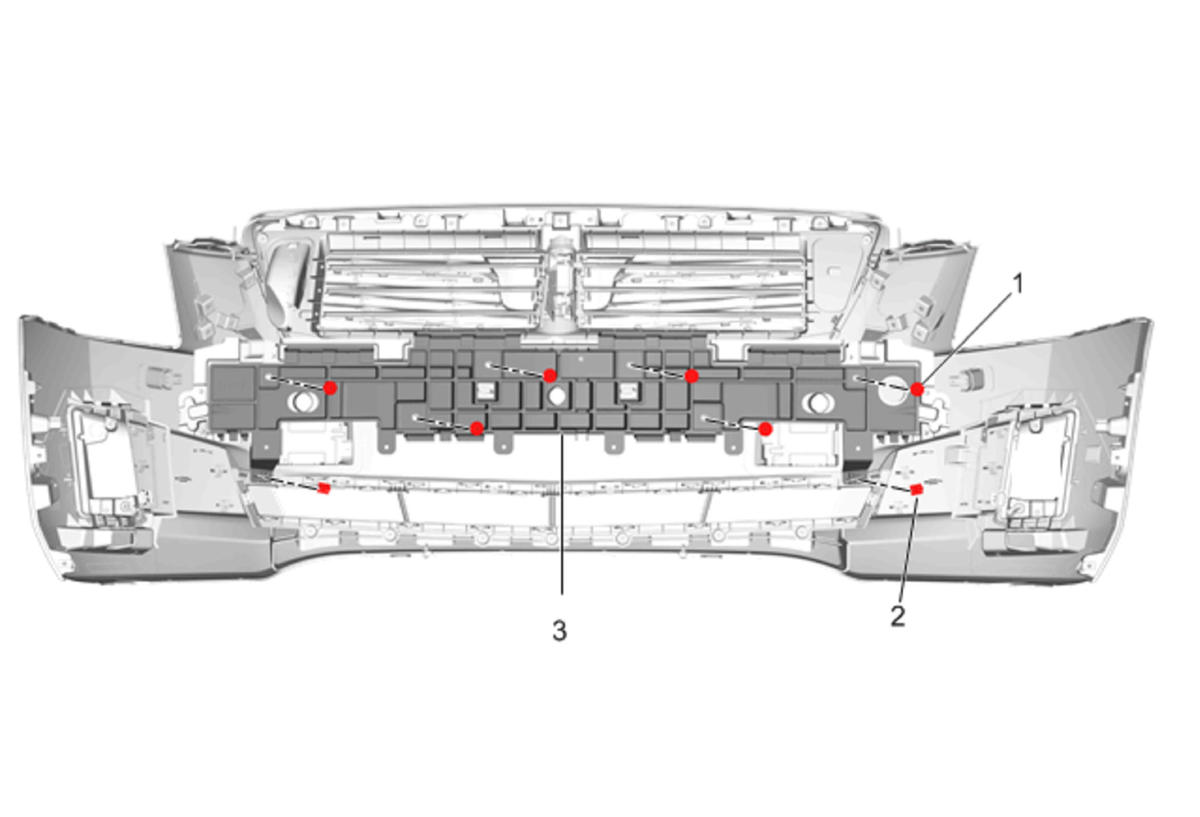

    3. Fig 2: Front Bumper Fascia Energy Upper Absorber
    GM3685248Courtesy of GENERAL MOTORS COMPANY
  3. Install Front Bumper Fascia Energy Upper Absorber-Outer (3)
  4. Install Front Bumper Fascia Energy Upper Absorber Clip (2)
  5. Install Front Bumper Fascia Energy Upper Absorber Threaded Retainer (1)
  6. Connect the wiring harness retainers to the front bumper fascia and reposition as necessary.
  7. Front Bumper Fascia Replacement Front Bumper Fascia Replacement (V)
