Front Bumper Fascia Air Deflector Replacement - Outer (ATS-V Series)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

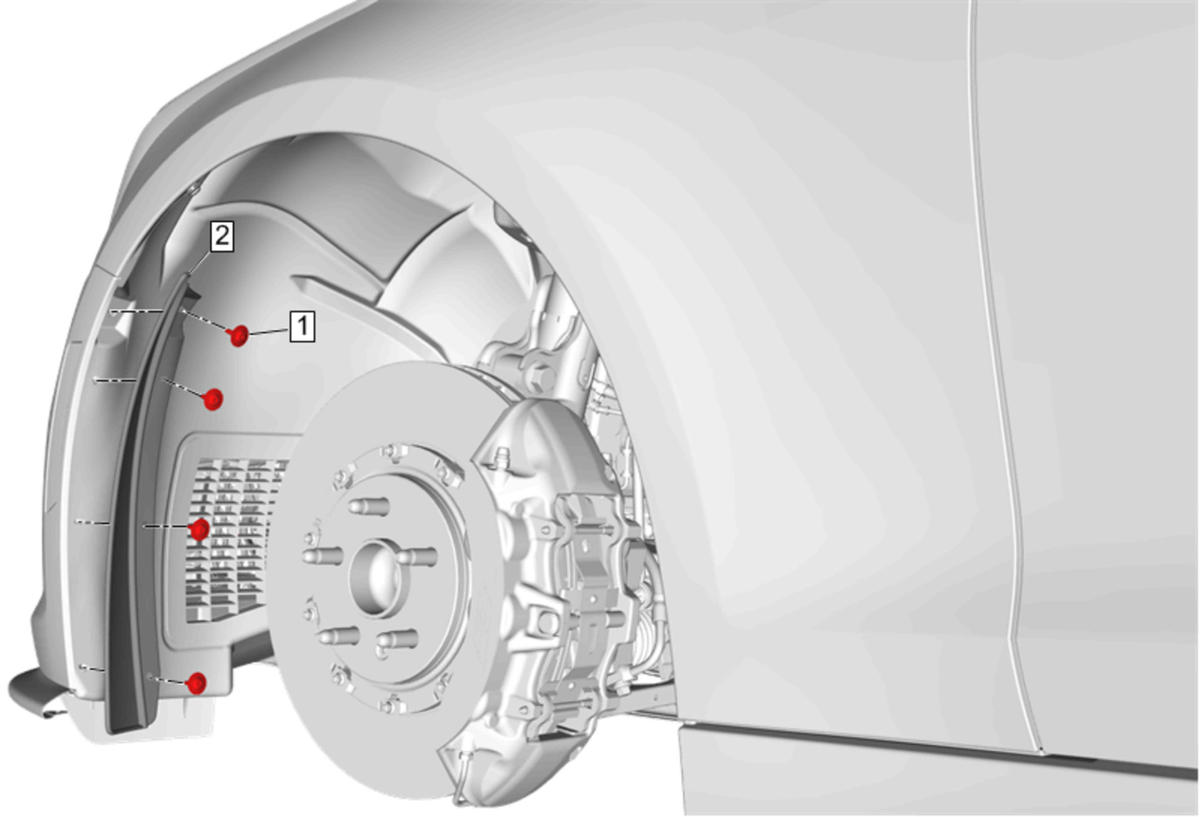

| Callout | Component Name |
|---|---|
| Preliminary Procedure Lifting and Jacking the Vehicle (ATS-V) |
|
| 1 | Front Bumper Fascia Outer Air Deflector Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Front Bumper Fascia Air Deflector - Outer |
