Transmission Case (2 of 2)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

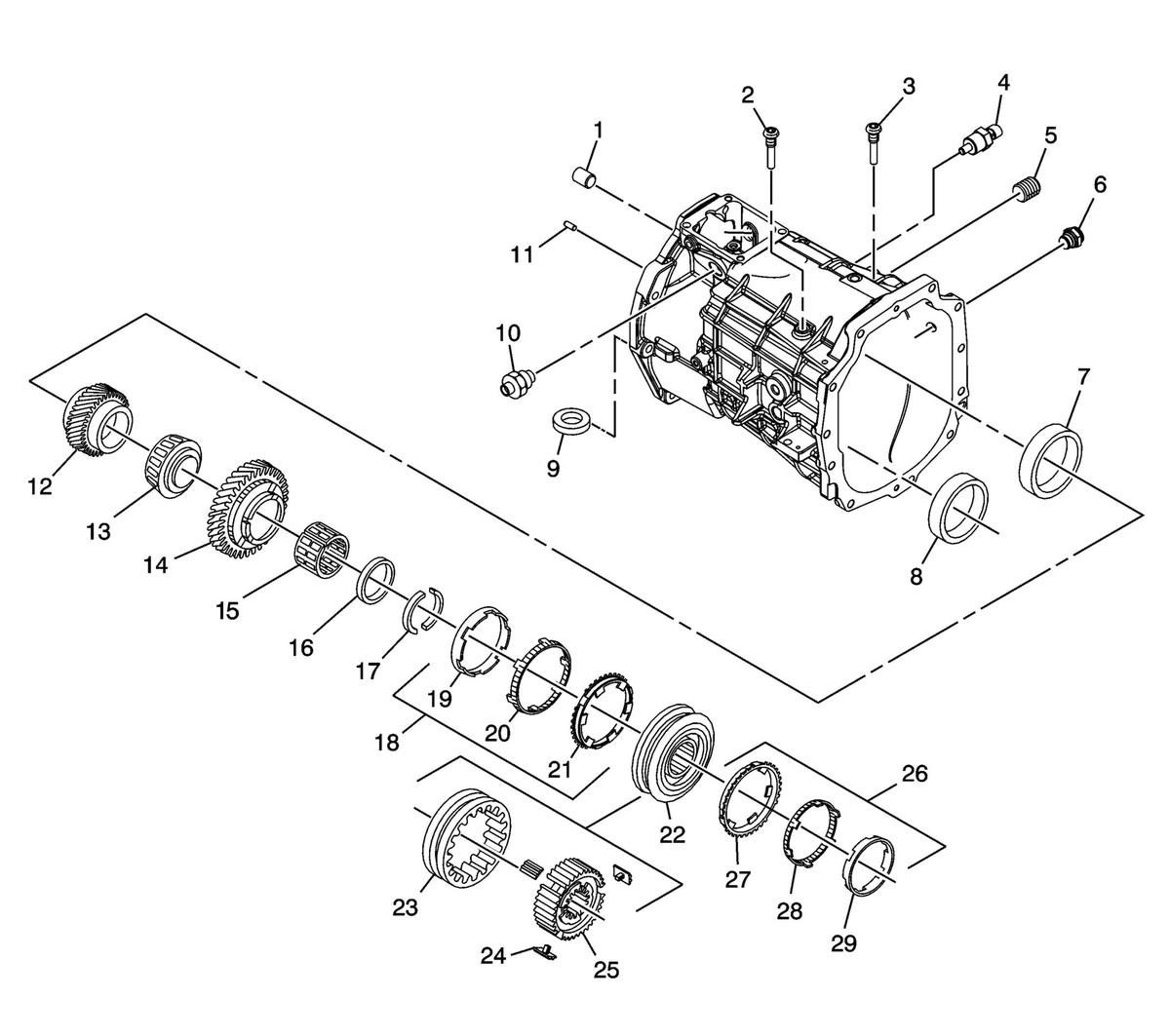

| Callout | Component Name |
|---|---|
| 1 | 1st/2nd and 3rd/4th Shift Shaft Bearing |
| 2 | 5th/6th Lever Guide Bolt |
| 3 | Interlock Guide Bolt |
| 4 | Coolant Temperature Sensor |
| 5 | Oil Fill Plug |
| 6 | Cooler Line Return Fitting |
| 7 | Mainshaft Center Bearing Race |
| 8 | Countershaft Bearing Race |
| 9 | Magnet |
| 10 | Shift Detent Assembly |
| 11 | Case Rear Extension Pin |
| 12 | 6th Speed Driven Gear |
| 13 | Mainshaft Center Bearing |
| 14 | 1st Speed Drive Gear |
| 15 | 1st Speed Drive Gear Needle Bearing |
| 16 | 1st Speed Drive Gear Locking Ring |
| 17 | 1st Speed Gear Two Piece Washer |
| 18 | 1st Gear Blocking Ring Assembly |
| 19 | 1st Speed Drive Gear Inner Cone |
| 20 | 1st Speed Drive Gear Outer Cone |
| 21 | 1st Gear Synchronizer Blocking Ring |
| 22 | 1st/2nd Synchronizer Assembly |
| 23 | 1st/2nd Synchronizer Sleeve |
| 24 | 1st/2nd Synchronizer Insert |
| 25 | 1st/2nd Synchronizer Hub |
| 26 | 2nd Gear Blocking Ring Assembly |
| 27 | 2nd Gear Synchronizer Blocking Ring |
| 28 | 2nd Speed Drive Gear Outer Cone |
| 29 | 2nd Speed Drive Gear Inner Cone |
