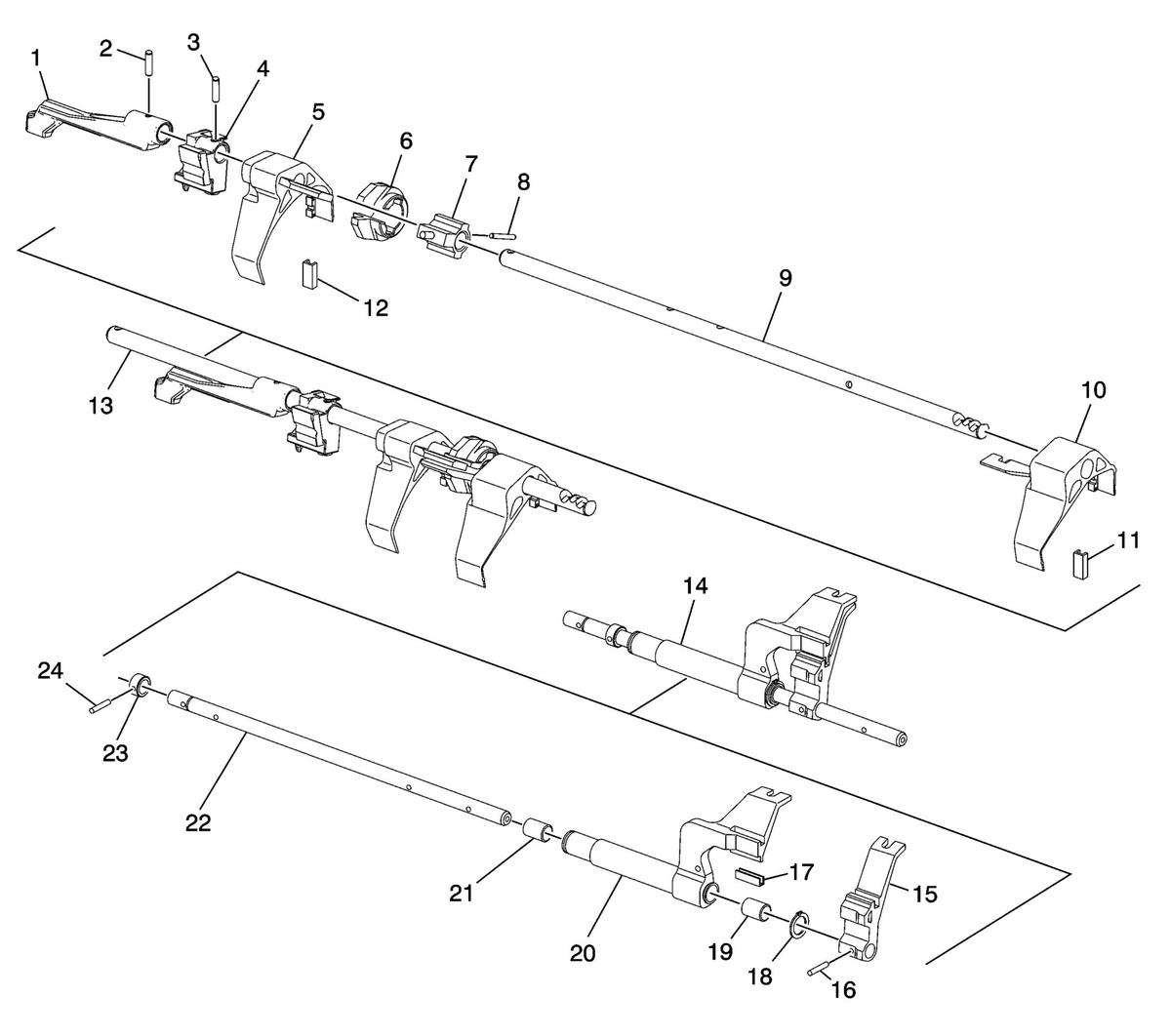

Shift Shafts
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Offset Shift Lever |
| 2 | Offset Shift Lever Pin |
| 3 | Control Select Arm Pin |
| 4 | Control Select Arm |
| 5 | 3rd/4th Shift Fork Assembly |
| 6 | Gear Select Interlock Plate |
| 7 | Select Control Lever Assembly |
| 8 | Select Control Lever Assembly Pin |
| 9 | 1st/2nd/3rd/4th Shift Shaft |
| 10 | 1st/2nd Shift Fork Assembly |
| 11 | 1st/2nd Shift Fork Insert |
| 12 | 3rd/4th Shift Fork Insert |
| 13 | 1st/2nd/3rd/4th Shift Rail Assembly |
| 14 | 5th, 6th, and Reverse Shift Rail Assembly |
| 15 | Reverse Shift Lever |
| 16 | Reverse Shift Lever Pin |
| 17 | 5th and Reverse Shift Fork Insert |
| 18 | 5th/6th Shift Lever Retaining Ring |
| 19 | Shift Shaft Bushing |
| 20 | 5th/6th Shift Lever Assembly |
| 21 | Shift Shaft Bushing |
| 22 | 5th, 6th, and Reverse Shift Shaft |
| 23 | Transmission Reverse Shift Lever Collar |
| 24 | Reverse Shift Collar Pin |
