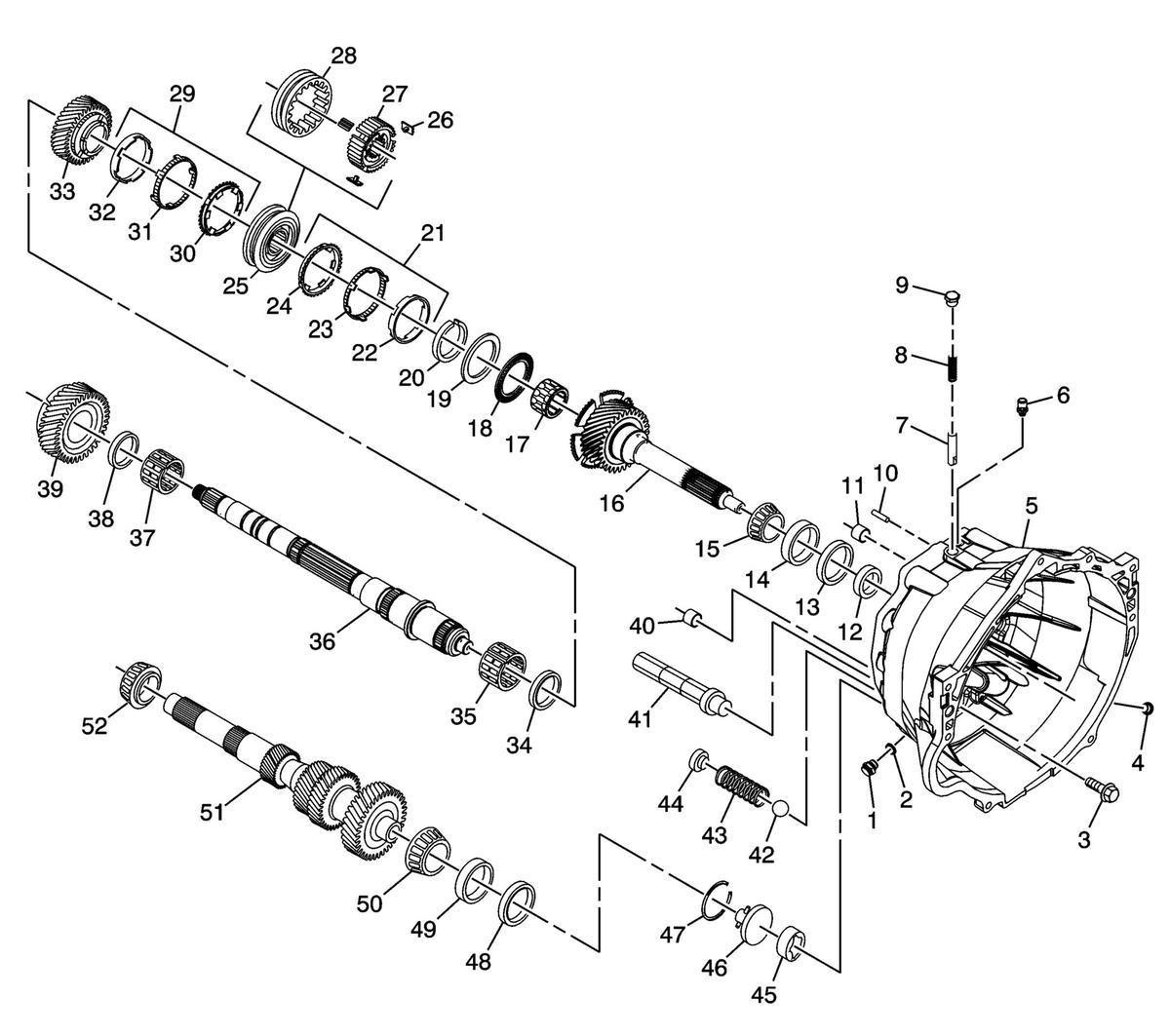

Clutch Housing Assembly and Gears
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Pump Outlet Cooler Fitting |
| 2 | Pump Outlet Cooler Fitting O-ring |
| 3 | Clutch Housing Assembly to Transmission Case Bolt |
| 4 | Transmission Fluid Pump Outlet Pipe Fitting |
| 5 | Clutch Housing Assembly |
| 6 | Vent Assembly |
| 7 | Shift Shaft Detent Roller |
| 8 | Shift Shaft Detent Spring |
| 9 | Shift Shaft Detent Plug |
| 10 | Transmission Case Locating Pin |
| 11 | 1st/2nd Shift Shaft Bearing |
| 12 | Input Shaft Seal |
| 13 | Input Shaft Bearing Shim |
| 14 | Input Shaft Bearing Race |
| 15 | Input Shaft Bearing |
| 16 | Input Shaft |
| 17 | Input Shaft Bearing |
| 18 | Input Shaft Thrust Bearing |
| 19 | Input Shaft Thrust Washer |
| 20 | 3rd/4th Synchronizer Retaining Ring |
| 21 | 4th Gear Blocking Ring Assembly |
| 22 | 4th Speed Drive Gear Inner Cone |
| 23 | 4th Speed Drive Gear Outer Cone |
| 24 | 4th Speed Drive Gear Blocking Ring |
| 25 | 3rd/4th Synchronizer Assembly |
| 26 | 3rd/4th Synchronizer Insert |
| 27 | 3rd/4th Synchronizer Hub |
| 28 | 3rd/4th Synchronizer Sleeve |
| 29 | 3rd Gear Blocking Ring Assembly |
| 30 | 3rd Speed Drive Gear Synchronizer Blocking Ring |
| 31 | 3rd Speed Drive Gear Friction Cone |
| 32 | 3rd Speed Drive Gear Inner Cone |
| 33 | 3rd Speed Drive Gear |
| 34 | 3rd Speed Drive Gear Spacer |
| 35 | 3rd Speed Drive Gear Bearing |
| 36 | Mainshaft |
| 37 | 2nd Speed Drive Gear Needle Bearing |
| 38 | 2nd Speed Drive Gear Bearing Spacer |
| 39 | 2nd Speed Drive Gear |
| 40 | 3rd/4th Shift Shaft Bushing |
| 41 | Oil Filter Assembly |
| 42 | Transmission Fluid Pump Check Ball |
| 43 | Transmission Fluid Pump Spring |
| 44 | Transmission Fluid Pump Spring Retaining Plug |
| 45 | Oil Pump |
| 46 | Oil Pump Cover |
| 47 | Oil Pump Cover Retainer Ring |
| 48 | Countershaft Bearing Adjust Shim |
| 49 | Countershaft Bearing Race |
| 50 | Countershaft Front Bearing |
| 51 | Counter Gear Shaft |
| 52 | Countershaft Rear Bearing |
