Installation Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
- Install the shift control assembly to the transmission.
- Install the right shift control assembly rod pin (1).
- Install the left shift control assembly rod pin (2).

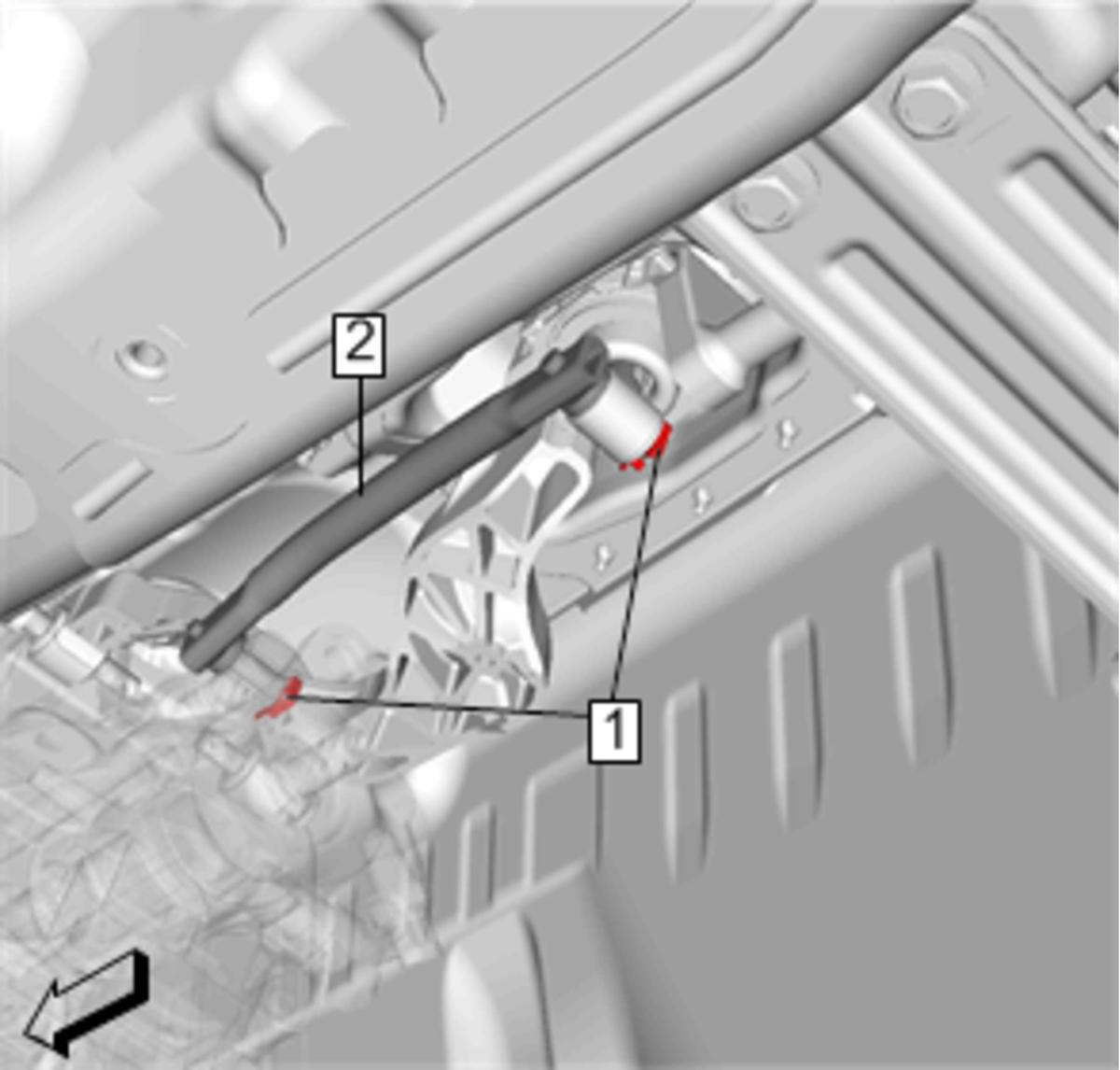

- Install the shift linkage assembly (2).
- Install the shift linkage retaining clips (1).
- Raise the transmission.
- Install the 4 transmission support fasteners (2), then tighten to 60 N.m (44 lb ft).
- Remove the jack supporting the transmission.
- Install the propeller shaft. Refer to Two-Piece Propeller Shaft Replacement (LTG, LGX, LCV) .
- Lower the vehicle.
- Pull up and outward on the tabs on the closeout boot (1) to clear the body structure.

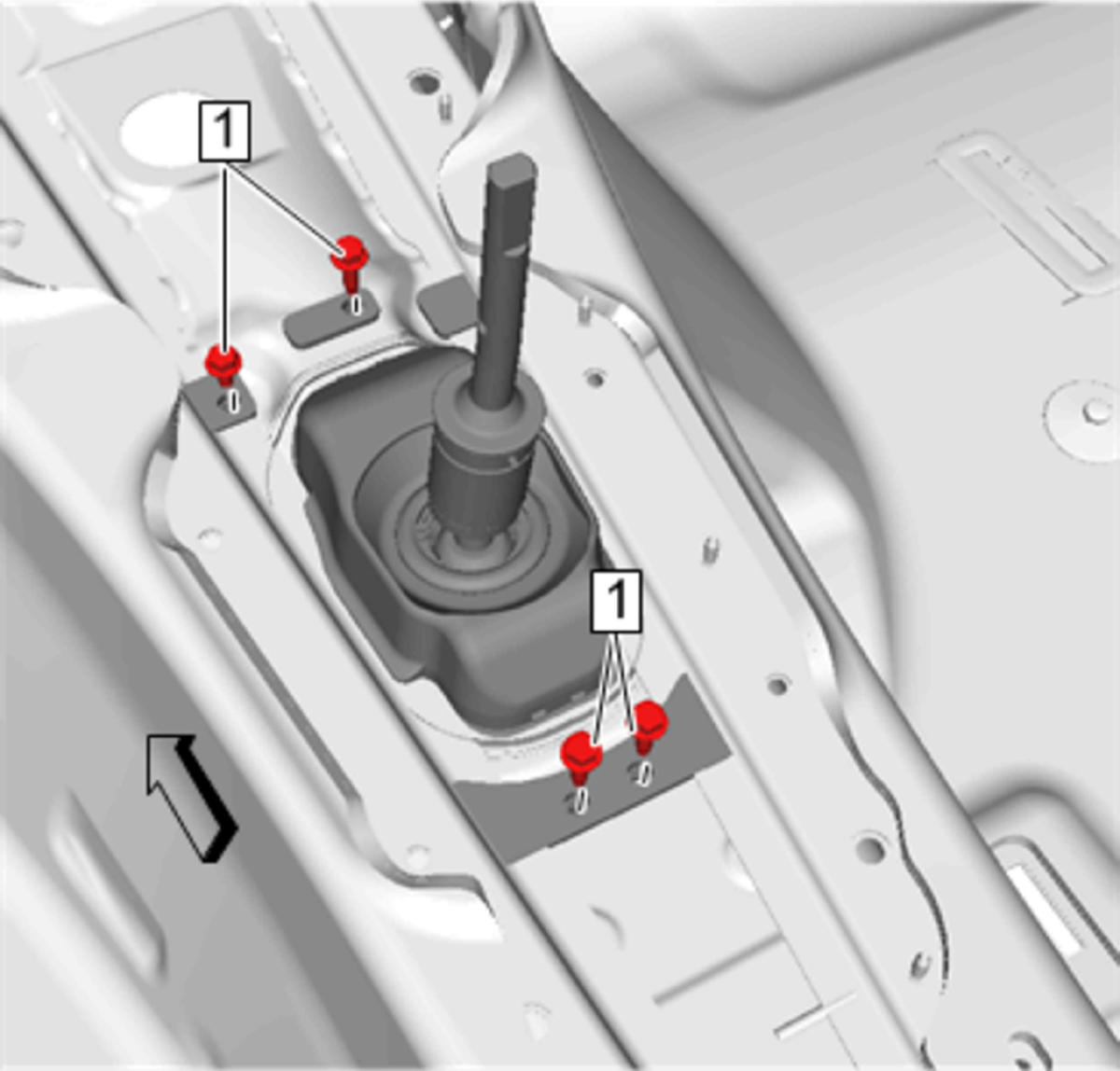

- Install the 4 fasteners (1) securing the shift control assembly to the tunnel reinforcement, then tighten to 12 N.m (106 lb in)
- Install rubber grommet covering alignment hole, if equipped.
- Install the foam insulator block to the shift lever area of the floor console.
- Install the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement .
NOTE:
Before installing the shifter, ensure that the shift shaft it is clean of dirt or lubricants.
CAUTION:
Refer to Fastener Caution .
