Reverse Shift Fork Removal

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

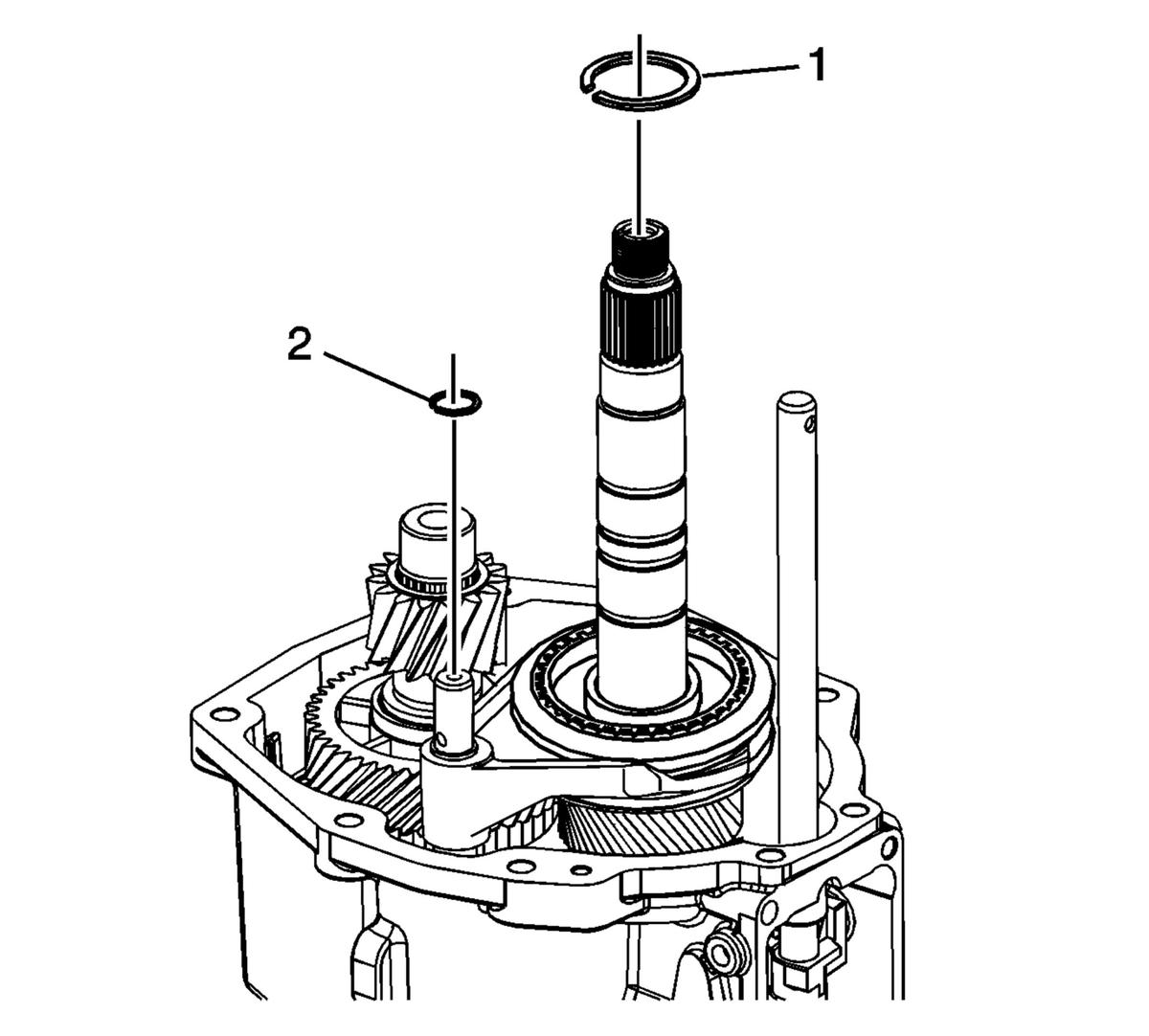

Fig 1: Reverse Synchronizer Retainer Ring & Reverse Shift Fork Retainer Ring

Courtesy of GENERAL MOTORS COMPANY

Remove the reverse synchronizer retainer ring (1).
Remove and discard the reverse shift fork retainer ring (2).

Fig 2: Scribe Mark On Synchronizer Hub And On Sleeve

Courtesy of GENERAL MOTORS COMPANY

Scribe a mark on the synchronizer hub and on the sleeve. This will help you to reinstall the parts in the same position.

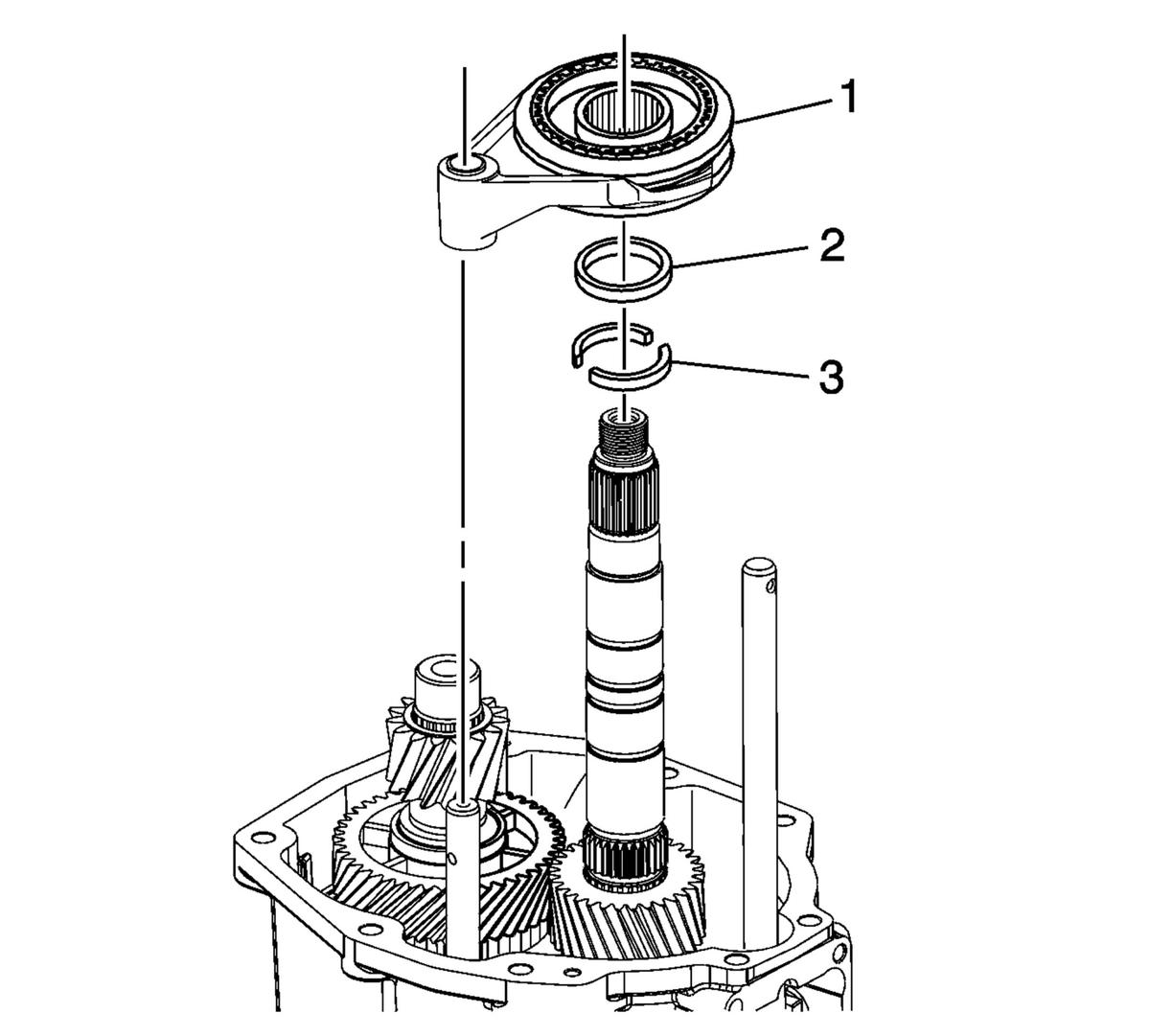

Fig 3: Thrust Washer, Locking Ring, Reverse Shift Fork And Synchronizer

Courtesy of GENERAL MOTORS COMPANY

Remove the reverse shift fork and synchronizer (1) and inserts.
Pry to remove the reverse synchronizer hub.
Remove the locking ring (2).
Remove the two piece thrust washer (3).
