5th/6th Speed Driven Gear Removal
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

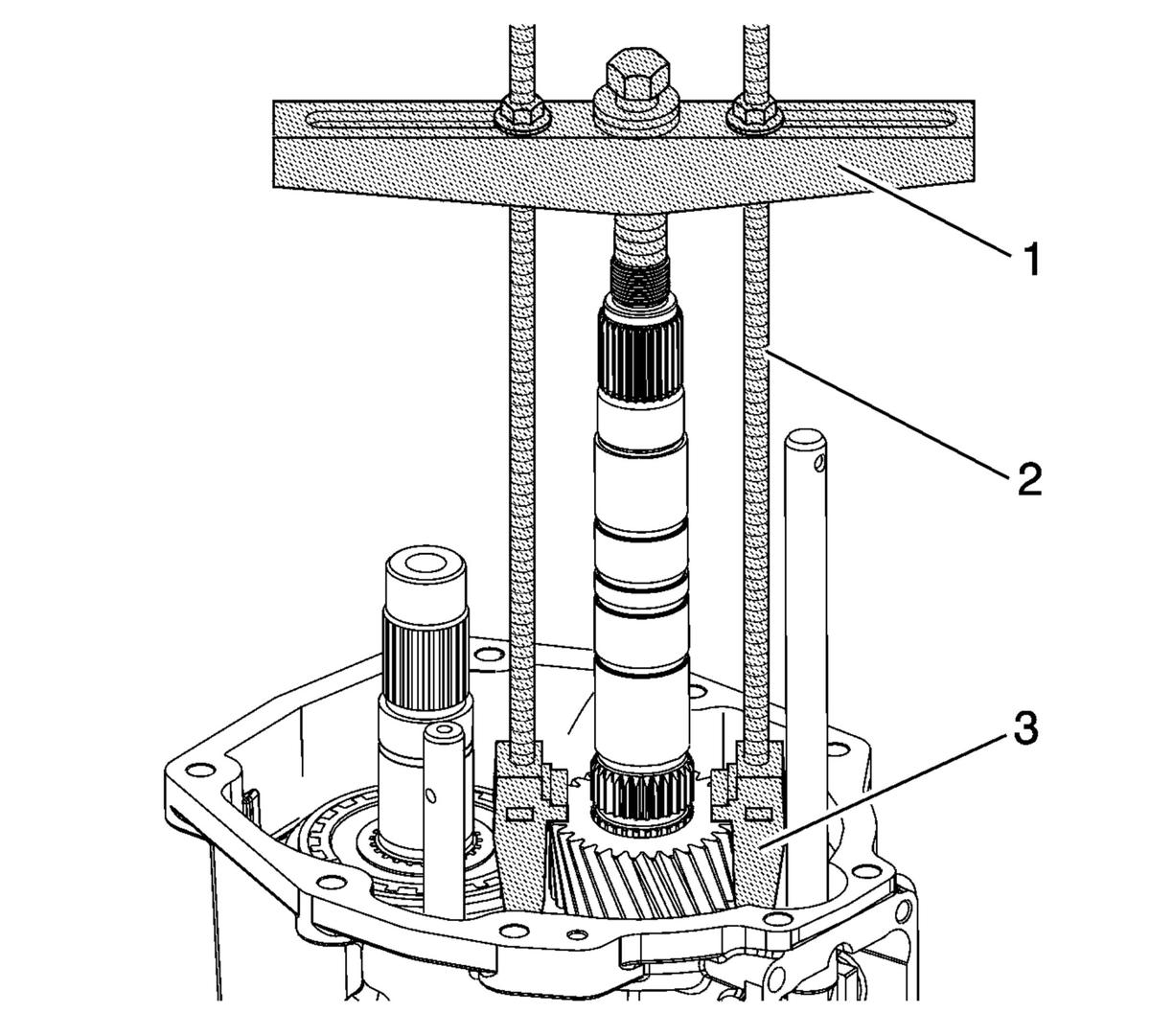

- Using the J-8433 puller (1), J 39431 gear remover (3), and the J 39431-3 adapter bolts (2), remove the 5th/6th speed driven gear.
- Remove the following components:
- The 5th/6th shift fork
- The synchronizer sleeve
- The synchronizer inserts
- The speed drive gear synchronizer blocking ring
- The speed drive gear friction cone
- The speed drive gear inner cone
- Install the DT-49139 remover (2) between the synchronizer hub assembly and synchronizer blocking ring.
- Remove the synchronizer hub assembly with J-6125-1B slide hammer (1).
- Remove the following components:
- The speed drive gear synchronizer blocking ring
- The speed drive gear friction cone
- The speed drive gear inner cone
- Remove the 6th driven gear, caged needle bearing, and 2 spacers.
NOTE:
If any of the following components are damaged or replaced. (5th Drive Gear, 5th gear blocking rings, 5th/6th gear synchronizer assembly) Then they must ALL be replaced as a set. All parts in the replacement kit must be used.
Fig 2: 5th/6th Shift Fork, Synchronizer Sleeve, Synchronizer Inserts, Speed Drive Gear Synchronizer Blocking Ring, Friction Cone and Inner Cone
NOTE:
If any of the following components are damaged or replaced. (5th Drive Gear, 5th gear blocking rings, 5th/6th gear synchronizer assembly) Then they must ALL be replaced as a set. All parts in the replacement kit must be used.
NOTE:
If any of the following components are damaged or replaced. (5th Drive Gear, 5th gear blocking rings, 5th/6th gear synchronizer assembly) Then they must ALL be replaced as a set. All parts in the replacement kit must be used.
