Reverse Shift Fork Installation

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: 5th/6th Speed Shift Fork Retainer Ring
    GM1887535Courtesy of GENERAL MOTORS COMPANY
  1. Install the 5th/6th speed shift fork retainer ring.
    2. Fig 2: Retainer Clip & Countershaft
    GM1887537Courtesy of GENERAL MOTORS COMPANY
  2. Install the retainer clip to the countershaft.
    3. Fig 3: Spacer & Countershaft
    GM1887536Courtesy of GENERAL MOTORS COMPANY
  3. Install the spacer to the countershaft.
    4. Fig 4: Needle Bearing & Countershaft
    GM1887534Courtesy of GENERAL MOTORS COMPANY
  4. Install the needle bearing to the countershaft.
    5. Fig 5: Gear & Countershaft
    GM1887533Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    If any of the following components are damaged or replaced. (5th Drive Gear, 5th gear blocking rings, 5th/6th gear synchronizer assembly) Then they must ALL be replaced as a set. All parts in the replacement kit must be used.

  5. Install the gear to the countershaft.
    6. Fig 6: Countershaft Retainer And Spacer
    GM1887531Courtesy of GENERAL MOTORS COMPANY
  6. Install the countershaft retainer and spacer.

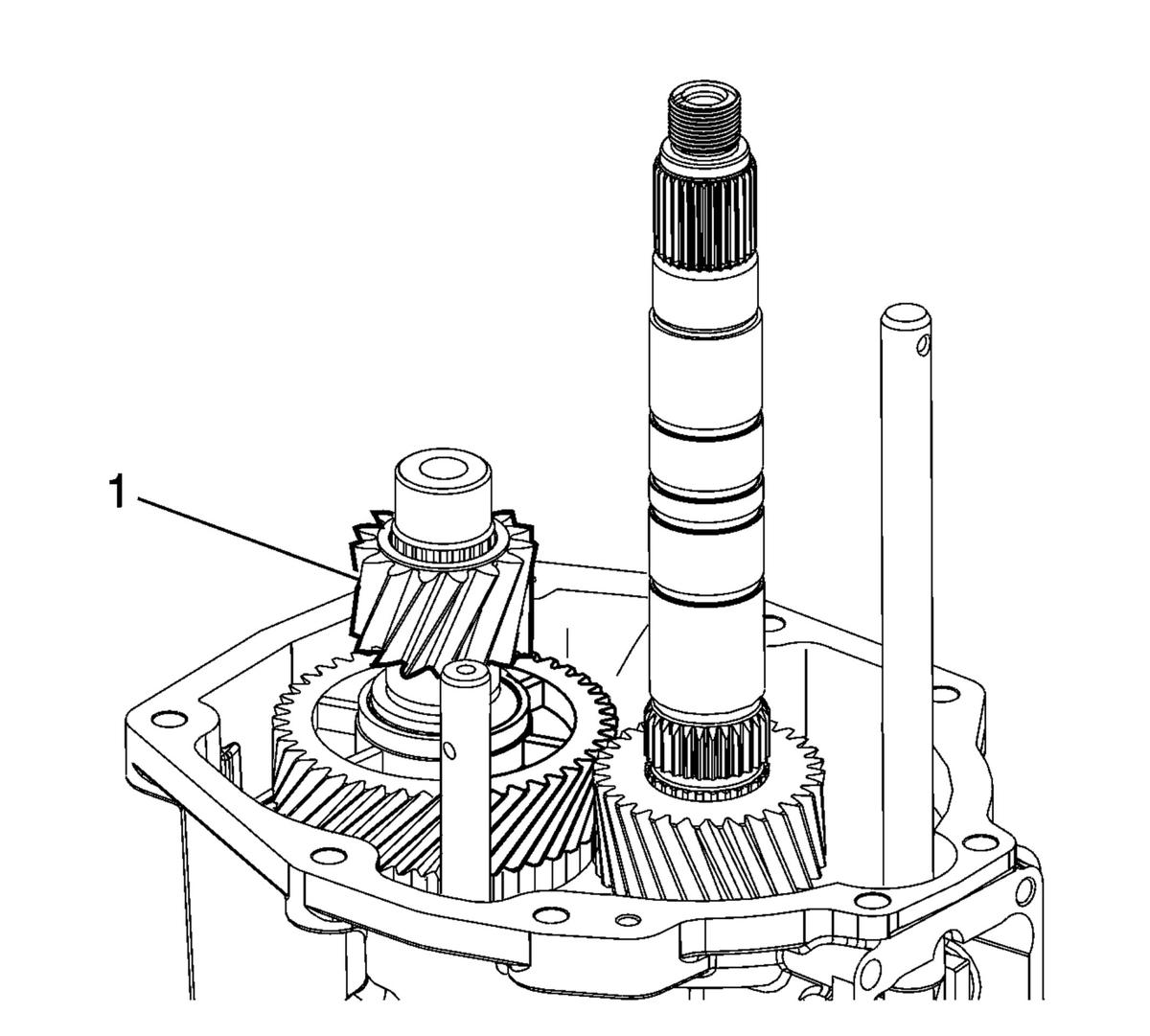

    7. Fig 7: Countershaft Gear
    GM2178189Courtesy of GENERAL MOTORS COMPANY
  7. Install the countershaft gear (1).
    8. Fig 8: Countershaft Retainer Ring
    GM1887622Courtesy of GENERAL MOTORS COMPANY
  8. Install the countershaft retainer ring.
    9. Fig 9: Thrust Washer, Locking Ring, Reverse Shift Fork And Synchronizer
    GM2102207Courtesy of GENERAL MOTORS COMPANY
  9. Install the two piece thrust washer (3).
  10. Install the locking ring (2).
    11. NOTE:

    The synchronizer hub for reverse should be assembled with nylon ring side away from the reverse gear.

  11. Install the reverse shift fork and the synchronizer (1).
    12. Fig 10: Reverse Synchronizer Retainer Ring & Reverse Shift Fork Retainer Ring
    GM2102206Courtesy of GENERAL MOTORS COMPANY
  12. Install a NEW shift fork retainer ring (2).
  13. Install the reverse synchronizer retainer ring (1).
