5th Driven/6th Speed Drive Gear Installation

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: 6th Driven Gear, Caged Needle Bearing And Spacers

Courtesy of GENERAL MOTORS COMPANY

Install two spacers, caged needle bearing, and 6th driven gear.

Fig 2: Speed Drive Gear Synchronizer Blocking Ring, Gear Friction Cone And Gear Inner Cone

Courtesy of GENERAL MOTORS COMPANY

Install the speed drive gear inner cone, speed drive gear friction cone, and synchronizer blocking ring.

Fig 3: Synchronizer Hub Assembly

Courtesy of GENERAL MOTORS COMPANY

Install the synchronizer hub assembly (2) using J-38205-1 tube (1).

Fig 4: 5th/6th Shift Fork, Synchronizer Sleeve, Synchronizer Inserts, Speed Drive Gear Synchronizer Blocking Ring, Friction Cone and Inner Cone

Courtesy of GENERAL MOTORS COMPANY

NOTE:

If any of the following components are damaged or replaced. (5th Drive Gear, 5th gear blocking rings, 5th/6th gear synchronizer assembly) Then they must ALL be replaced as a set. All parts in the replacement kit must be used.

Install the following components:
- Drive gear inner cone
- Drive gear friction cone
- Synchronizer blocking ring
- Synchronizer inserts
- Synchronizer sleeve
- 5th/6th shift fork

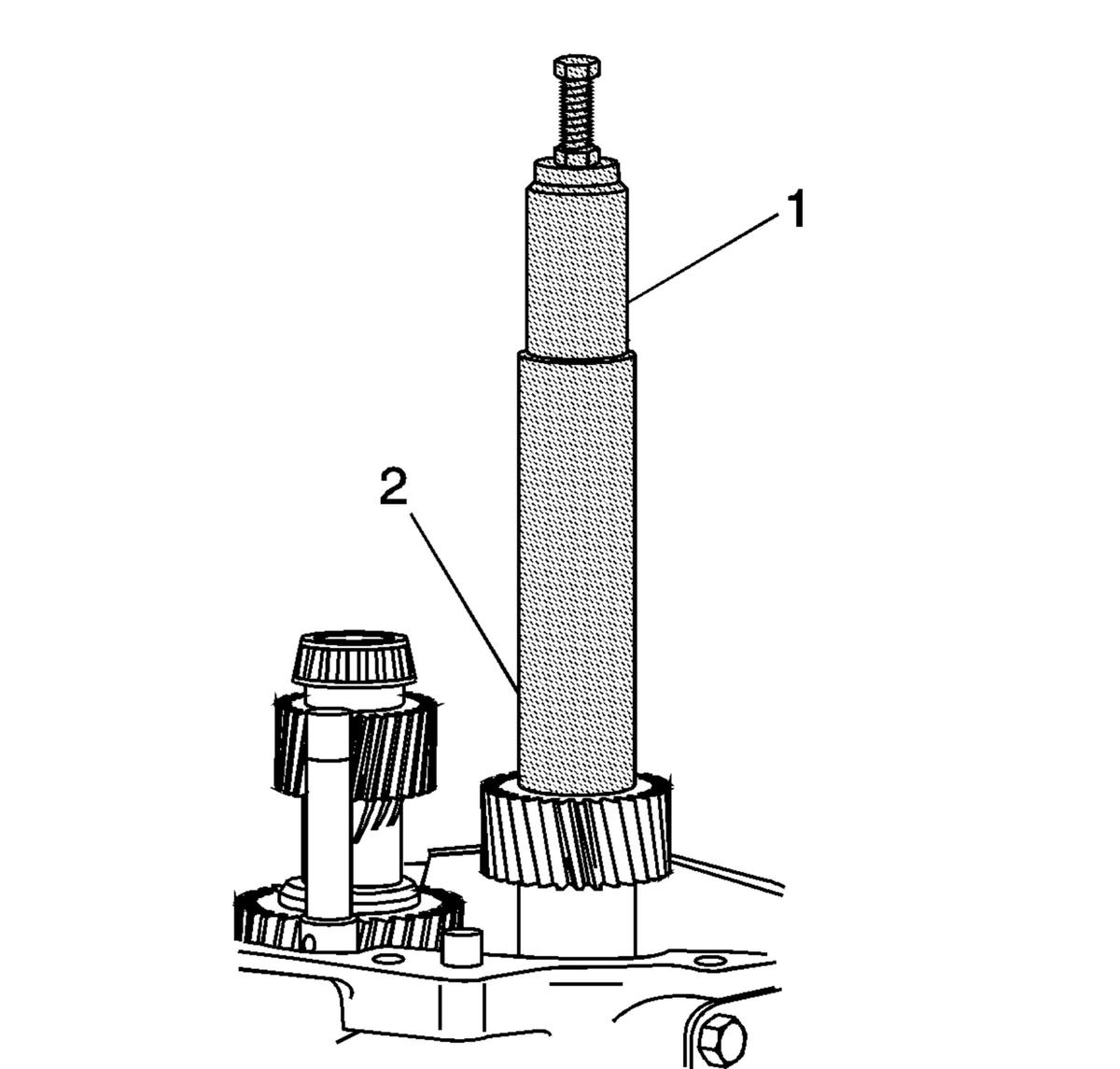

Fig 5: Installing 5th/6th Speed Driven Gear

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Install the 5th speed driven gear using the J-39441-30 installer (2) and J-39441-20 adapter (1). The smaller outside diameter (OD) of the gear faces down.
