Underbody Front Air Deflector Replacement - Left Side
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

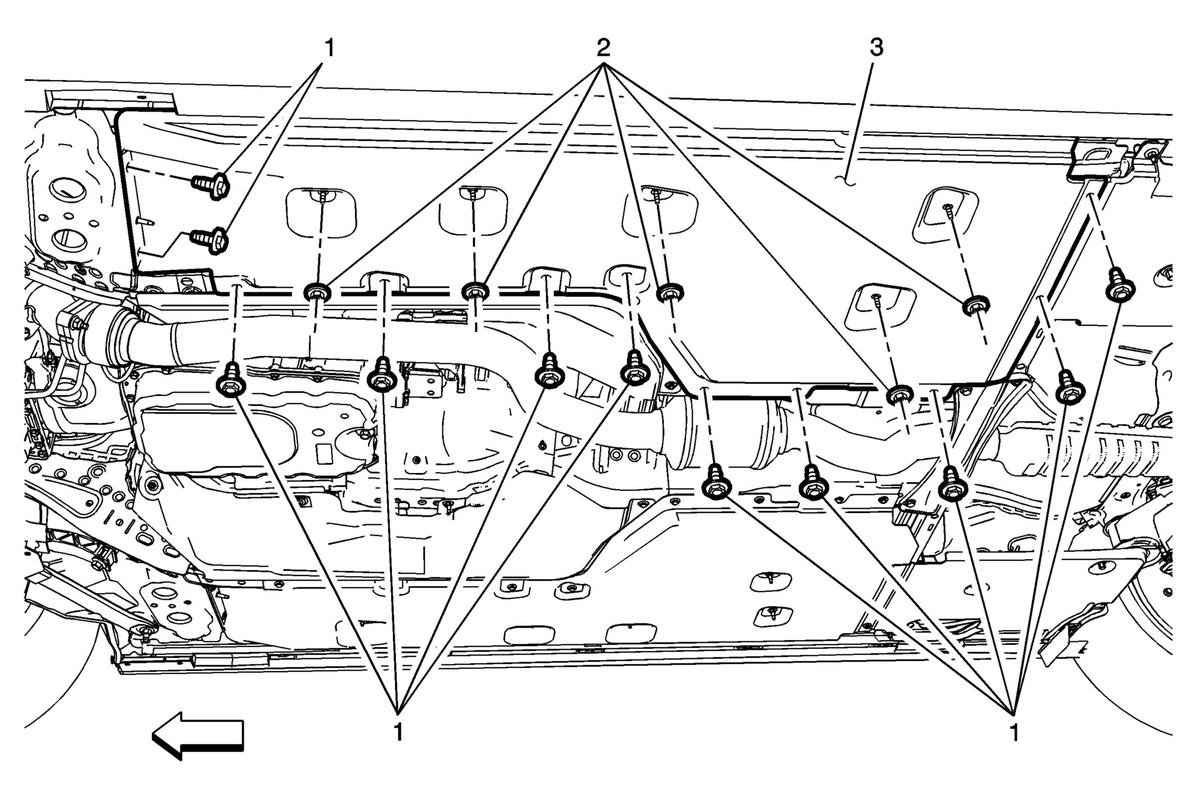

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) . |
|
| 1 | Underbody Front Air Deflector Bolt (Qty 11)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Underbody Front Air Deflector Nut (Qty 5) Tighten 9 N.m (80 lb in) |
| 3 | Underbody Front Air Deflector |
