Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

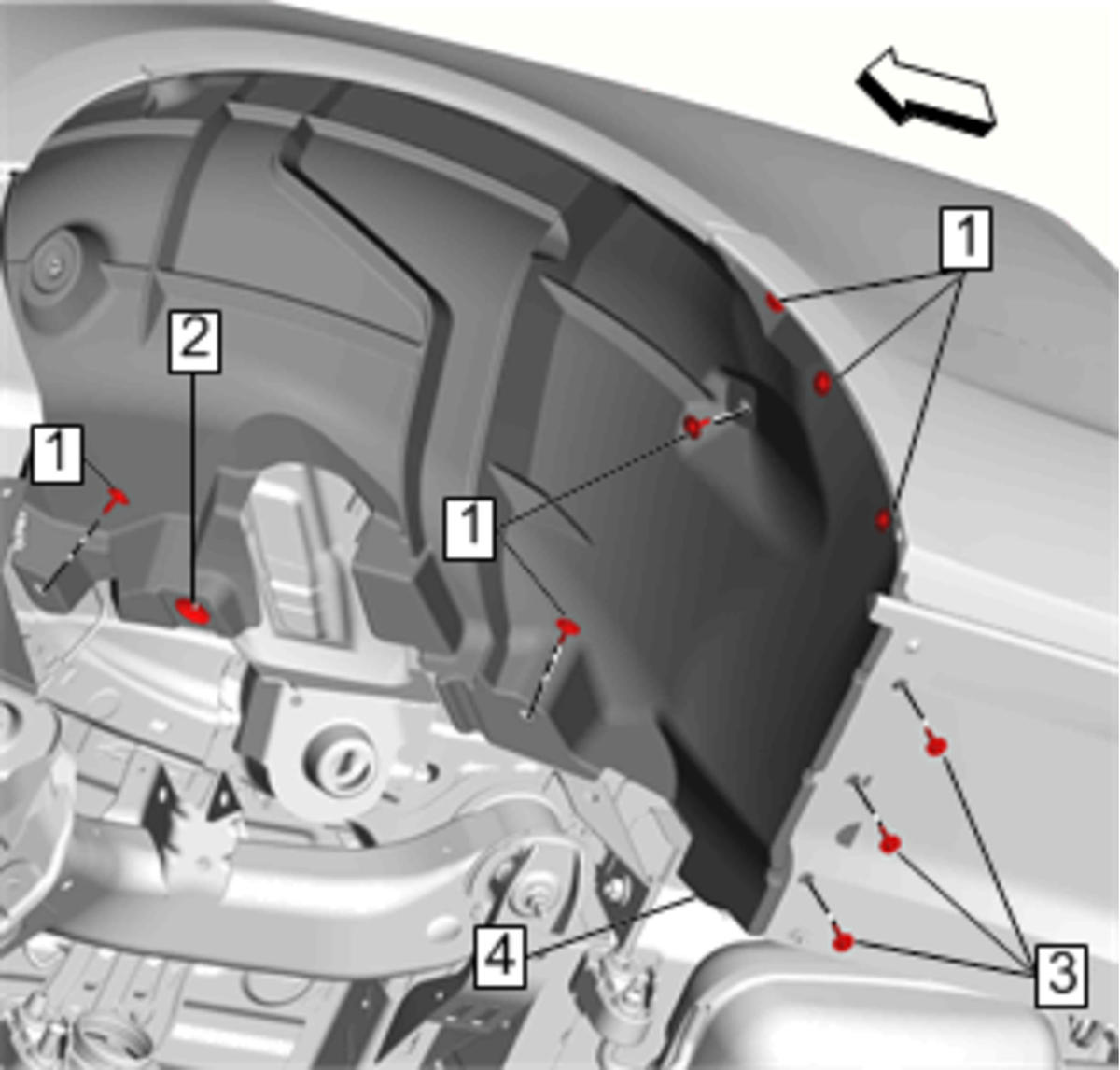

    Fig 1: Rear Wheelhouse Liner And Fasteners
    GM4031849Courtesy of GENERAL MOTORS COMPANY
  1. Install Rear Wheelhouse Liner (4)
  2. Install Rear Wheelhouse Liner Retainer (2)
    3. CAUTION:

    Refer to Fastener Caution .

  3. Rear Wheelhouse Liner Screw (1) Tighten 2.5 N.m (22 lb in)
  4. Rear Wheelhouse Liner Bolt (3) Tighten 2.5 N.m (22 lb in)

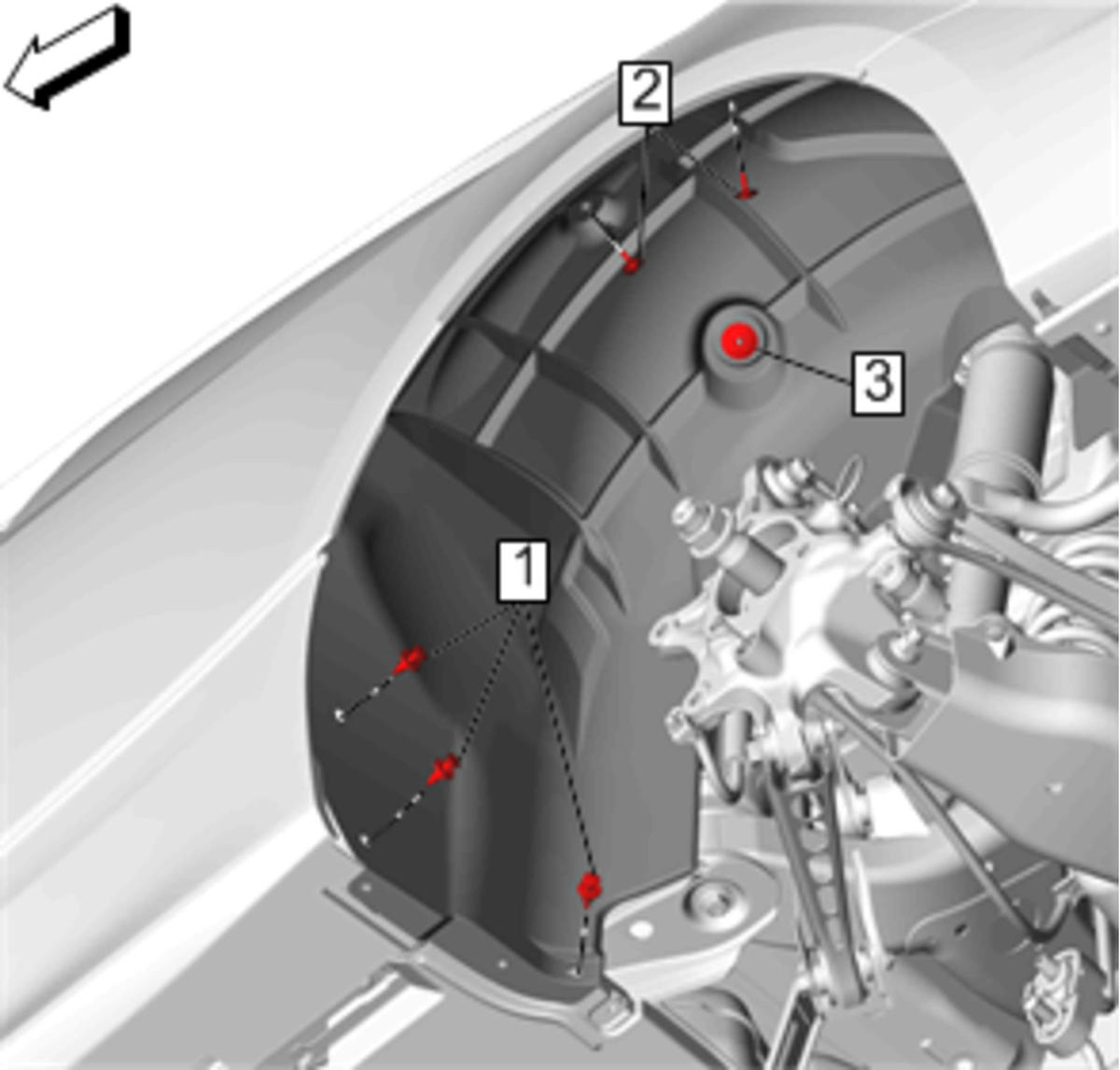

    5. Fig 2: Rear Wheelhouse Liner Retainers
    GM4056858Courtesy of GENERAL MOTORS COMPANY
  5. Install Rear Wheelhouse Liner Retainer (3)
  6. Install Rear Wheelhouse Liner Retainer (1)
  7. Rear Wheelhouse Liner Screw (2) Tighten 2.5 N.m (2 lb ft).
  8. Install Rear Tire Front Air Deflector.Rear Tire Front Air Deflector Replacement
  9. Install the rear tire and wheel assemblies.Tire and Wheel Removal and Installation (V-Series)
  10. Lower the vehicle.
