Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

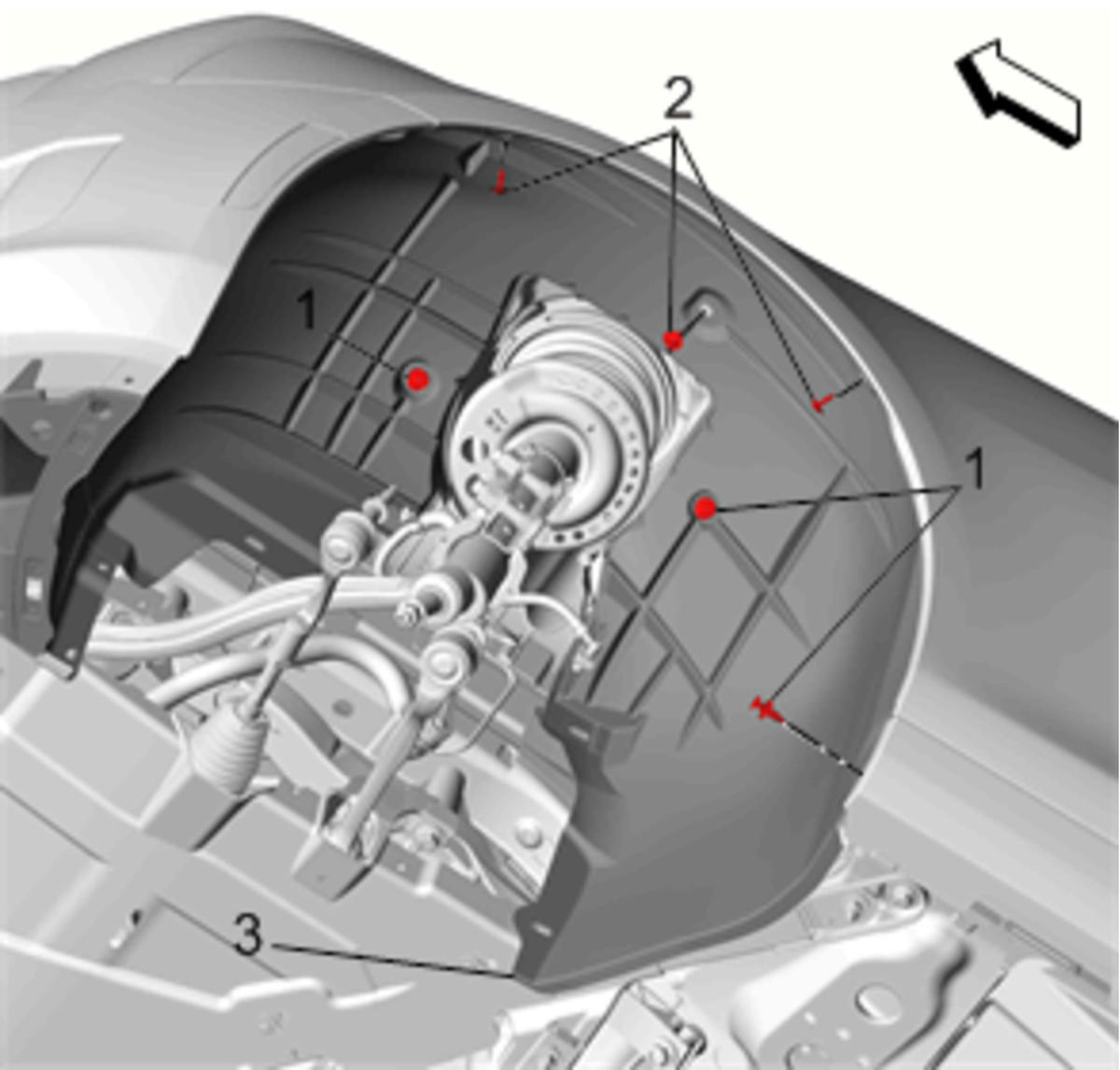

    Fig 1: Front Wheelhouse Liner Plastic Retainers
    GM3751060Courtesy of GENERAL MOTORS COMPANY
  1. Install the front wheelhouse liner (3) into position on the vehicle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the plastic retainers (1) and screws (2) to the front wheelhouse liner. Tighten the screws to 2.5 N.m (2 lb ft).

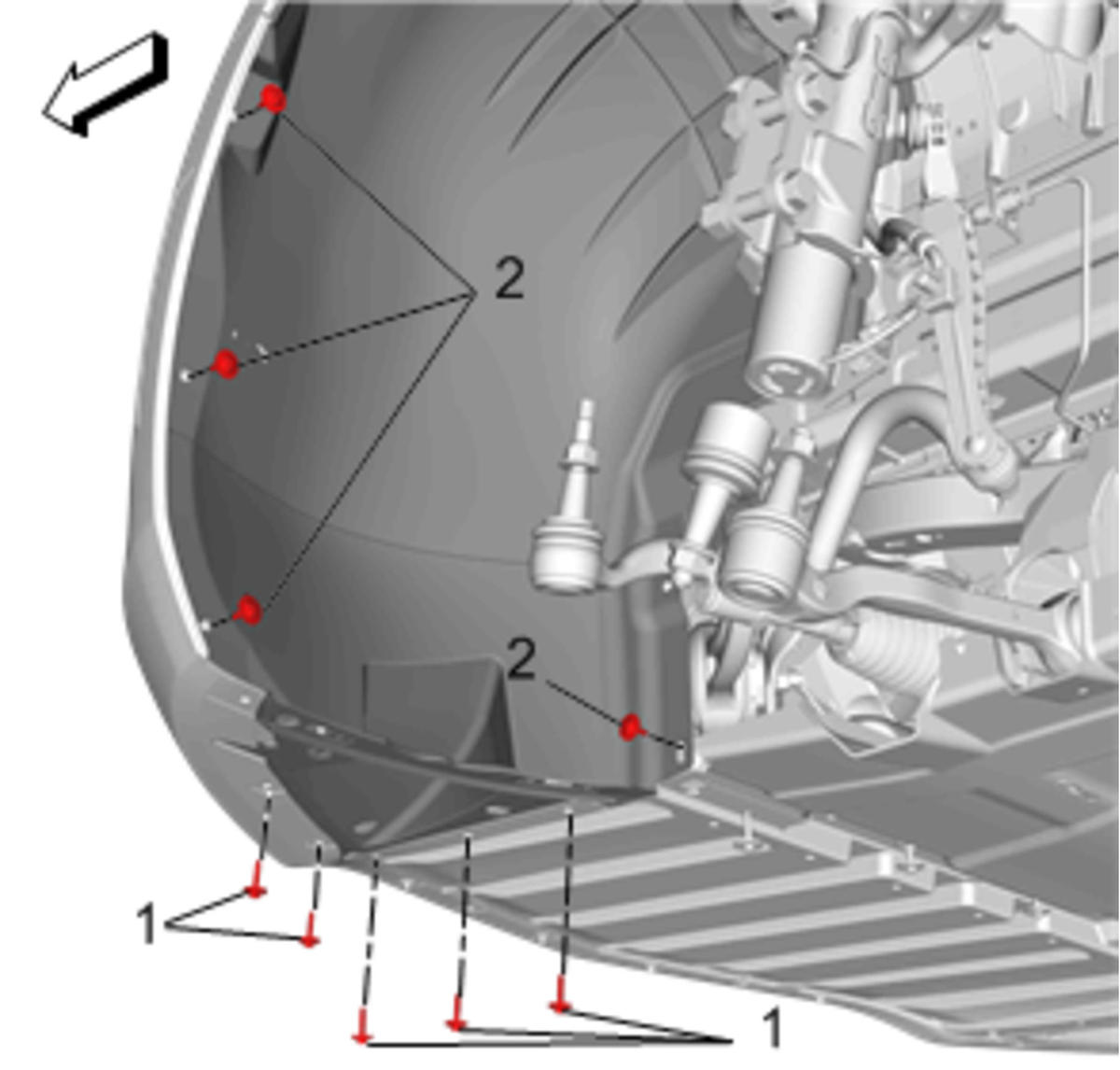

    3. Fig 2: Front Wheelhouse Liner Screws
    GM3751050Courtesy of GENERAL MOTORS COMPANY
  3. Install the front extension fasteners (1) and tighten to 5 N.m (44 lb in).
  4. Install the front wheelhouse liner screws (2) and tighten to 2.5 N.m (22 lb in).
  5. Install the front wheelhouse splash shield. Refer to Front Wheelhouse Splash Shield Replacement (All Wheel Drive) .
  6. Install the front tire air deflector. Refer to Front Tire Front Air Deflector Replacement .
  7. Install the front tire. Refer to Tire and Wheel Removal and Installation (Non V-Series) .
  8. Lower the vehicle.
