Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Front Cradle Shear Plate (Left Side LF4)
    GM4010661Courtesy of GENERAL MOTORS COMPANY
  1. Remove Front Cradle Shear Plate (3)Front Cradle Shear Plate Replacement (V Series)

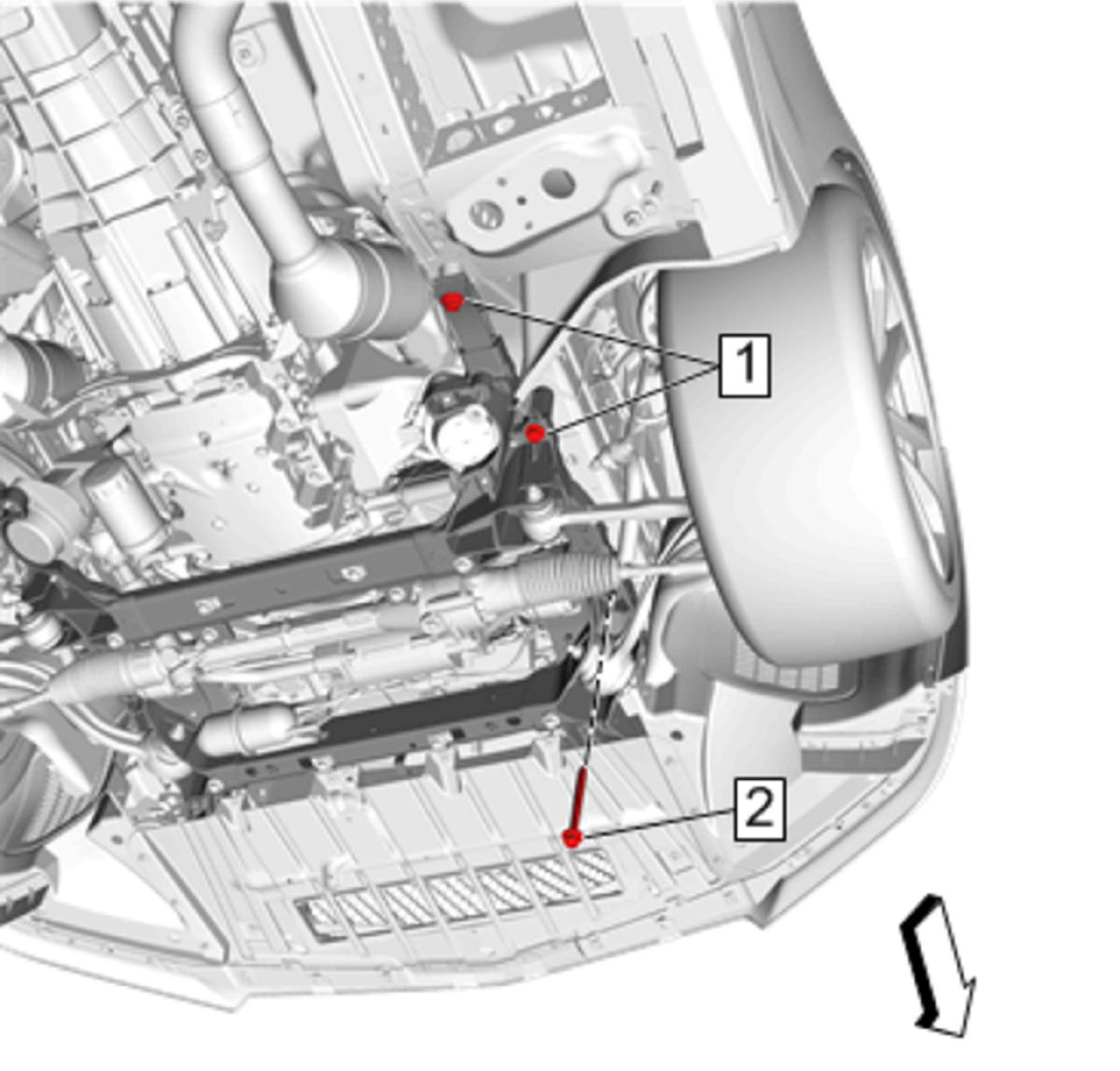

    2. Fig 2: Drivetrain and Front Suspension Cradle Bolts
    GM4532648Courtesy of GENERAL MOTORS COMPANY
  2. Remove Drivetrain and Front Suspension Cradle Front Bolt (2)
  3. Loosen Drivetrain and Front Suspension Cradle Bolt (1)
  4. Lower the vehicle.
    5. Fig 3: Radiator Outlet Hose And Clamp
    GM4044993Courtesy of GENERAL MOTORS COMPANY
  5. Remove Radiator Outlet Hose (2)Radiator Outlet Hose Replacement (LF4)

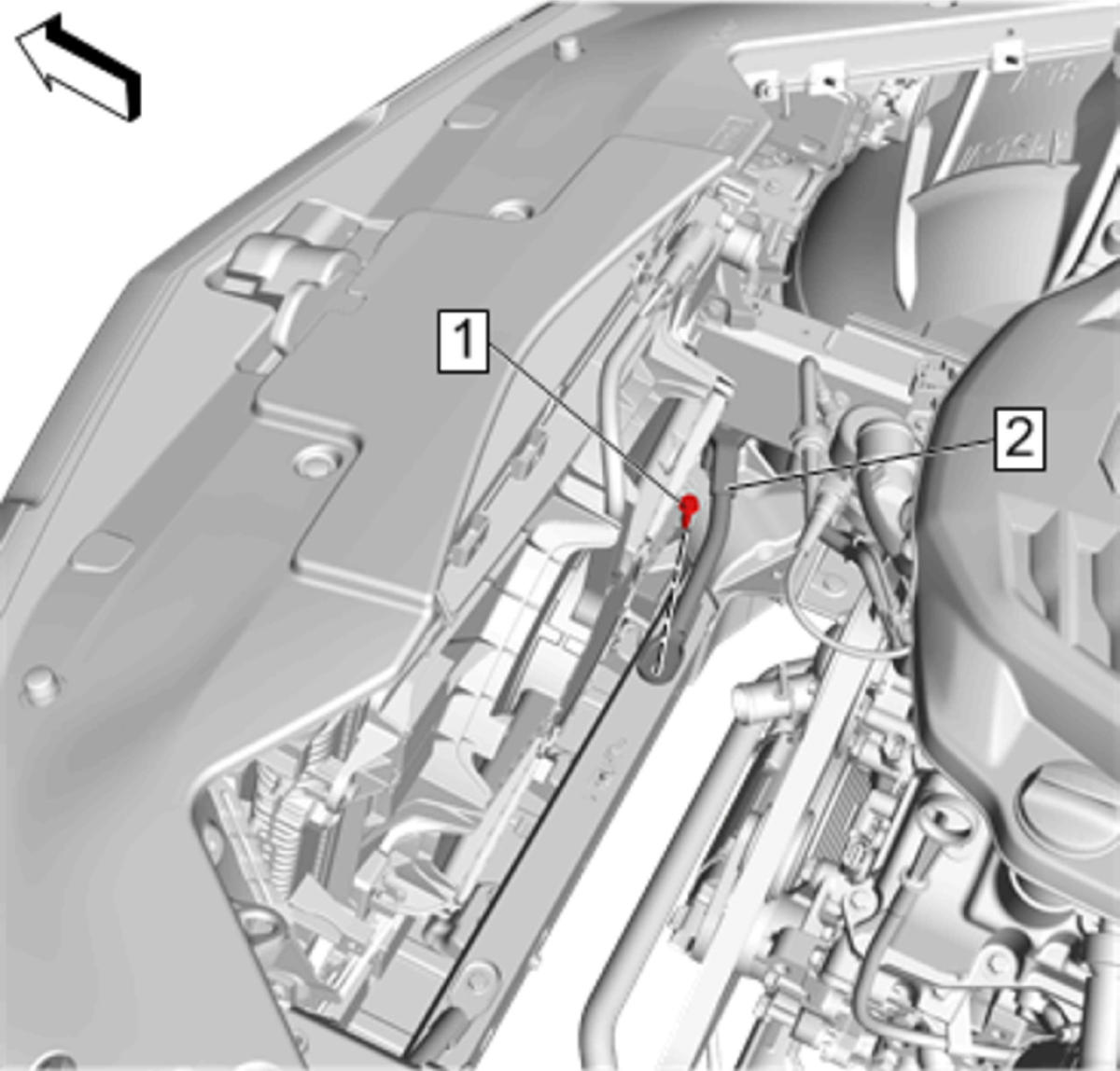

    6. Fig 4: Front Crossmember Brace
    GM4532649Courtesy of GENERAL MOTORS COMPANY
  6. Remove Front Crossmember Brace Bolt (1)
  7. Remove Front Crossmember Brace (2)
