Front Crossmember Brace Replacement (RWD - LTG/LCV)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

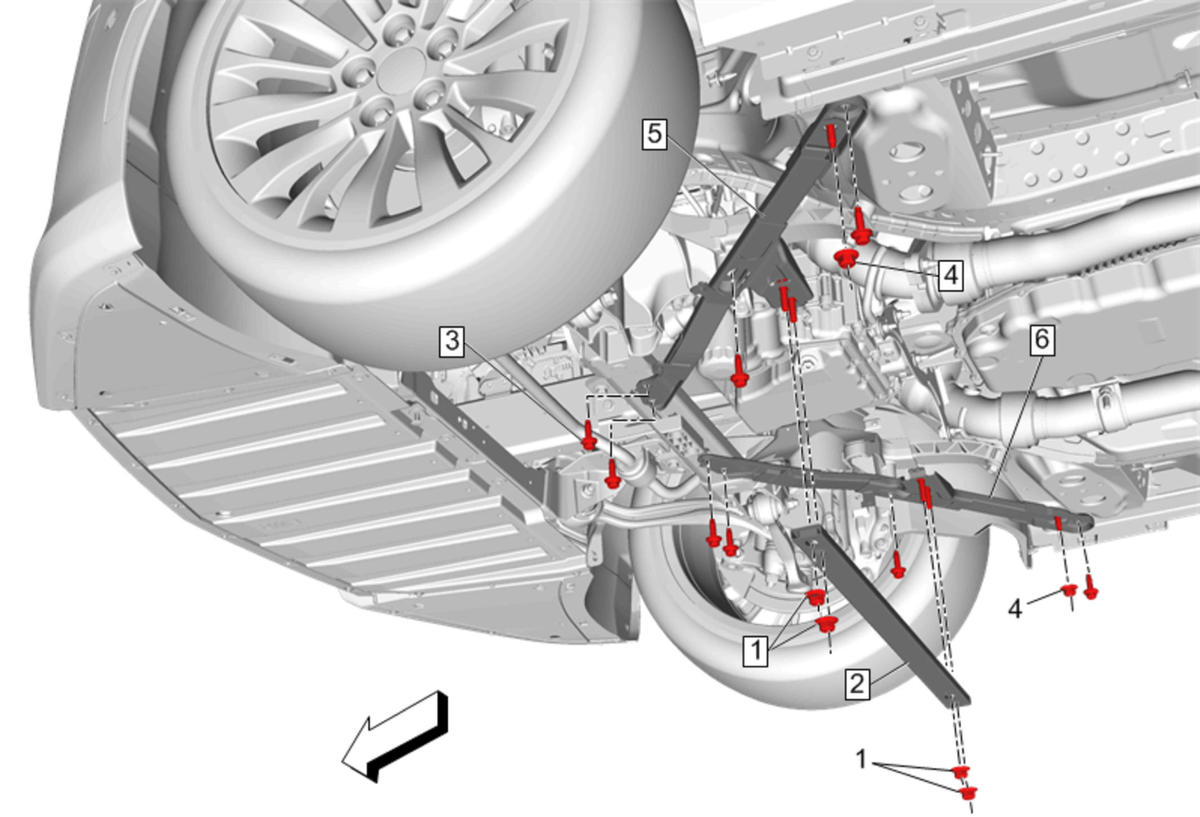

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Compartment Lower Noise Shield Replacement (All Wheel Drive) |
|
| 1 | Front Crossmember Brace Nut (Qty: 4)
CAUTION:
Refer to Fastener Caution Tighten 50 N.m (37 lb ft) |
| 2 | Front Crossmember Brace |
| 3 | Front Crossmember Brace Bolt (Qty: 8) Tighten 50 N.m (37 lb ft) |
| 4 | Front Crossmember Brace Nut (Qty: 2) Tighten 50 N.m (37 lb ft) |
| 5 | Front Crossmember Brace-Left Side |
| 6 | Front Crossmember Brace-Right Side |
